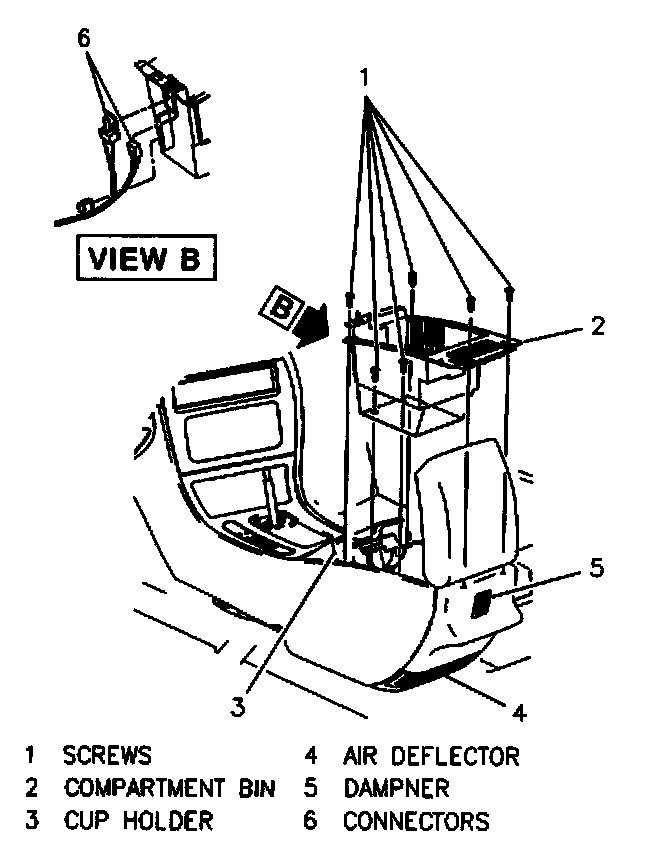

Bin Assembly

Console Compartment Bin:

REMOVE OR DISCONNECT
1. Screws (1) from bin.
2. Carefully pull out console bin.
3. Electrical connectors.

INSTALL OR CONNECT
1. Electrical connectors.
2. Console bin into console.
3. Screws (1).
