Rear Body Mount Replacement

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the tires and the wheels.
3. Use a block of wood at least seven inches long in order to support the exhaust and the rear of the support assembly.
4. Remove the four exhaust hangers.
5. Remove the two rear support assembly bolts and lower the support assembly and exhaust together.

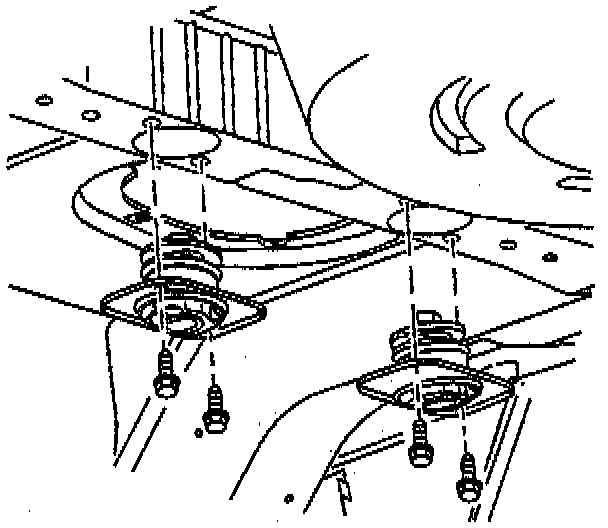

6. Remove the two bolts and the rear body mount.

INSTALLATION PROCEDURE

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Install the rear body mount and the two bolts ensuring that OUT is toward the outboard of the vehicle.

Tighten
Tighten the bolts to 51 Nm (38 ft. lbs.).

2. Raise and support the assembly and the exhaust.
3. Install the two bolts that secure the support assembly to the body of the vehicle.

Tighten
Tighten the bolts to 165 Nm (122 ft. lbs.).

4. Install the four exhaust hangers
5. Install the tires and the wheels.

Tighten
Tighten the wheel nuts to 140 Nm (100 ft. lbs.).

6. Lower the vehicle.
