Disc Select (CD Changer)

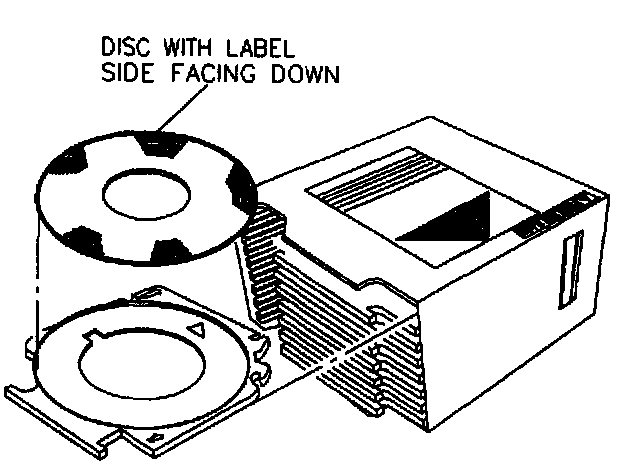

Loading CD Changer Magazine:

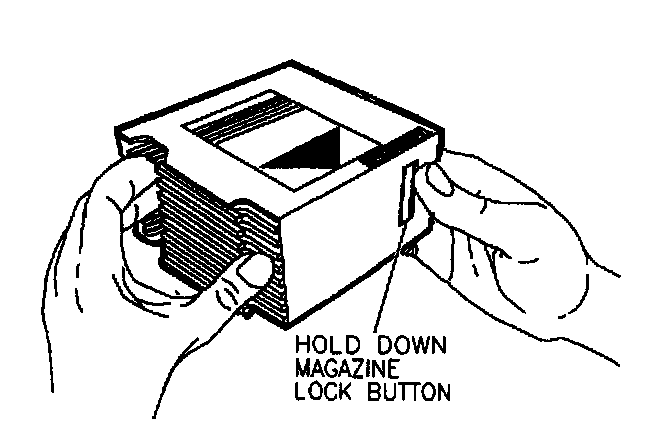

Removing Discs From CD Changer Magazine:

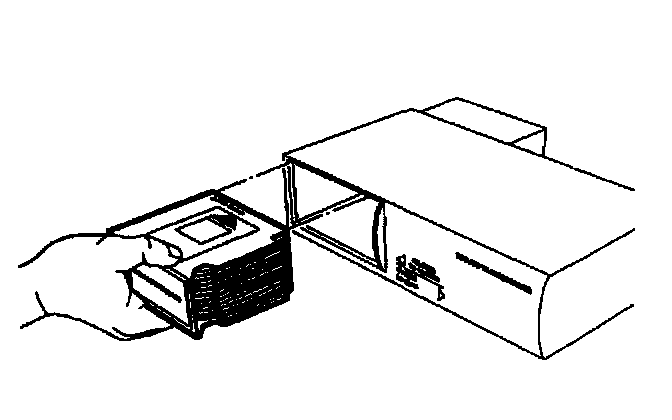

Loading Disc Magazine Into CD Changer:

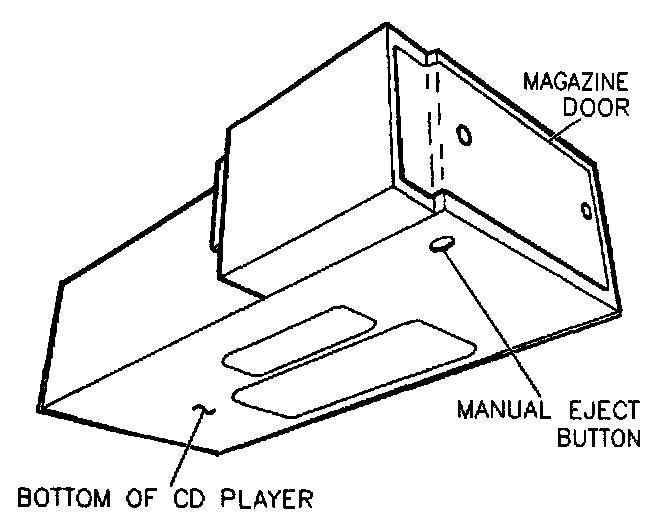

Cd Changer Magazine Manual Eject Button:

For CD changer applications, the radio PROG (program) button will function as disc select when in the CD mode. Each momentary button depression will increment the disc number by one, starting from the presently selected disc or at the lowest numbered disc, if no disc had been previously selected. The disc count will wrap back to the first available disc after the last disc is selected.

Only cartridge slot numbers with discs installed will be able to be selected.

The disc number along with the track number will be displayed, and audio will be muted during the selection process.

The disc and track numbers will always be displayed simultaneously and will remain displayed for 5 seconds after disc selection is made.

This function is replicated on models equipped with Steering Wheel Controls.
