Alarm Module: Service and Repair

When replacing the PASS-Key� II theft deterrent module it is not necessary to match the replacement PASS-Key� II theft deterrent module to the current ignition key. The replacement PASS-Key� II theft deterrent module learns the current ignition key code (resistance value) when the ignition switch is turned to RUN. The module learns the ignition key code only once.

Important
^ The ignition key code is learned permanently, so caution must be used to ensure that a unwanted key code is not learned.

If a fault is detected in the system wiring, a defective key is used, or the replacement module does not learn the ignition key code the SECURITY indicator flashes when the ignition switch is in RUN position.

PASS-Key(R) II Theft Deterrent Module:

REMOVE OR DISCONNECT
1. Right sound insulator.
2. HVAC programmer bracket.
3. Electrical connector.

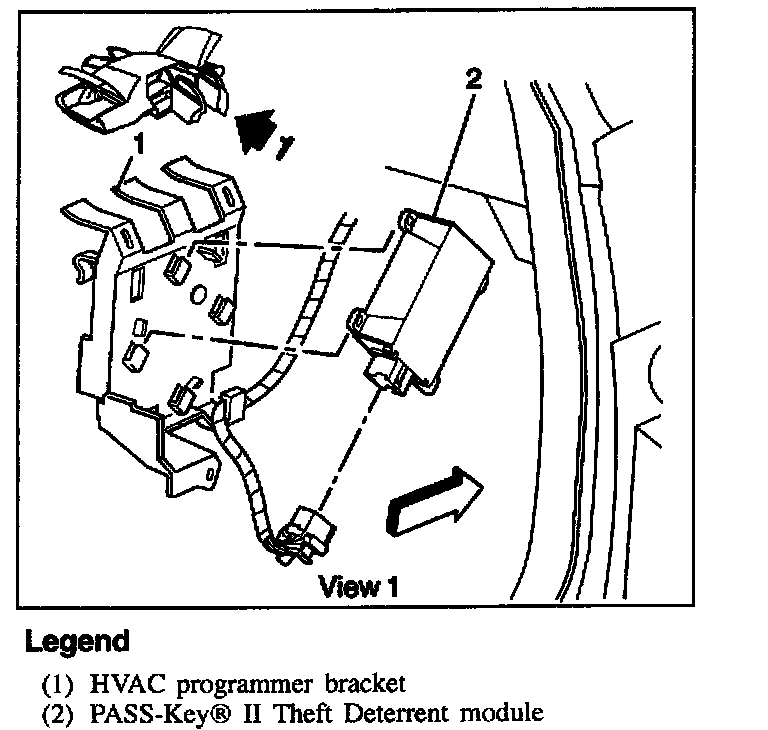

4. PASS-Key(R) II theft deterrent module from bracket by sliding out.

INSTALL OR CONNECT
1. PASS-Key(R) II theft deterrent module by sliding into mounting bracket.
2. Electrical connector.
3. HVAC programmer bracket
