P1860

Diagnostic Chart:

CIRCUIT DESCRIPTION

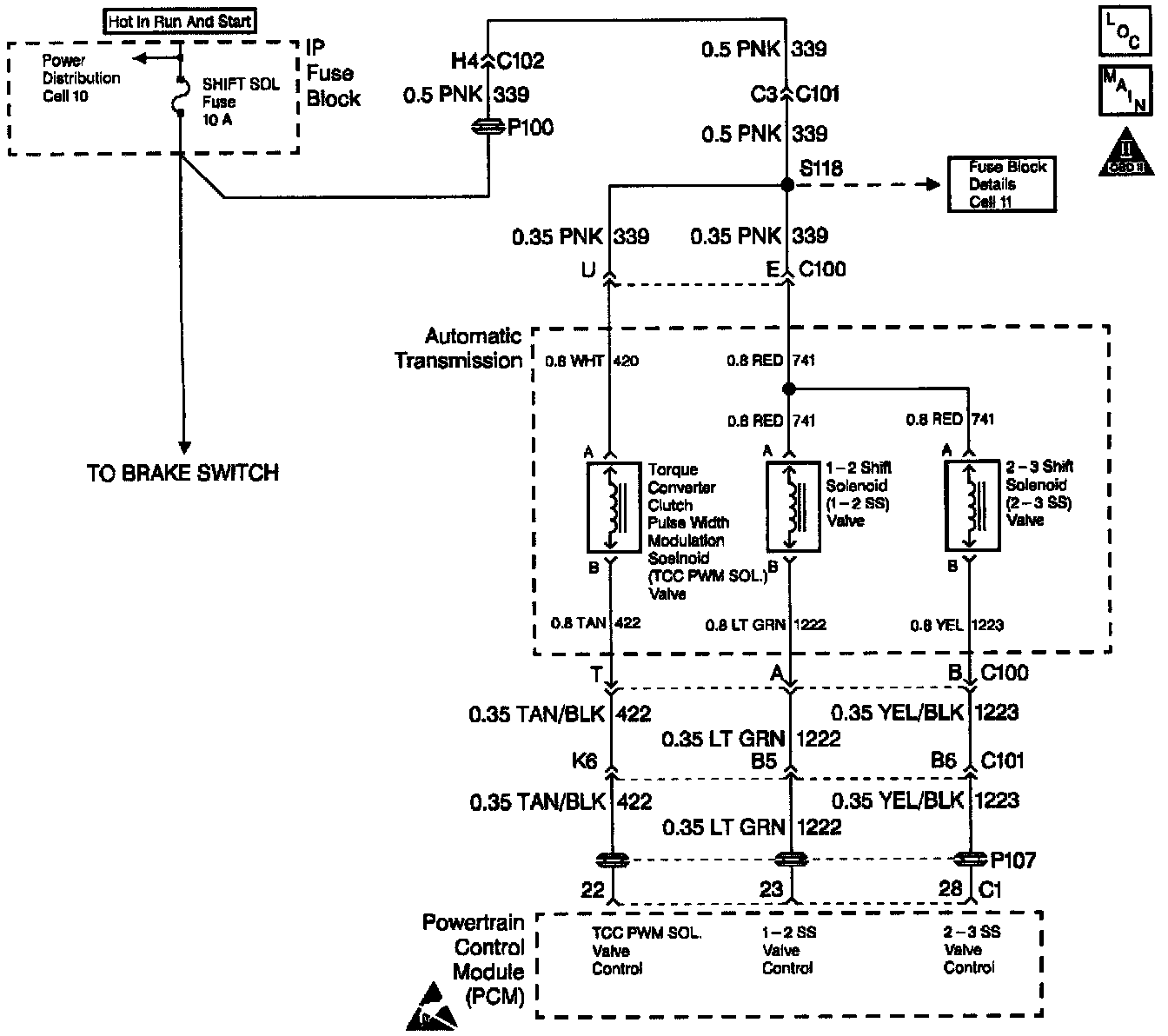

Ignition voltage is provided to the Torque Converter Clutch Pulse Width Modulation Solenoid Valve (TCC PWM Sol. Valve). The Powertrain Control Module (PCM) controls the ON and OFF time of the solenoid by providing a ground through the Output Driver Module (ODM) B. The PCM uses a pulse width modulation (PWM) duty cycle, in order to control application and release of the Torque Converter Clutch (TCC). When the solenoid is commanded OFF, the PCM senses high volts. When the solenoid is commanded ON, the PCM senses low volts.

When the PCM detects voltage limits that do not meet the calibration, then DTC P1860 sets. DTC P1860 is a Type A DTC.

CONDITIONS FOR SETTING THE DTC

^ No ODM DTC P1650.

^ The engine run time is greater than 5 seconds.

^ The TCC PWM Sol. Valve duty cycle is less than 10% or greater than 85%.

^ The PCM detects an open, a short to ground, or a short to power on the TCC PWM Sol. Valve circuit within 5 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The PCM illuminates the Malfunction Indicator Lamp (MIL).

^ SERVICE ENGINE SOON displays on the Driver Information Center (DIC).

^ The PCM inhibits TCC engagement.

^ The PCM inhibits 4th gear when the transmission is in hot mode. DTC P1860 is stored in the PCM history.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The PCM turns OFF the MIL after three consecutive trips without a failure reported.

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.

^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

DIAGNOSTIC AIDS

^ Inspect the wiring for poor electrical connections at the PCM, the transmission 20-way connector, the 2-way TCC PWM Sol. Valve connector and all other circuit connecting points for the following conditions:

- A bent terminal

- A backed out terminal

- A damaged terminal

- Poor terminal tension

- A chafed wire

- A broken wire inside the insulation

- Moisture intrusion

- Corrosion

^ Ensure that the transmission fluid is at the proper level.

^ When diagnosing for an intermittent short or open, massage the wiring harness while watching the test equipment for a change.

TEST DESCRIPTION

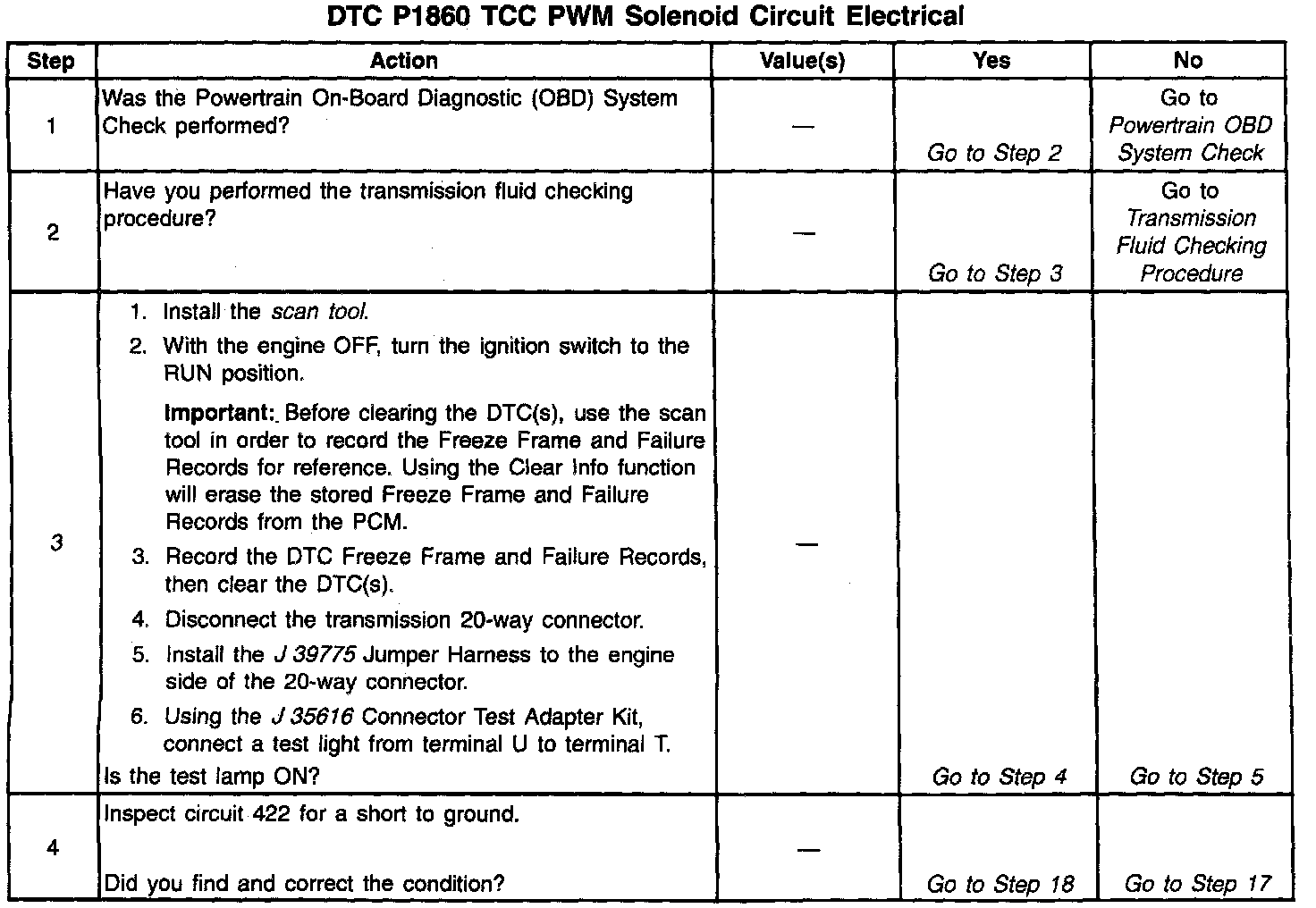

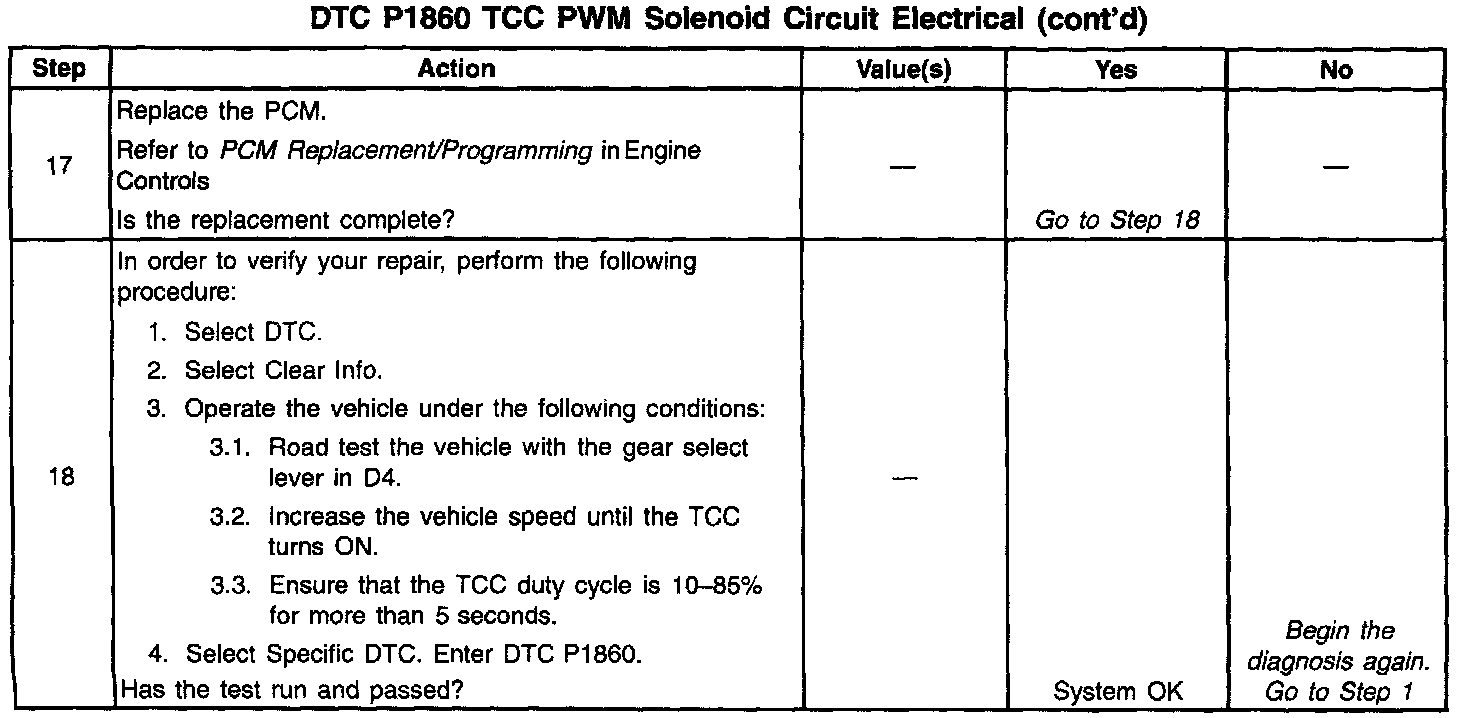

The numbers below refer to the step numbers on the Diagnostic Table.

3. This step verifies power to terminal U of the engine wiring harness. If the test lamp lights, inspect circuit 422 for a short to ground.

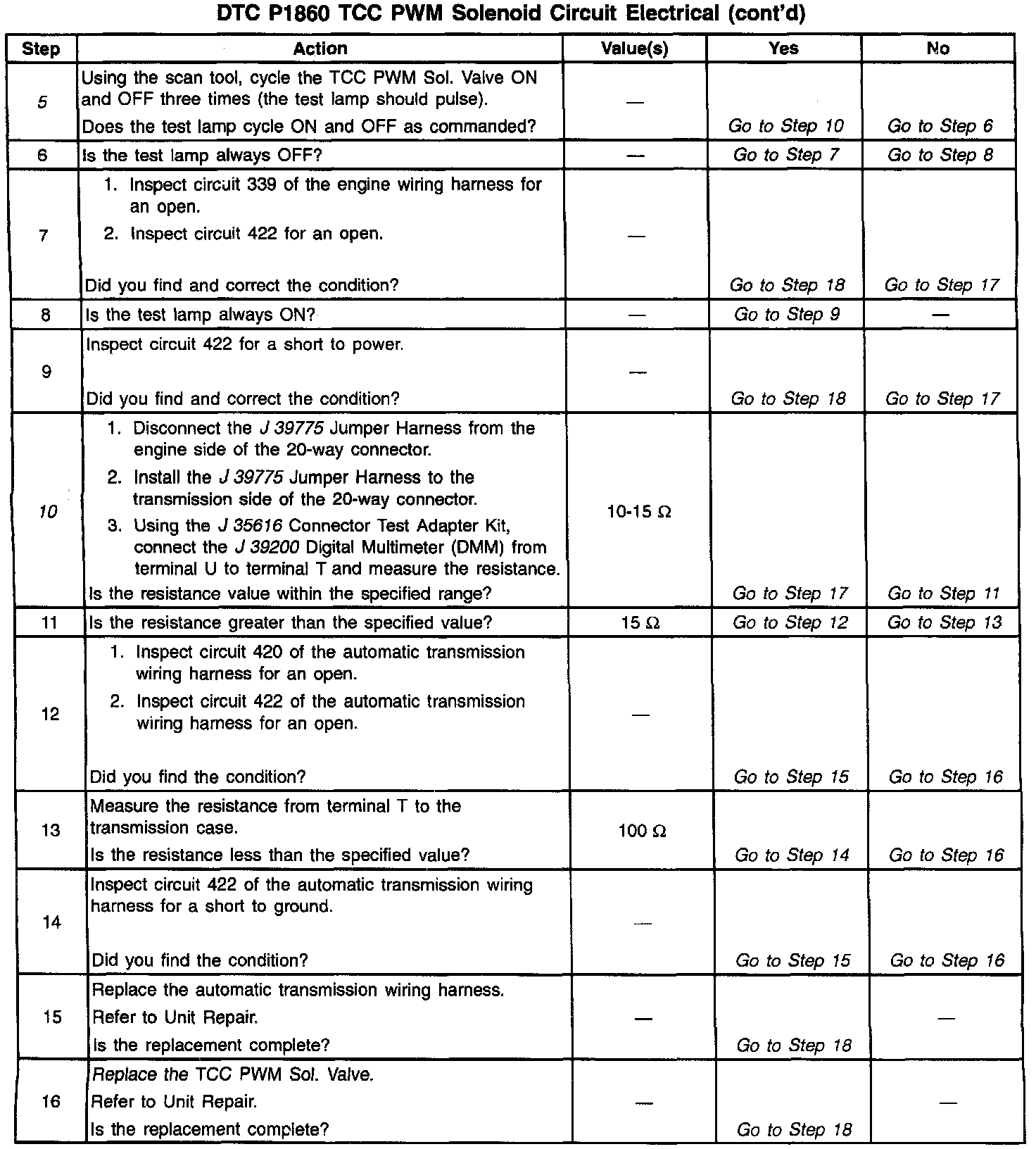

5. This step uses the scan tool in order to cycle the TCC PWM Sol. Valve ON and OFF.

10. This step verifies that the TCC PWM Sol. Valve is within resistance specifications.
