P1637

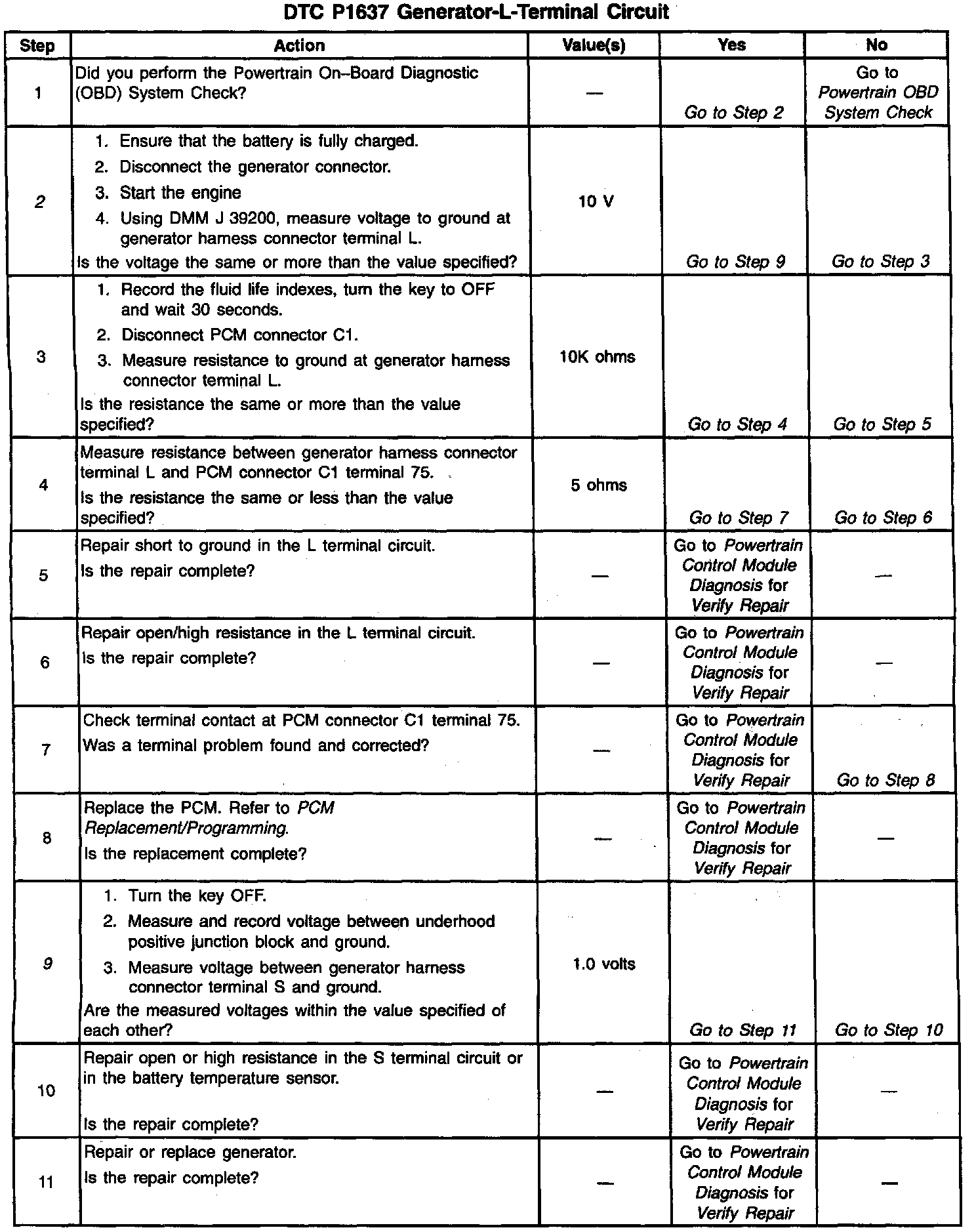

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The PCM monitors the voltage level on the L-terminal circuit while the generator is commanded ON and expects to see approximately B+. It the PCM monitors a low voltage level on CKT 225 at PCM connector C1 terminal 75 indicating that the generator is turned OFF, DTC P1637 is set.

CONDITIONS FOR RUNNING THE DTC

Engine running.

CONDITIONS FOR SETTING THE DTC

The state of the L-terminal feedback is indicating the generator is not charging, low input voltage, for 15 seconds.


ACTION TAKEN WHEN THE DTC SETS

^ PCM turns ON the low voltage warning lamp.

^ The Malfunction Indicator Lamp (MIL) will not illuminate.

^ The PCM will command a message to be displayed.

^ The PCM may record operating conditions at the time the diagnostic fails. This information will be stored in the Failure Records.

CONDITIONS FOR CLEARING THE MESSAGE/DTC

^ The PCM will turn the message OFF after one run and pass of the diagnostic test.

^ A History DTC will clear after forty consecutive warm-up cycles with no failures of any non-emission related diagnostic test.

^ A Last Test Failed (current) DTC will clear when the diagnostic runs and does not fail.

^ PCM battery voltage is interrupted.

^ Using a Scan tool.


DIAGNOSTIC AIDS

DTC P1637 and a low battery charge may be caused by a generator fault. Such as a shorted output diode, malfunctioning regulator, open or shorted rotor, or open sense lead. Refer to Starting and Charging for further information and generator diagnosis. This DTC will not set if circuit 225 is shorted to voltage but may cause a parasitic load on the battery with the key OFF.


TEST DESCRIPTION

Number(s) below refer to the step number(s) on the Diagnostic Table.

2. Checking if PCM/wiring or generator/S terminal wiring is at fault.

9. Checking if problem is S terminal circuit problem or generator problem.
