P0719

Diagnostic Chart:

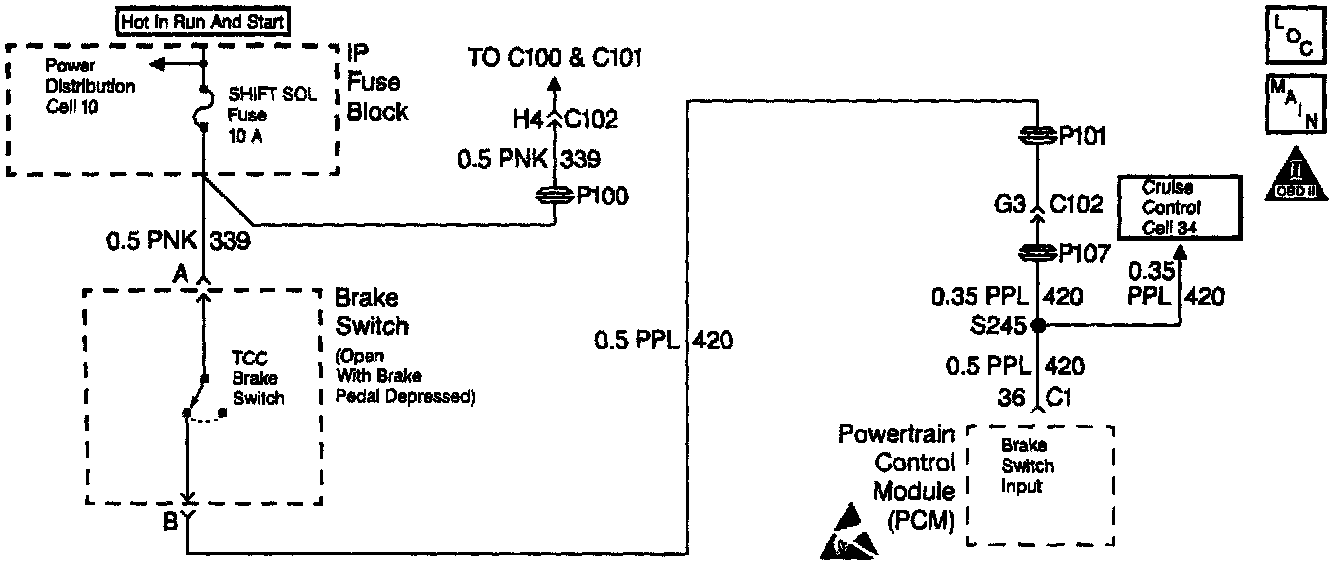

CIRCUIT DESCRIPTION

The Torque Converter Clutch (TCC) brake switch is used to indicate the status of the brake pedal (applied or released).

When the Powertrain Control Module (PCM) detects a status change on the brake lamp switch and the extended travel brake switch input without a transition on the TCC brake switch input, then DTC P0719 sets. DTC P0719 is a Type C DTC.

CONDITIONS FOR SETTING THE DTC

^ No VSS DTCs P0502 or P0503.

^ No extended travel or stop lamp DTCs P1574 or P1575.

^ No loss of PCM serial data DTC P1602.

^ The traction control or ABS module has not tailed.

^ The difference in vehicle speed and a non-driven wheel speed is less than 10 km/h (6 mph).

^ The TCC brake switch input is at 0 volts.

^ DTC P0719 has not passed this ignition cycle.

^ The following conditions must occur 7 times within 15 minutes without a status change on the TCC brake input.

1. The vehicle speed is less than 8 km/h (5 mph).

2. The vehicle accelerates to 32 km/h (20 mph) taking longer than 2.5 seconds.

3. Then the vehicle speed remains above 32 km/h (20 mph) for 6 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

^ SERVICE ELECTRICAL SYSTEM displays on the Driver Information Center (DIC).

^ The PCM uses the extended travel brake switch input or the stop lamp switch input for TCC control.

^ The PCM disables garage shift adapts.

^ DTC P0719 is stored in the PCM history.

CONDITIONS FOR CLEARING THE DIC/DTC

^ The PCM turns OFF the DIC after three consecutive trips without a failure reported.

^ The brake switch input must indicate ignition volts for 2 seconds.

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.

^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

DIAGNOSTIC AIDS

^ Inspect the TCC brake switch for proper adjustment.

^ Check the customer's driving habits.

^ Inspect the wiring for poor electrical connections at the PCM, the brake switch connector and all other circuit connecting points for the following conditions:

- A bent terminal

- A backed out terminal

- A damaged terminal

- Poor terminal tension

- A chafed wire

- A broken wire inside the insulation

- Moisture intrusion

- Corrosion

^ When diagnosing for an intermittent short to ground, massage the wiring harness while watching the test equipment for a change.

TEST DESCRIPTION

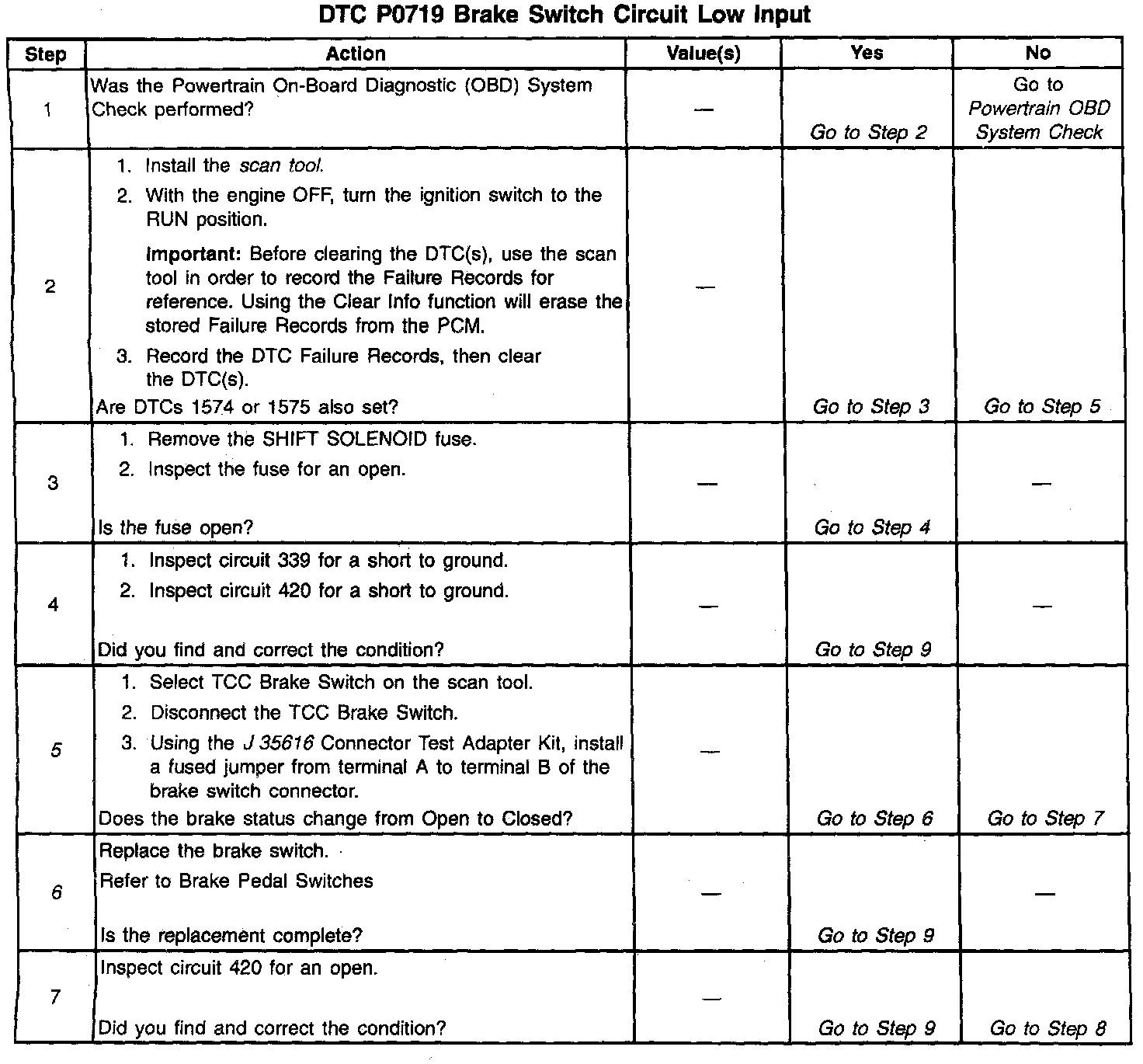

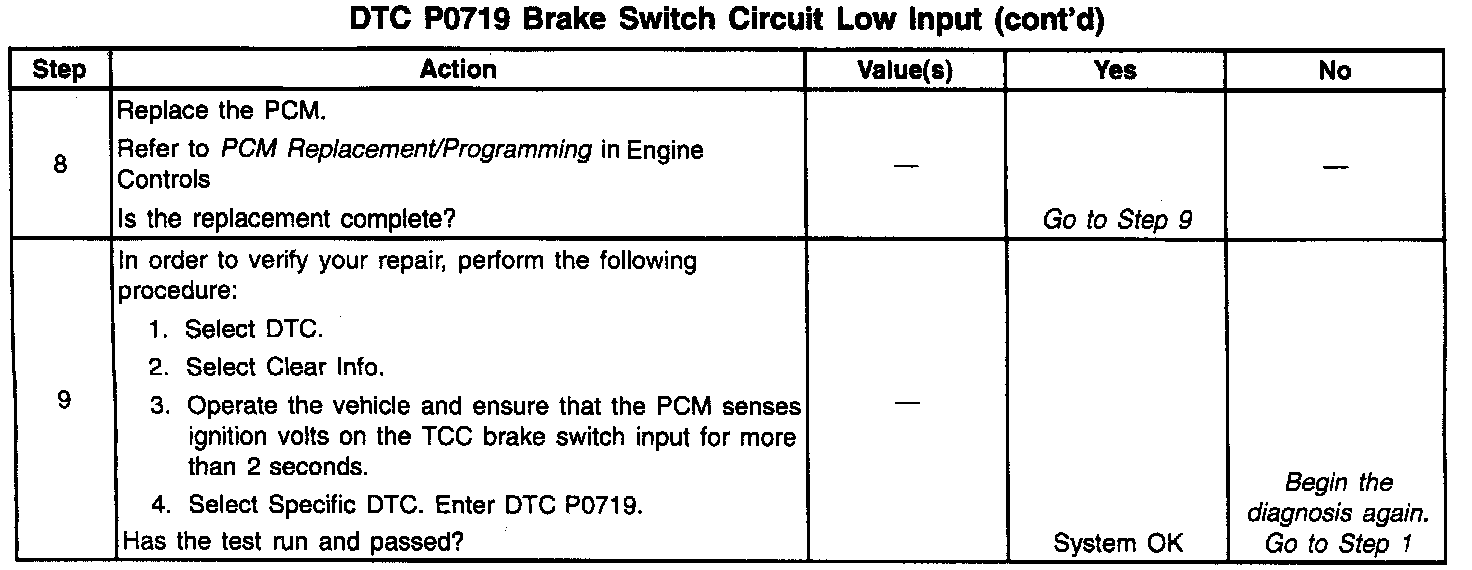

The numbers below refer to the step numbers on the Diagnostic Table.

5. This step isolates the brake switch as the source for setting the DTC.

6. If the brake switch was adjusted properly, then replace the brake switch.
