Radio, Stereo, and Compact Disc

File In Section: 9 - Accessories

Bulletin No.: 64-90-04

Date: February, 1996

INFORMATION

Subject:
Error Codes on Radio Display - Their Cause and Corrective Action

Models:
1995-96 Buick Regal, Park Avenue, Roadmaster, LeSabre
1996 Buick Skylark, Riviera
1996 Cadillac Eldorado, Seville, Concours
1995-96 Chevrolet Monte Carlo, Lumina
1996 Chevrolet Cavalier, Lumina Minivan
1995-96 Oldsmobile Ninety Eight, Eighty Eight, Cutlass Supreme, Aurora
1996 Oldsmobile Achieva, Silhouette
1995-96 Pontiac Firebird, Bonneville, Sunfire, Grand Prix
1996 Pontiac Grand Am, Trans Sport
1995-96 Chevrolet and GMC C/K Models
1996 Chevrolet and GMC G, M Models

STARTING IN 1995, THE FAMILY STYLE RADIOS AS WELL AS THE NEW 12 DISC-LLAI (Low level audio interface) CHANGERS AND THE 10 DISC-FMI (FM interface) CHANGERS HAVE ERROR CODES TO HELP DIAGNOSE PLAYBACK MEDIUMS. If ERR or E (and a number appears on a customer's radio display) it is obvious an error has occurred. The number may give you a clue to the problem and corrective action.

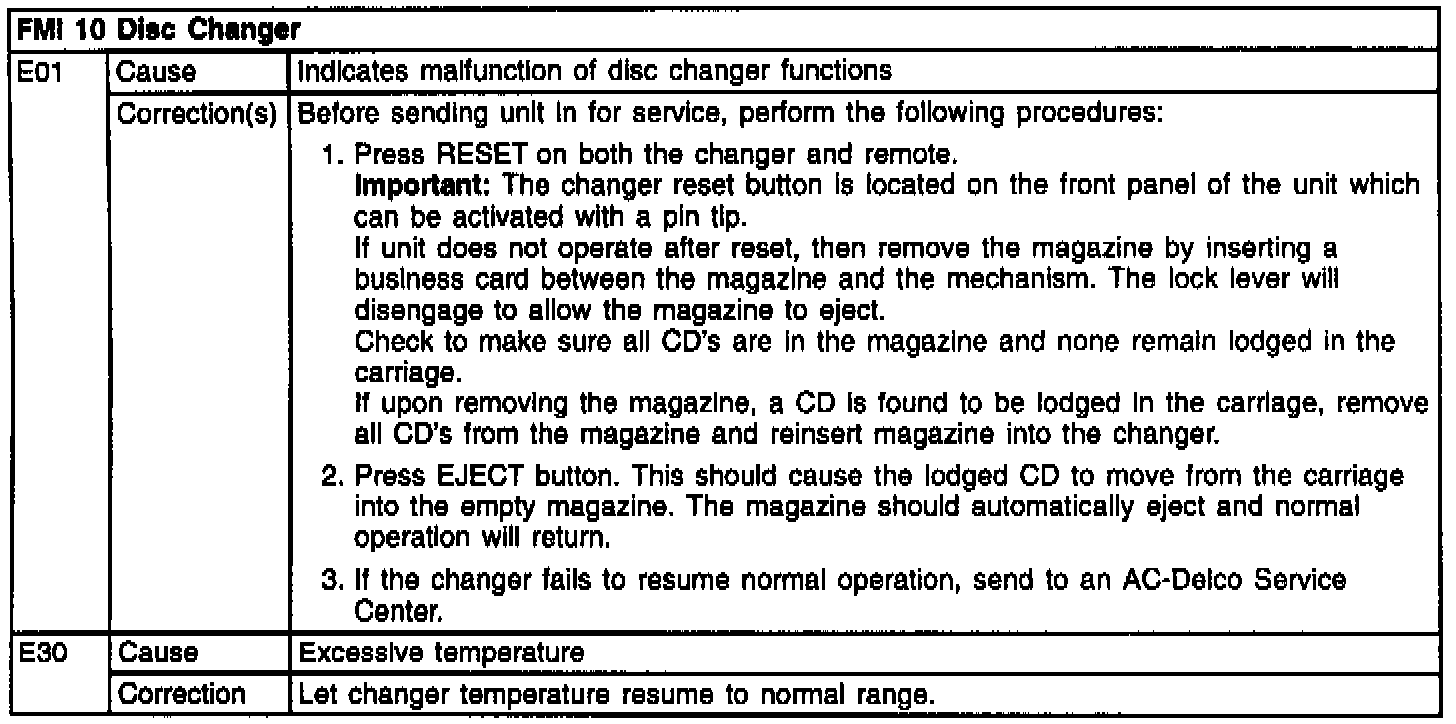

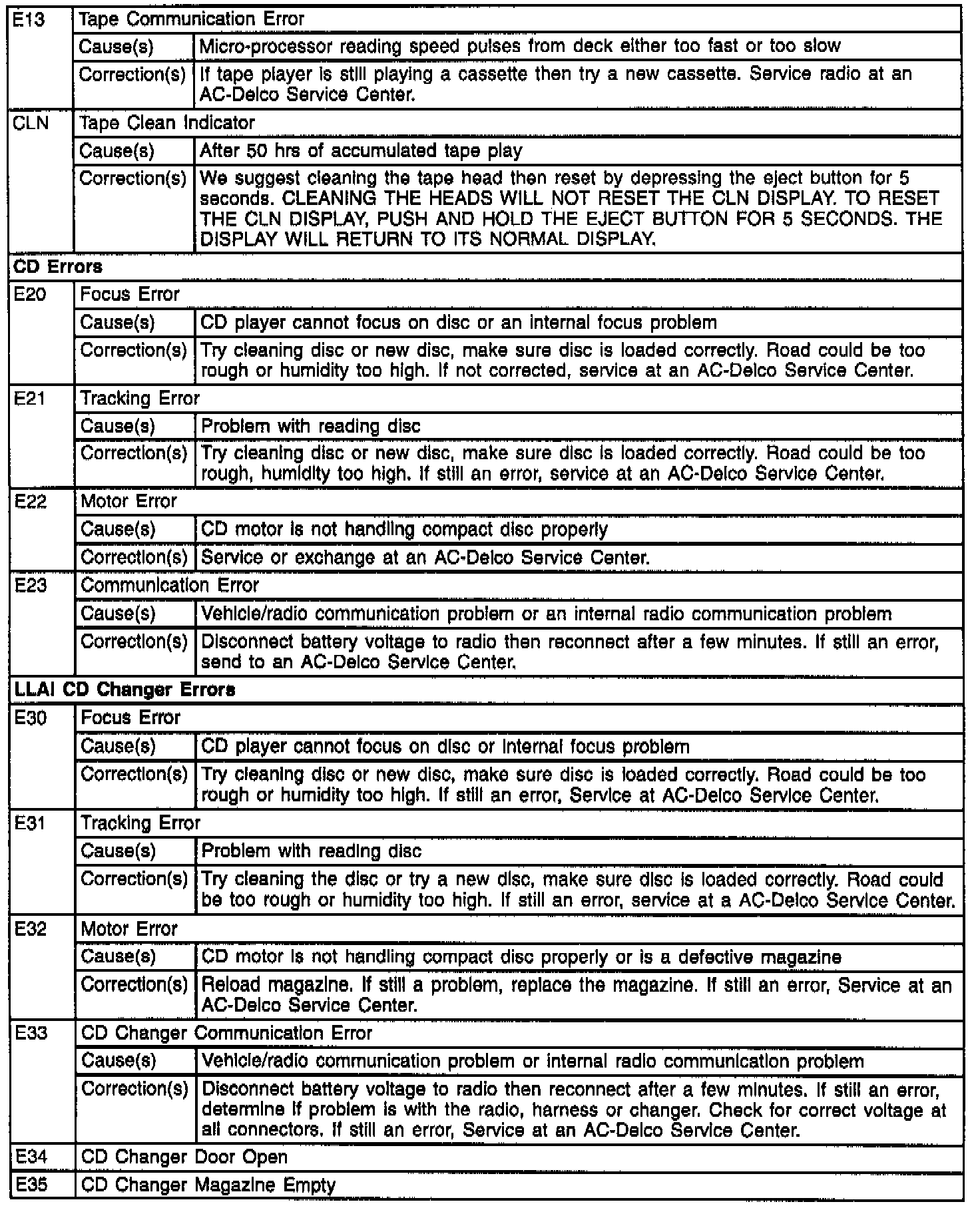

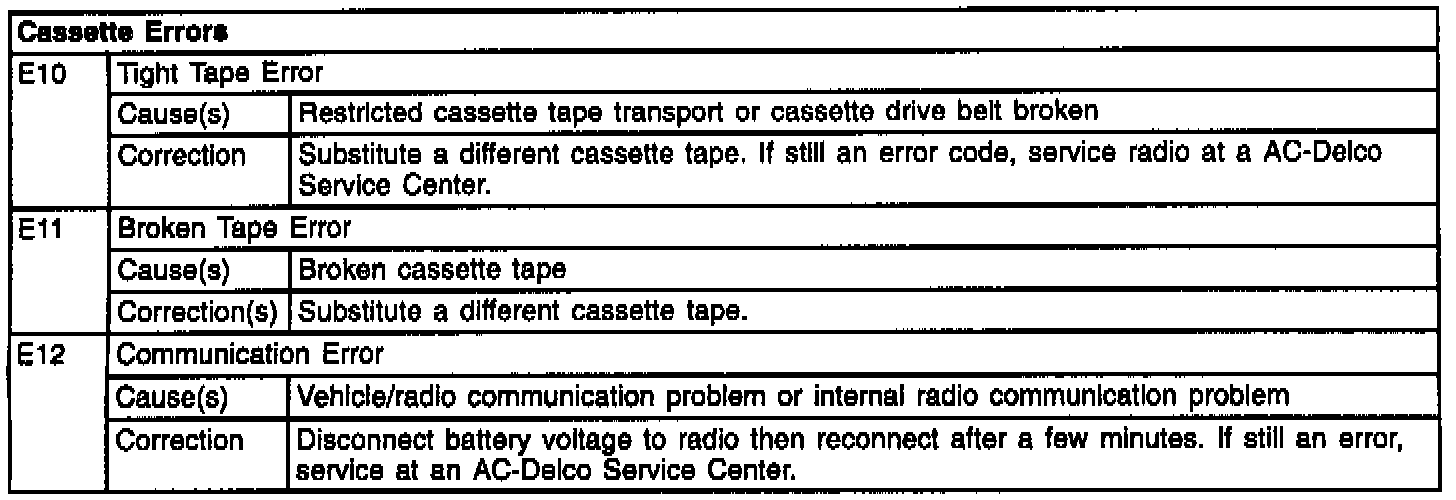

Above is a list of code numbers that may appear. Not all family radios have these codes and they are dependent on the model year.
