C1252

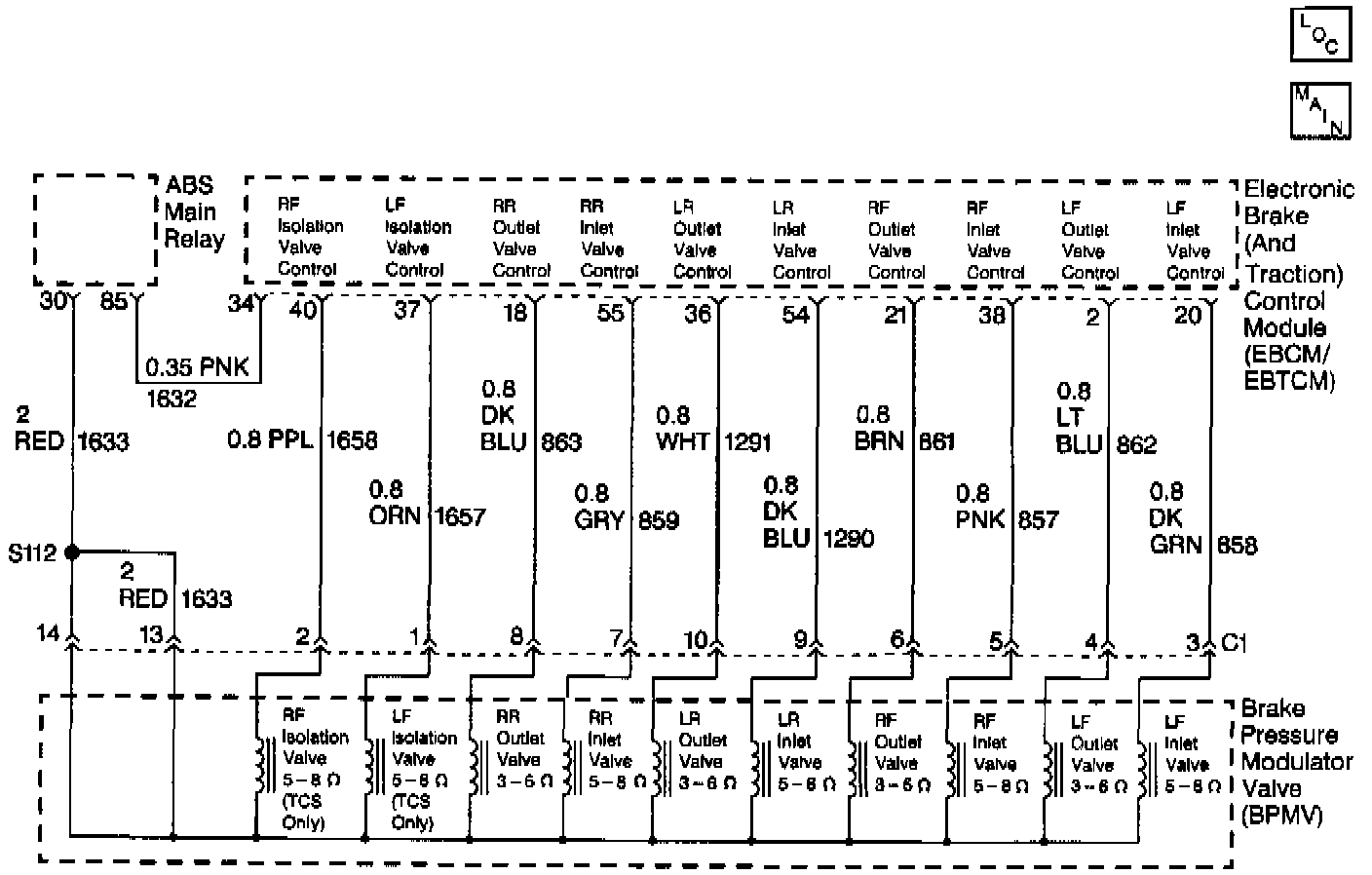

DTC C1252 Wiring Diagram:

DTC C1252:

CIRCUIT DESCRIPTION
The normally closed outlet valves operate similarly to the inlet valves. When the Electronic Brakes and Traction Control Module (EBCM/EBTCM) grounds an outlet valve, however, the valve opens instead of closes.

The EBCM/EBTCM opens an outlet valve for short periods in order to reduce pressure at the RR wheel.

CONDITIONS FOR SETTING THE DTC
The DTC C1252 sets when the EBCM/EBTCM detects an open or short to ground in the RR outlet valve circuit.

ACTION TAKEN WHEN THE DTC SETS
The following actions are taken when the DTC sets:
^ A malfunction DTC is stored
^ The ABS is disabled
^ The ANTILOCK indicator lamp is turned ON

CONDITIONS FOR CLEARING THE DTC
The DTC will clear under following conditions:
^ Conditions for the malfunction are no longer present. Use the Scan Tool Clear DTCs function.
^ 100 ignition switch key cycles have passed without detecting any malfunctions.

DIAGNOSTIC AIDS

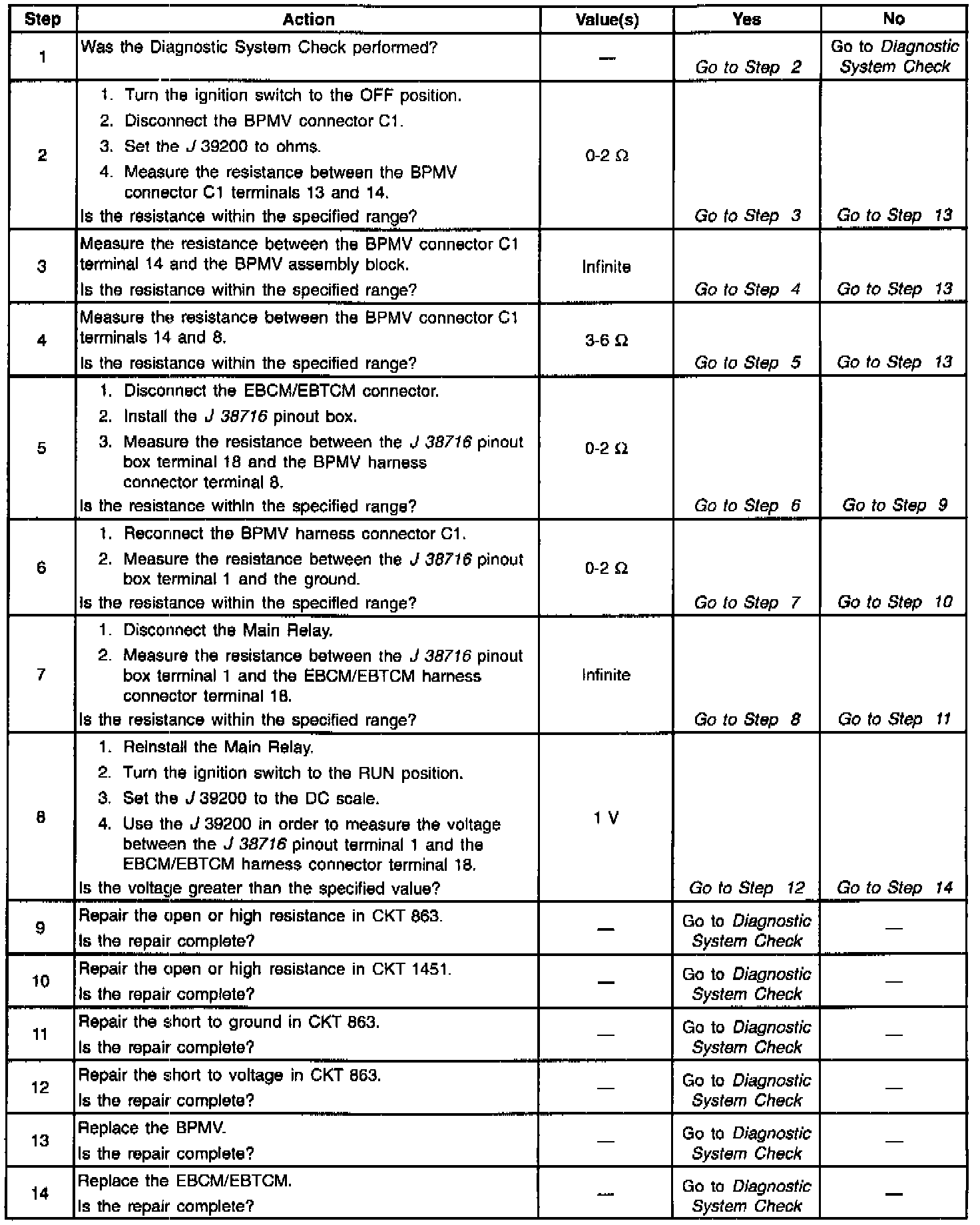

Perform a thorough inspection of the wiring and the connectors.

Failure to inspect wiring carefully may result in a misdiagnosis. A misdiagnosis may result in replacing parts without repairing the malfunction.
