B1019

Diagnostic Chart:

Circuit Description
When you first turn the ignition switch to the RUN position, the inflatable restraint Sensing and Diagnostic Module (SDM) performs tests to diagnose critical malfunctions within itself. Upon passing these tests IGNITION POSITIVE VOLTAGE, 23VLR and the deployment loop voltages are measured to make sure they are within their respective normal voltage ranges. The SDM monitors the voltages at DRIVER LOW terminal 3 and PASSENGER LOW terminal 4 to detect shorts-to-B+ in the inflator module circuits.

Conditions for Setting the DTC
^ The voltage at DRIVER LOW terminal 3 is less than 4.8 volts.
^ The voltage at PASSENGER LOW terminal 4 is more than 4.8 volts for 500 milliseconds.

The CONTINUOUS MONITORING test checks for this DTC. This test occurs when IGNITION POSITIVE VOLTAGE is within the normal operating voltage range.

Action Taken When the DTC Sets
^ The SDM sets a Diagnostic Trouble Code.
^ The SDM turns ON the AIR BAG warning lamp.

Conditions for Clearing the MIL/DTC
^ Current DTC
The voltage at PASSENGER LOW terminal 4 is less than 4.8 volts for 500 milliseconds.
^ History DTC
- You issue a scan tool CLEAR CODES command.
- Once 250 malfunction free ignition cycles have occurred.

Diagnostic Aids
A short to B+ in the inflatable restraint I/P module circuit can cause an intermittent condition. Inspect CKT 1403 and CKT 1404 carefully for cutting or chafing. Wiring pigtail damage requires replacement of the inflatable restraint I/P module. The diagnostic table directs the technician to note the entry value of PASSENGER SENSELO. Comparing the value of PASSENGER SENSELO can be helpful in determining if an intermittent condition exists. When measurements are requested in this table, use J 39200 Digital Multimeter with the correct terminal adapter from J 35616-A Connector Test Adapter Kit. When a check for proper connection is requested, refer to Intermittents and Poor Connections. Intermittent Problems
When a wire, connector or terminal repair is requested, use J 38125-A Terminal Repair Kit and refer to Wiring Repair.

Test Description

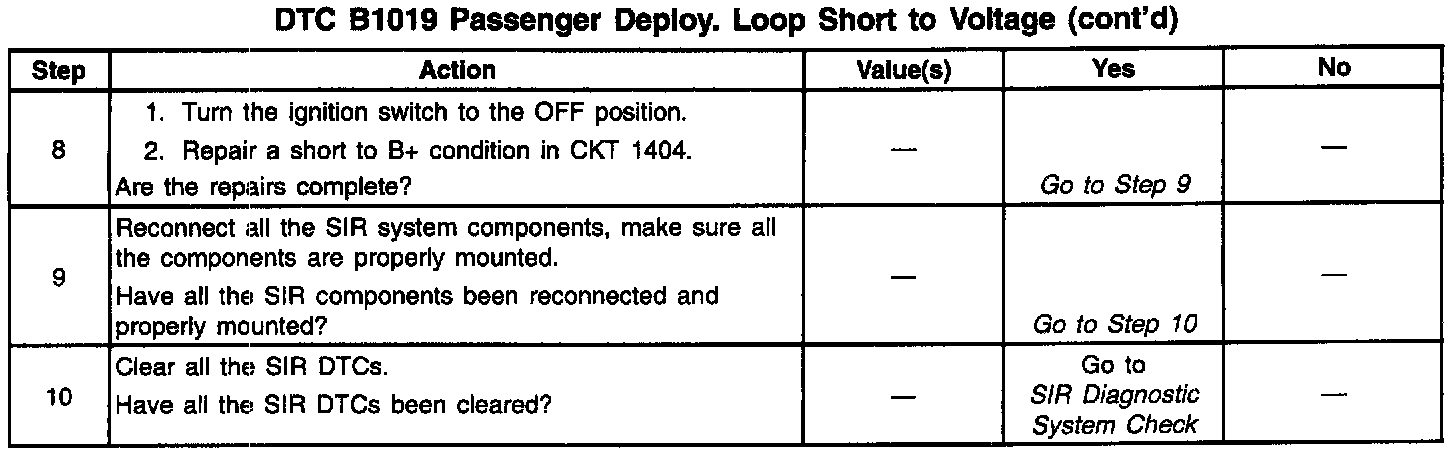

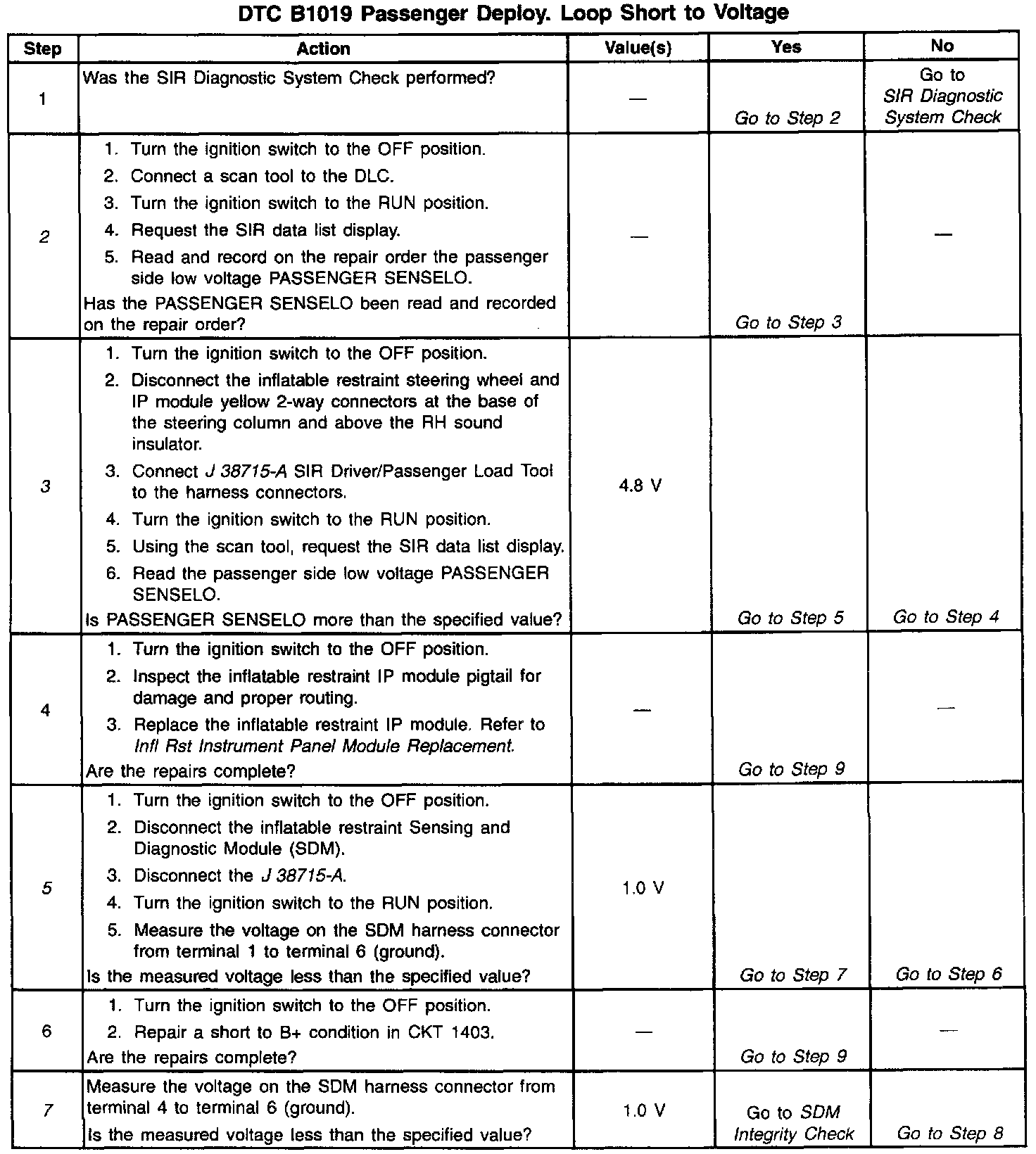

The numbers below refer to the step numbers on the diagnostic table:
2. This test determines the passenger side low voltage measured by the inflatable restraint Sensing and Diagnostic Module (SDM).
3. This test isolates the malfunction to one side of the inflatable restraint I/P module yellow 2-way connector.
5. This test determines whether the malfunction is in CKT 1403.
7. This test determines whether the malfunction is in CKT 1404.
