Starter Relay: Locations

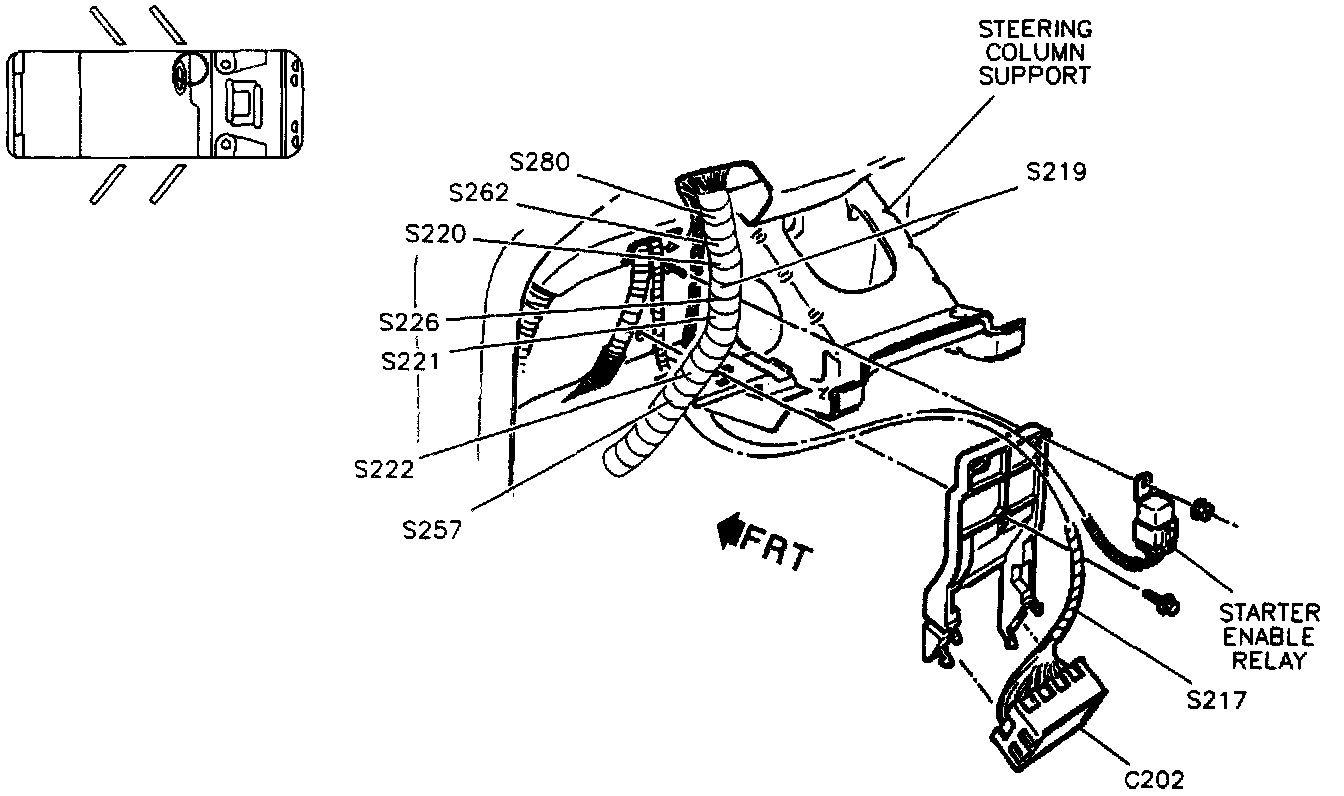

LH Side Of Steering Column Support:
The starter enable relay is located under the left side of the dash, above the fuse panel.
