Home >> Oldsmobile >> 1996 >> Ninety-Eight V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Intake Manifold

Fastener Tightening Specifications - Intake Manifold

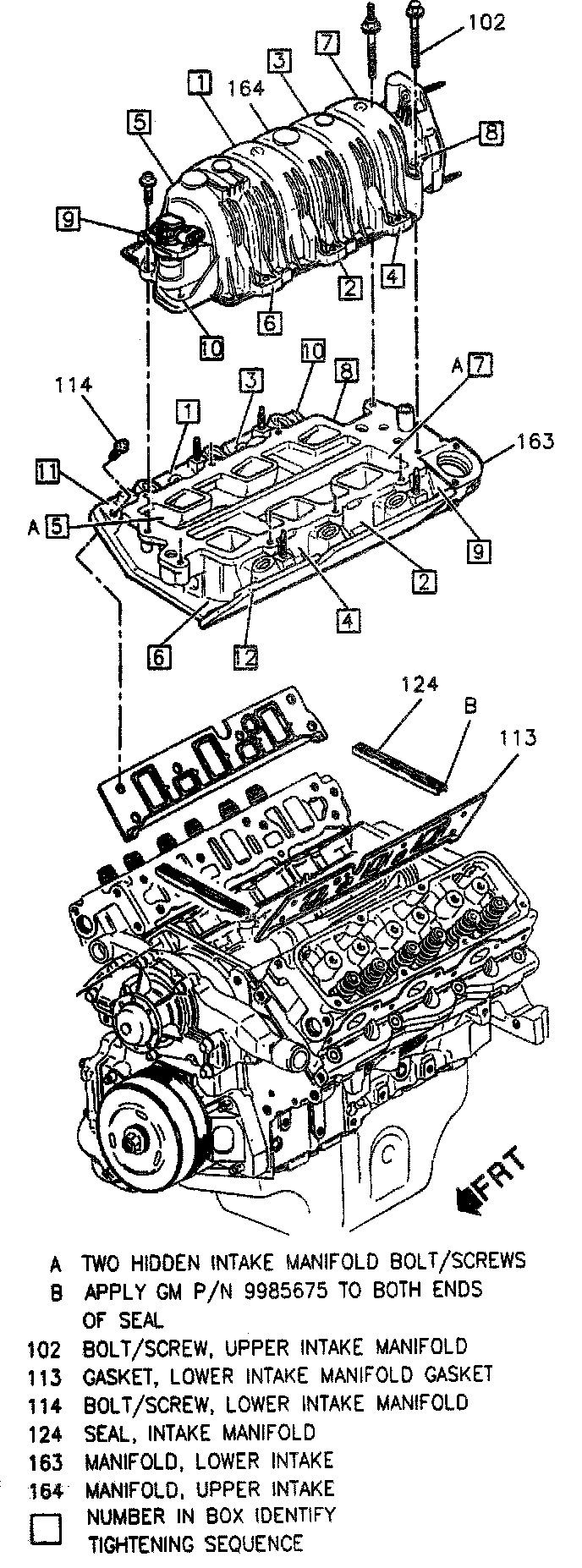

3.8L - Intake Bolt Tightening Sequence:
