Surges/Chuggles

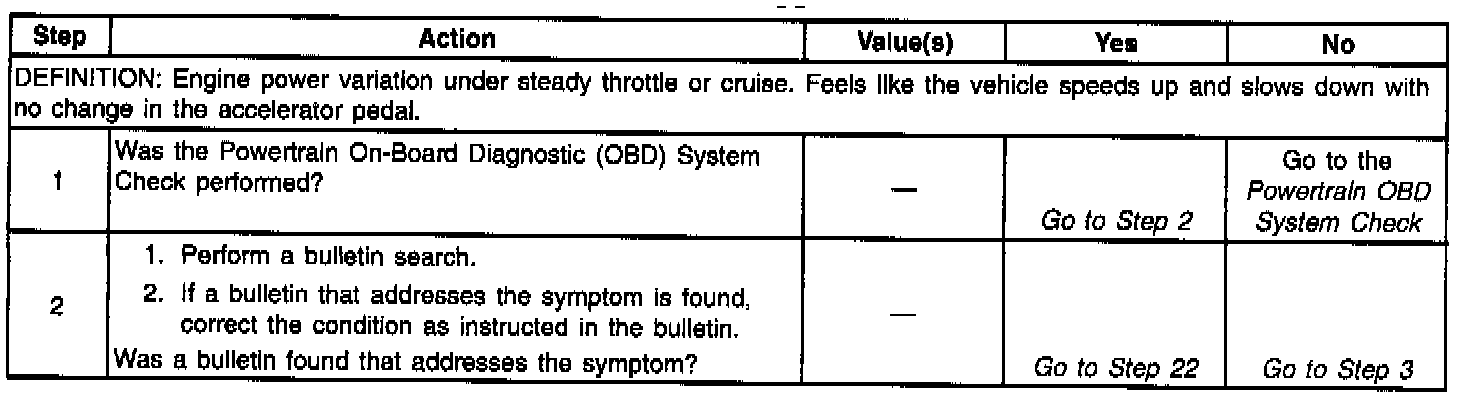

Surges/Chuggles (1 Of 4):

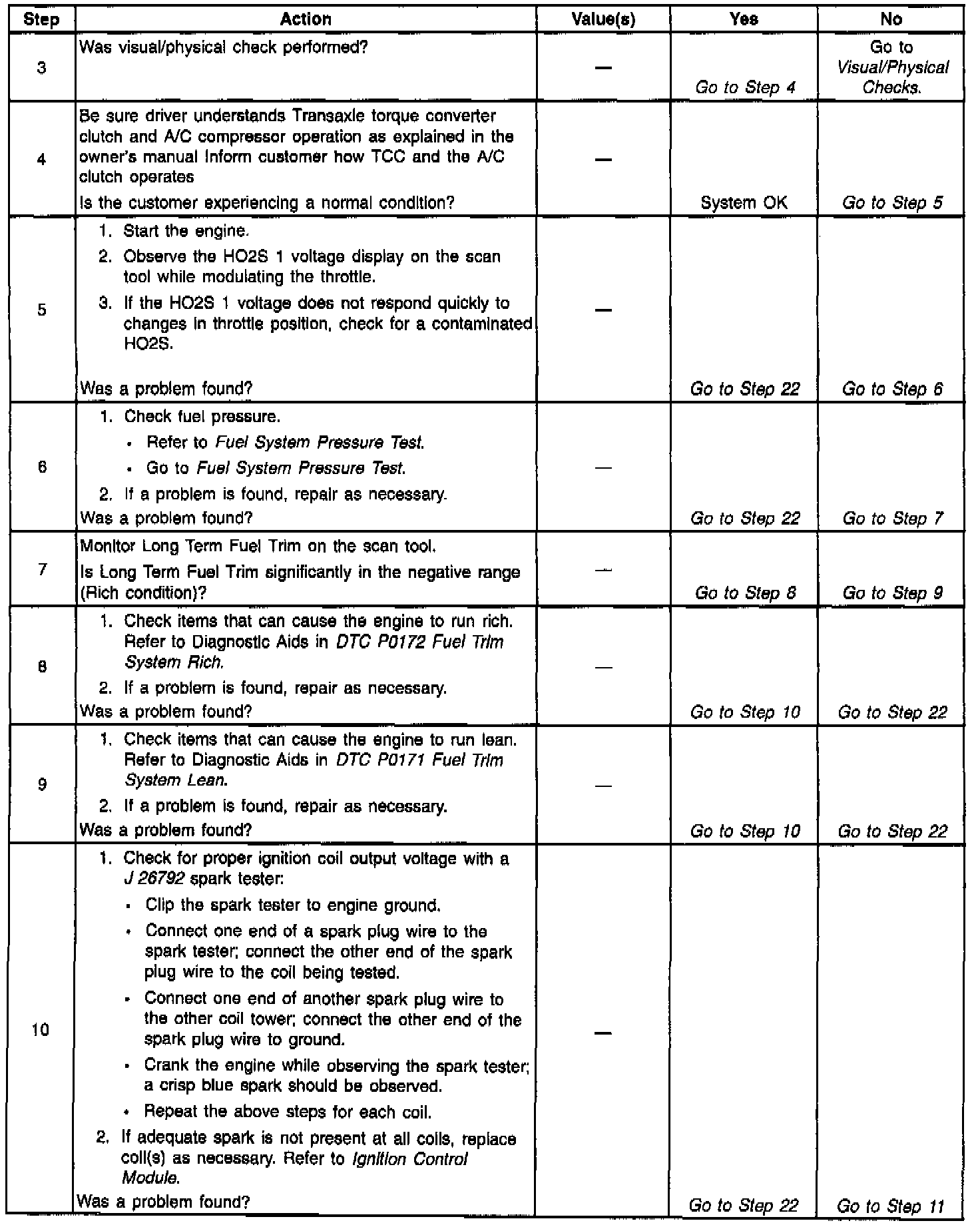

Surges/Chuggles (2 Of 4):

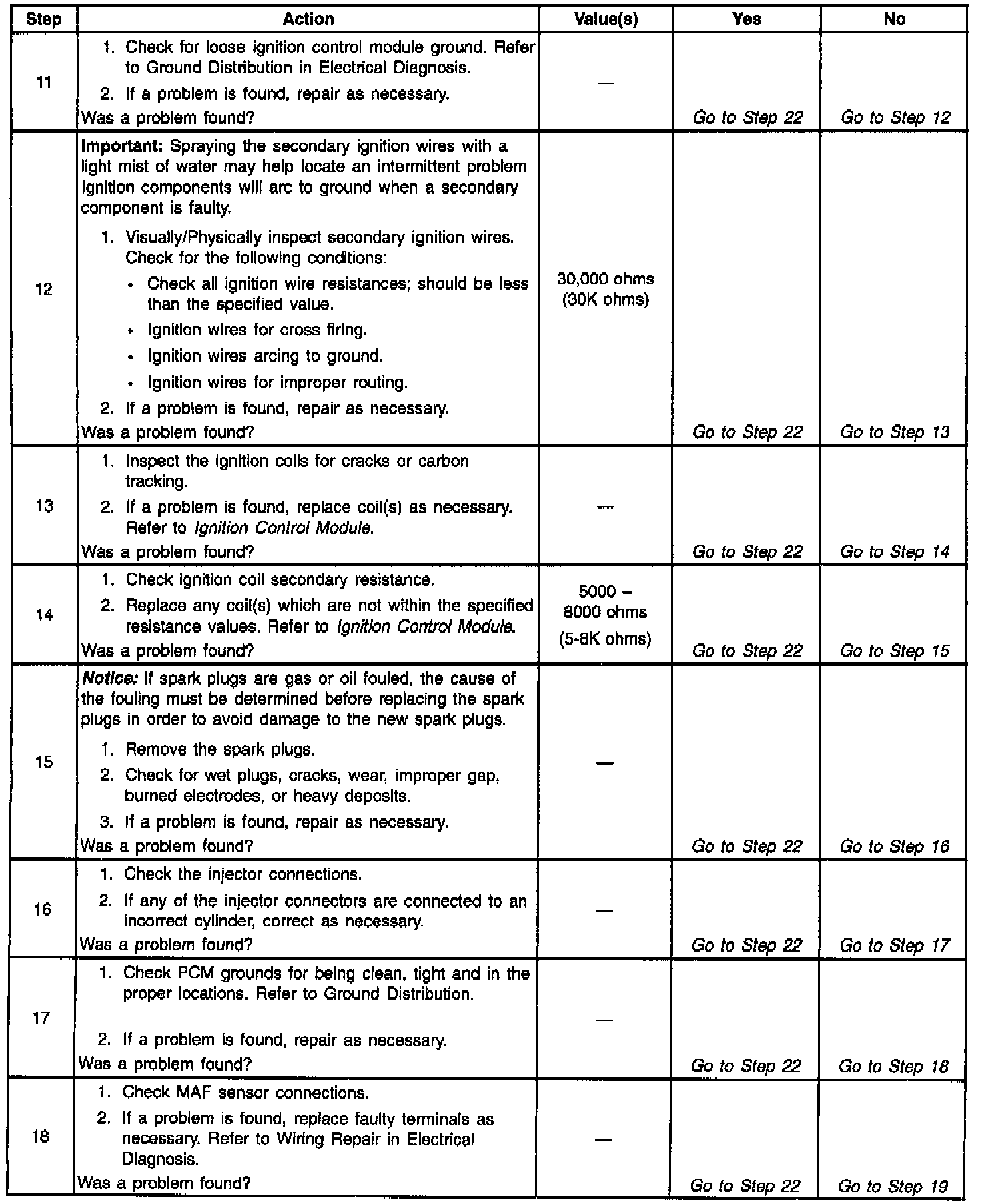

Surges/Chuggles (3 Of 4):

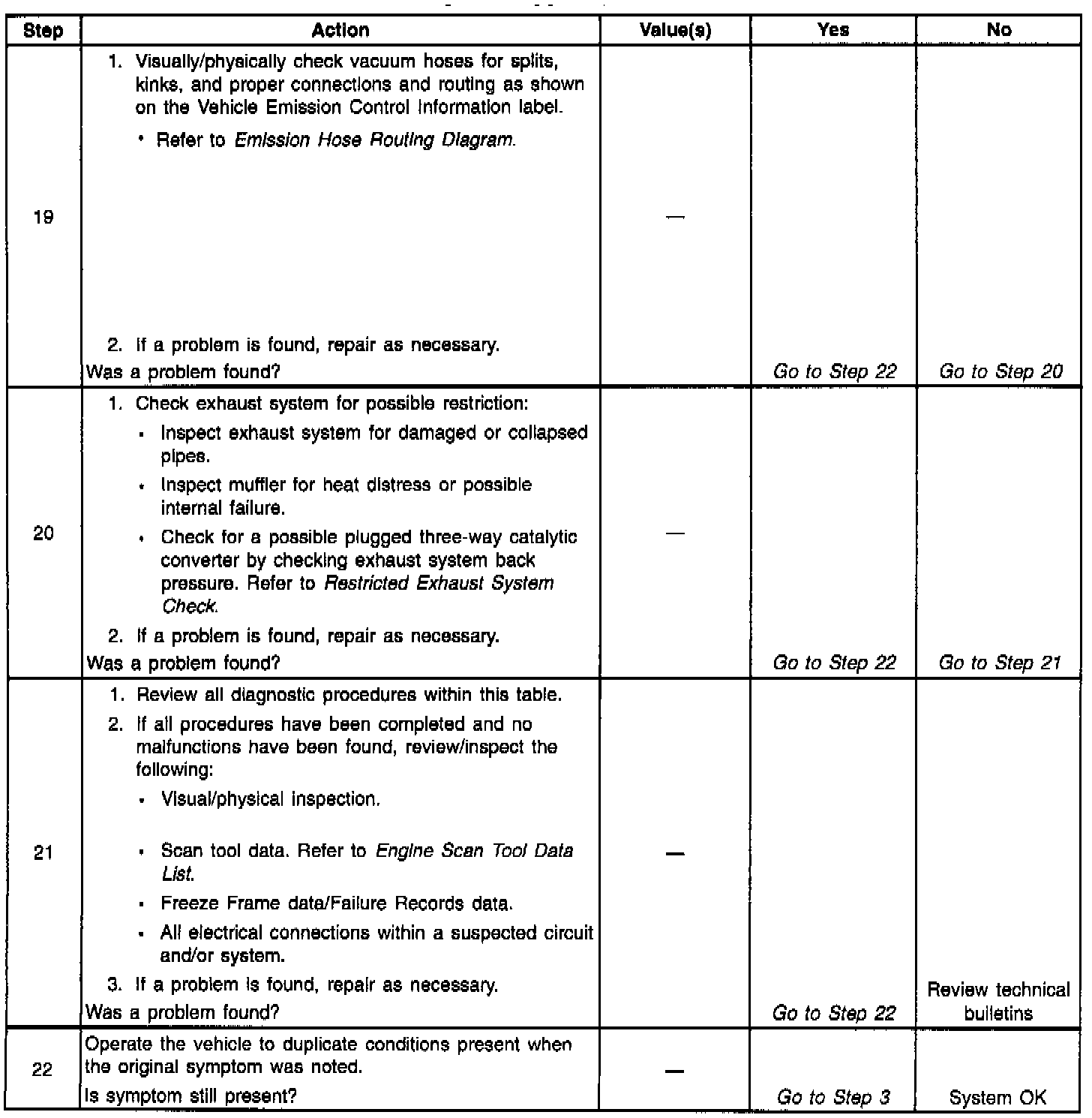

Surges/Chuggles (4 Of 4):
