Home >> Oldsmobile >> 1996 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Component Locations >> Master Switch Assembly Lamp

Master Switch Assembly Lamp

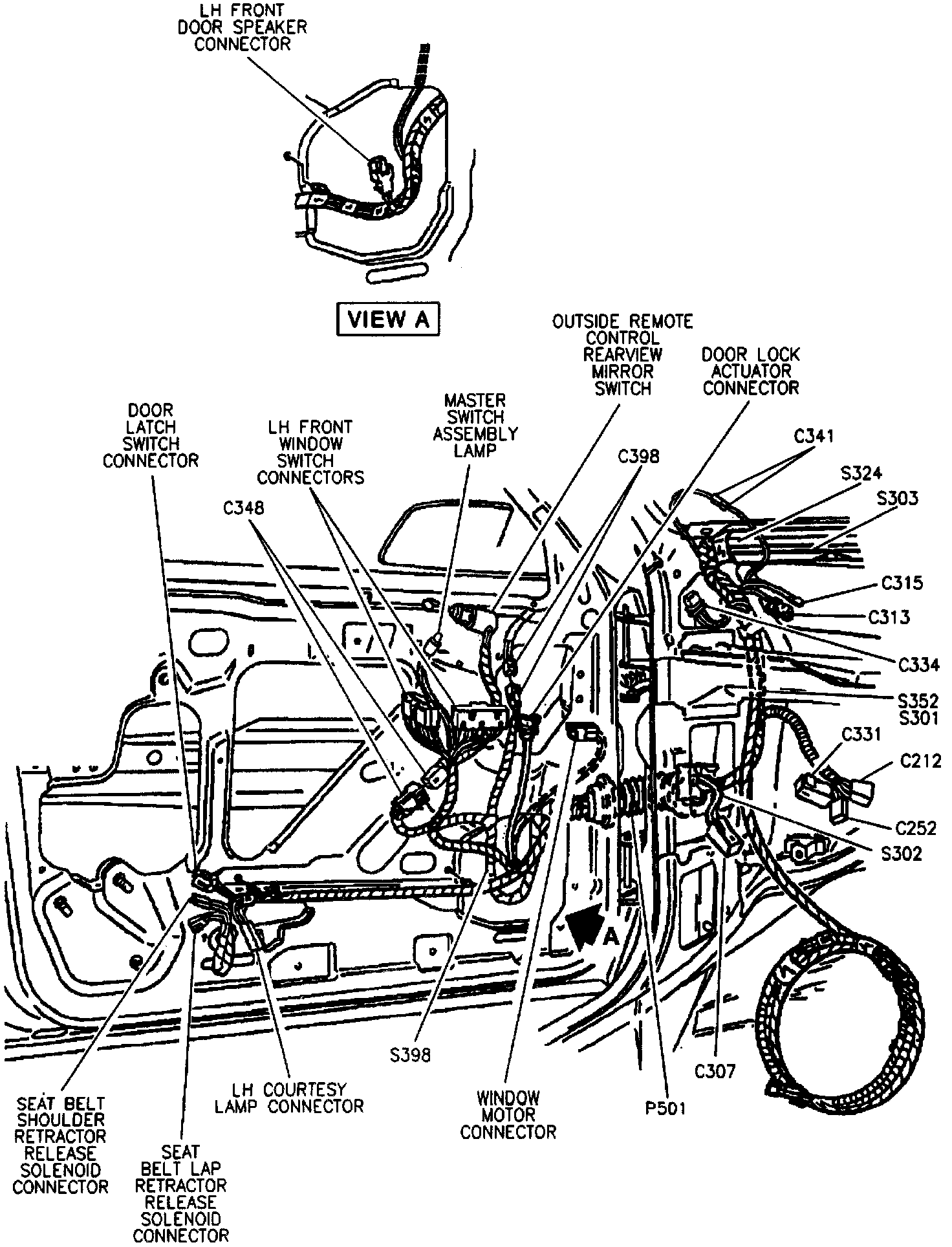

LH Front Door (RH Similar) And Shroud (Buick Shown Olds Similar):
