Design and Diagnosis Specifications

Design and Clearance Specifications

3T40

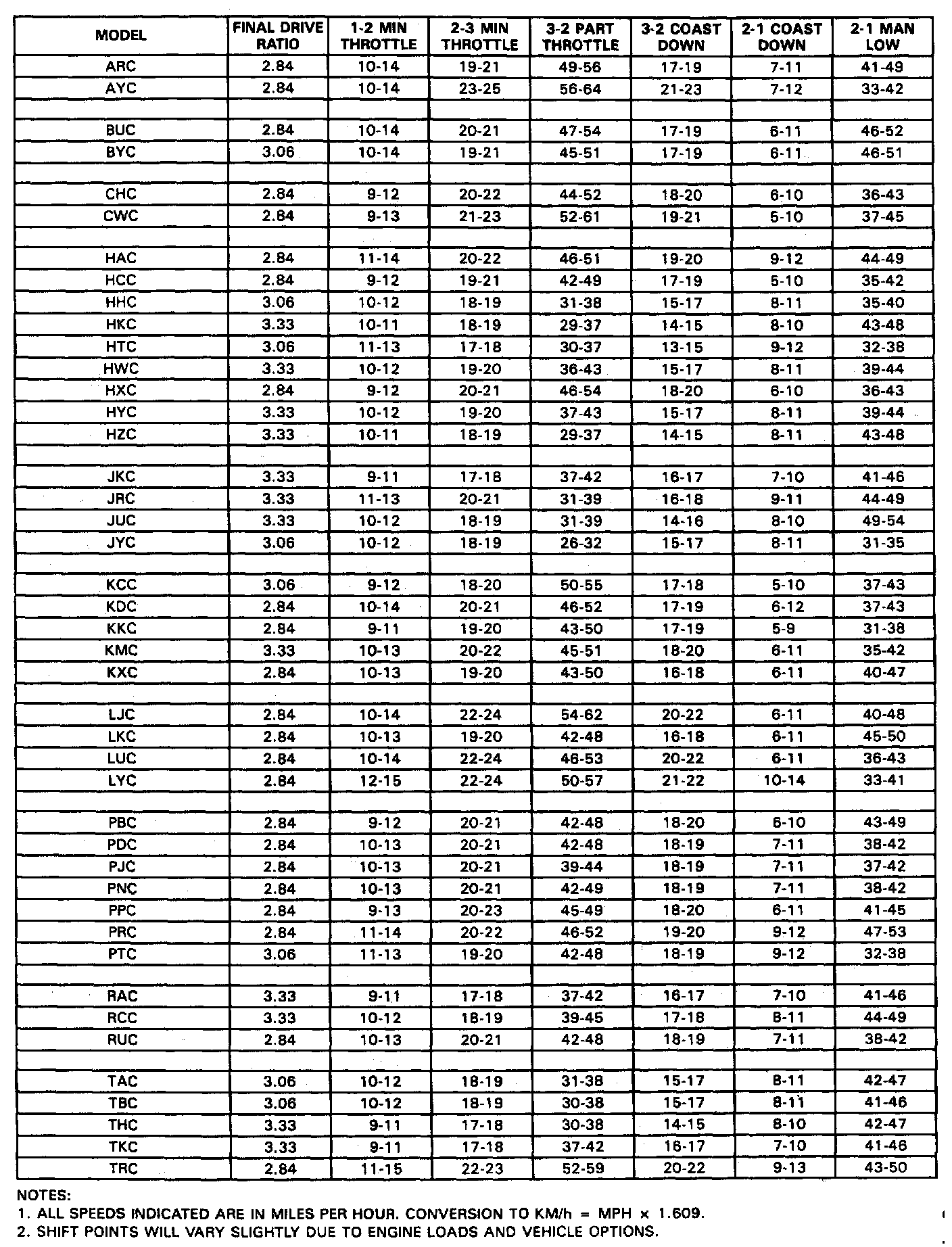

Shift Speed Chart:

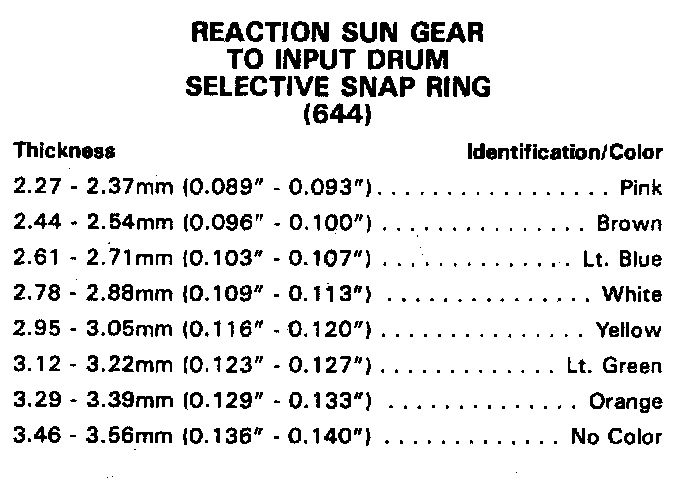

Snap Ring Chart:

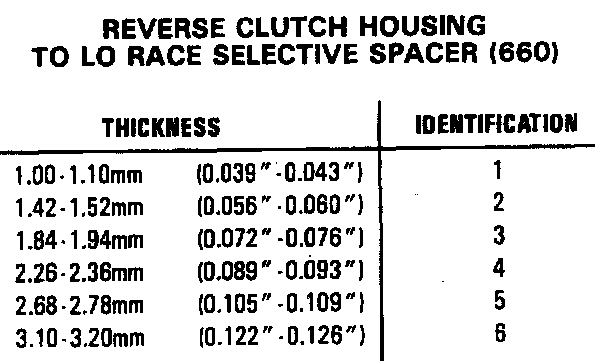

Lo Race Selective Spacer Chart:





Final Drive End Play Chart:

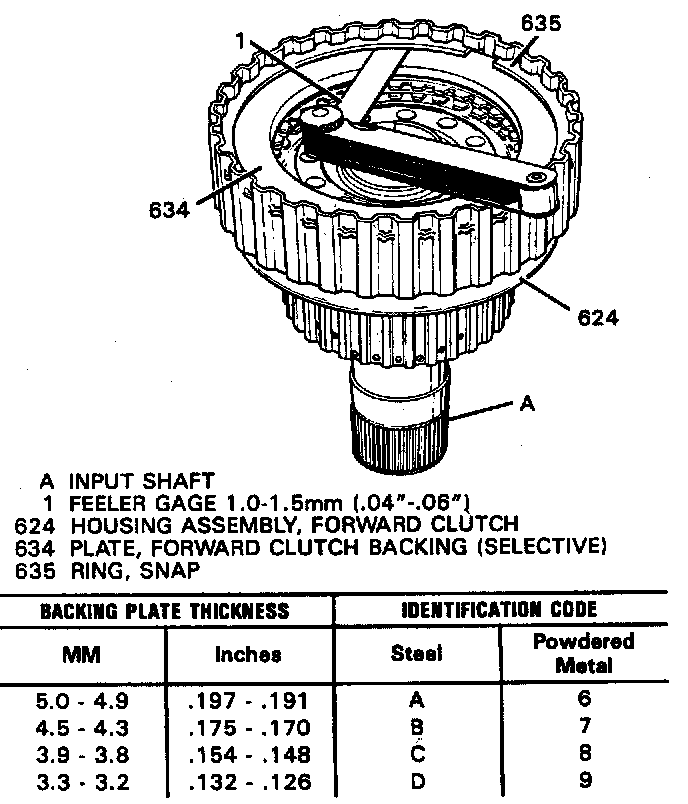

Forward Clutch Backing Plate Selection Chart:
