Vehicle Ride (Trim) Height Specifications

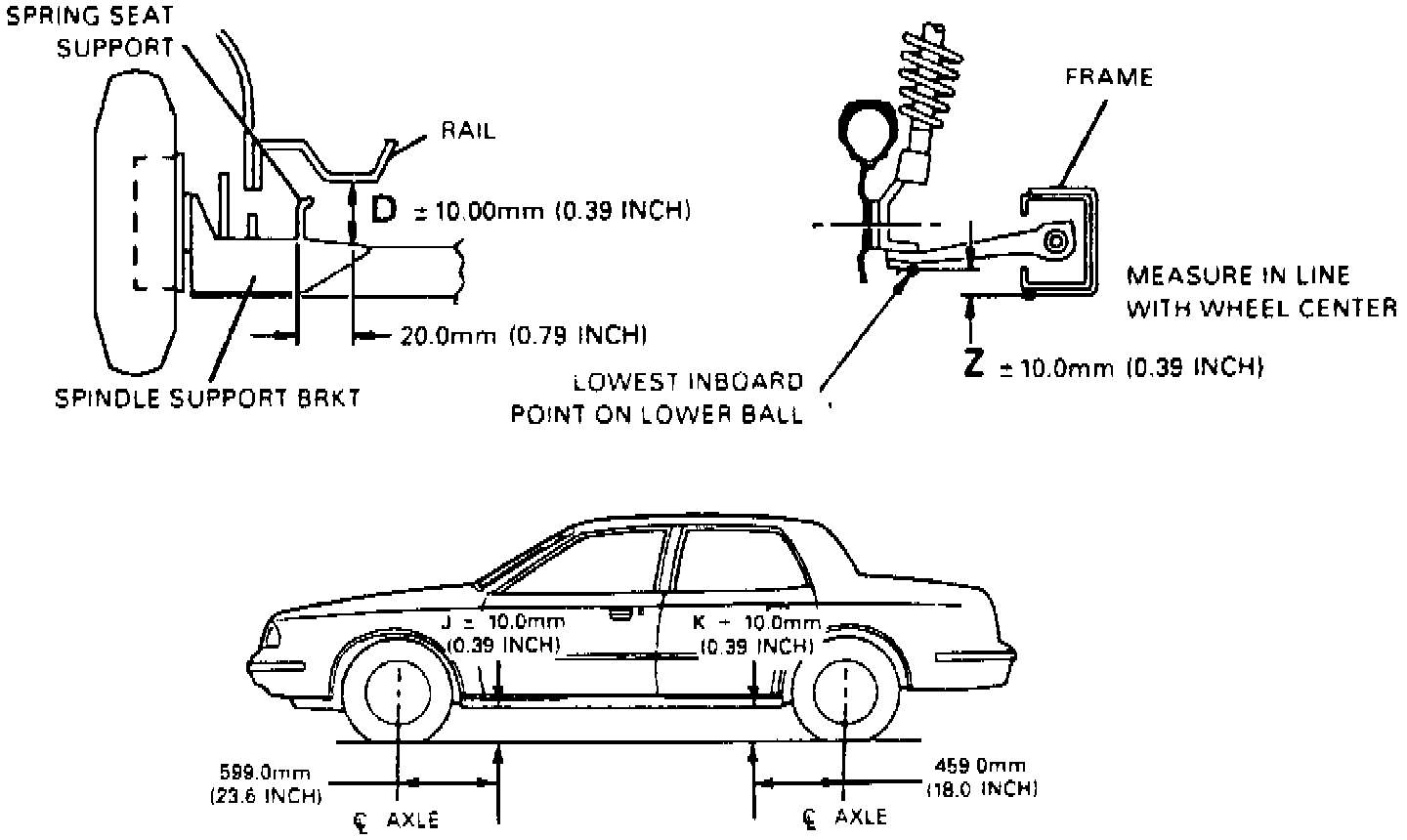

Fig. 1 Measurement Point Locations:

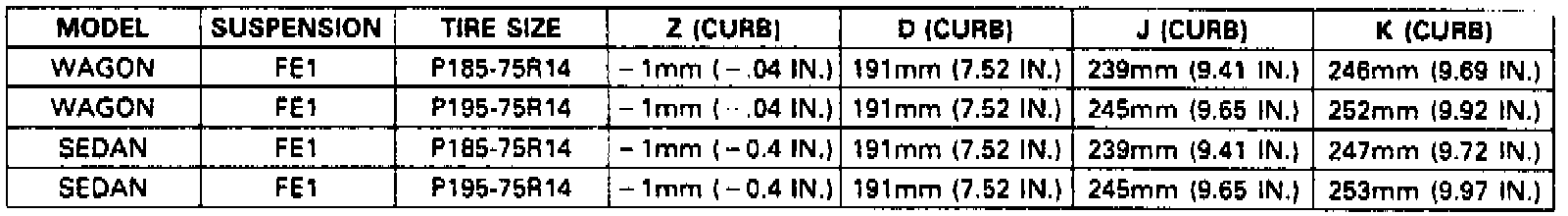

Fig. 3 Vehicle Ride Height Specifications:

Refer to Figs. 1 and 3 for vehicle ride height specifications and measurement location points.
