Home >> Oldsmobile >> 1996 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

Daytime Running Lamp Control Unit

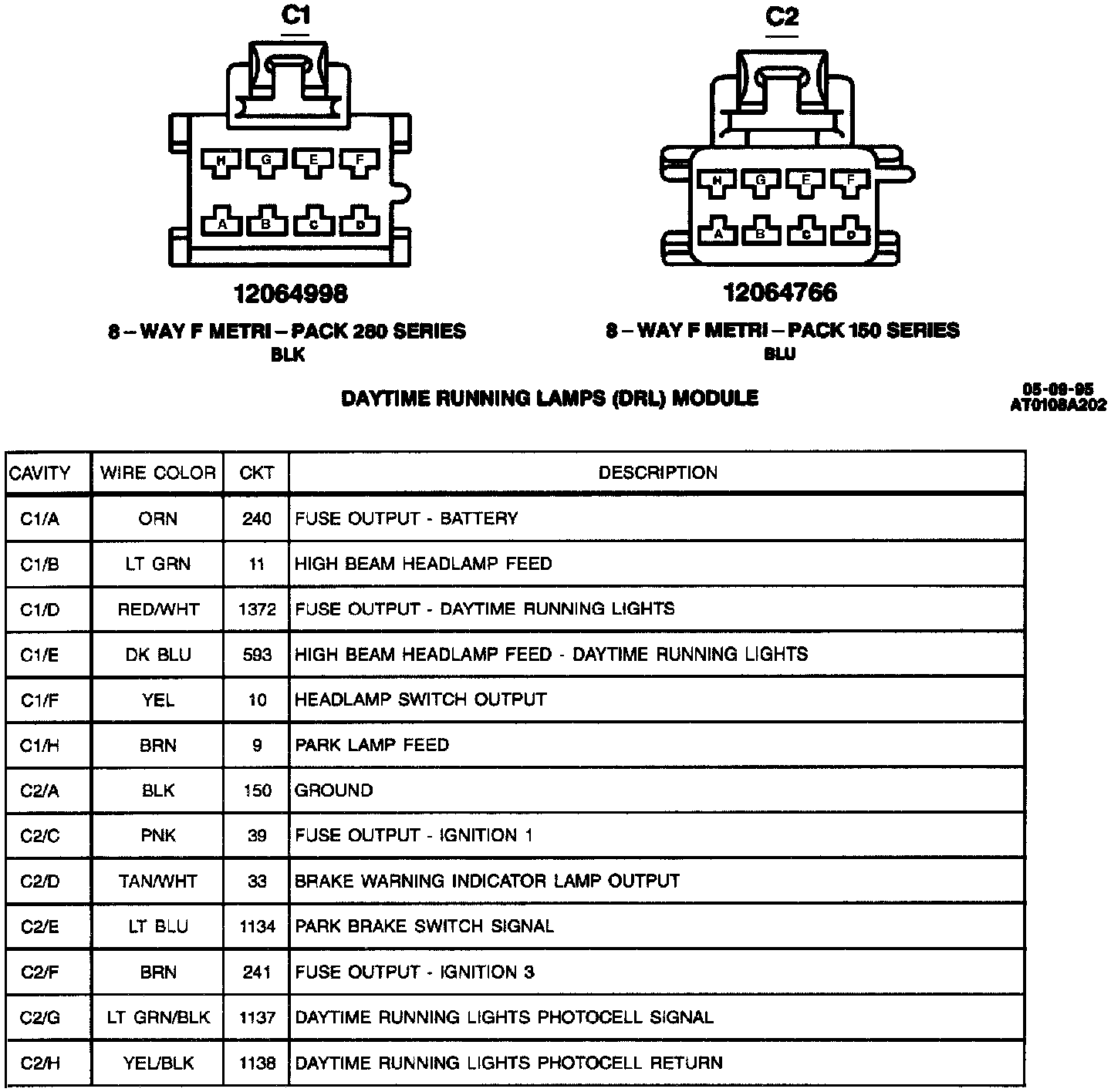

C1, C2: Daytime Running Lamps (DRL) Module:
