Window Motor

POWER WINDOW MOTOR

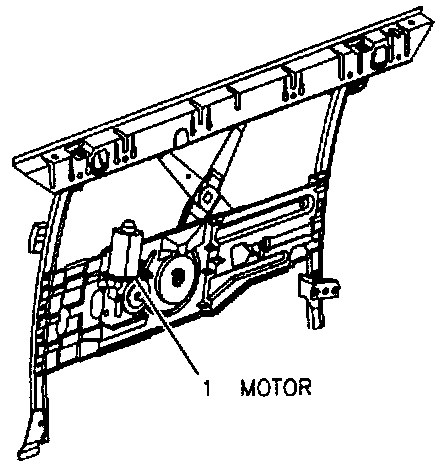

Power Window Motor:

REMOVE OR DISCONNECT
1. Trim panel and water deflector. Refer to "Door Trim Panel" and "Water Deflector".
2. Mark all in-out adjustments and loosen adjusters. Refer to "Window Adjustment".
3. Electrical connector.
4. Motor attachment nuts.
5. Push module full outboard to allow removal of motor.

INSTALL OR CONNECT
1. Motor.
2. Motor attachment nuts.
3. Electrical connector.
4. Align adjustments and tighten adjusters. Refer to "Door Window Adjustment".
5. Water deflector and trim panel.
