Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Poor Performance

Poor Performance

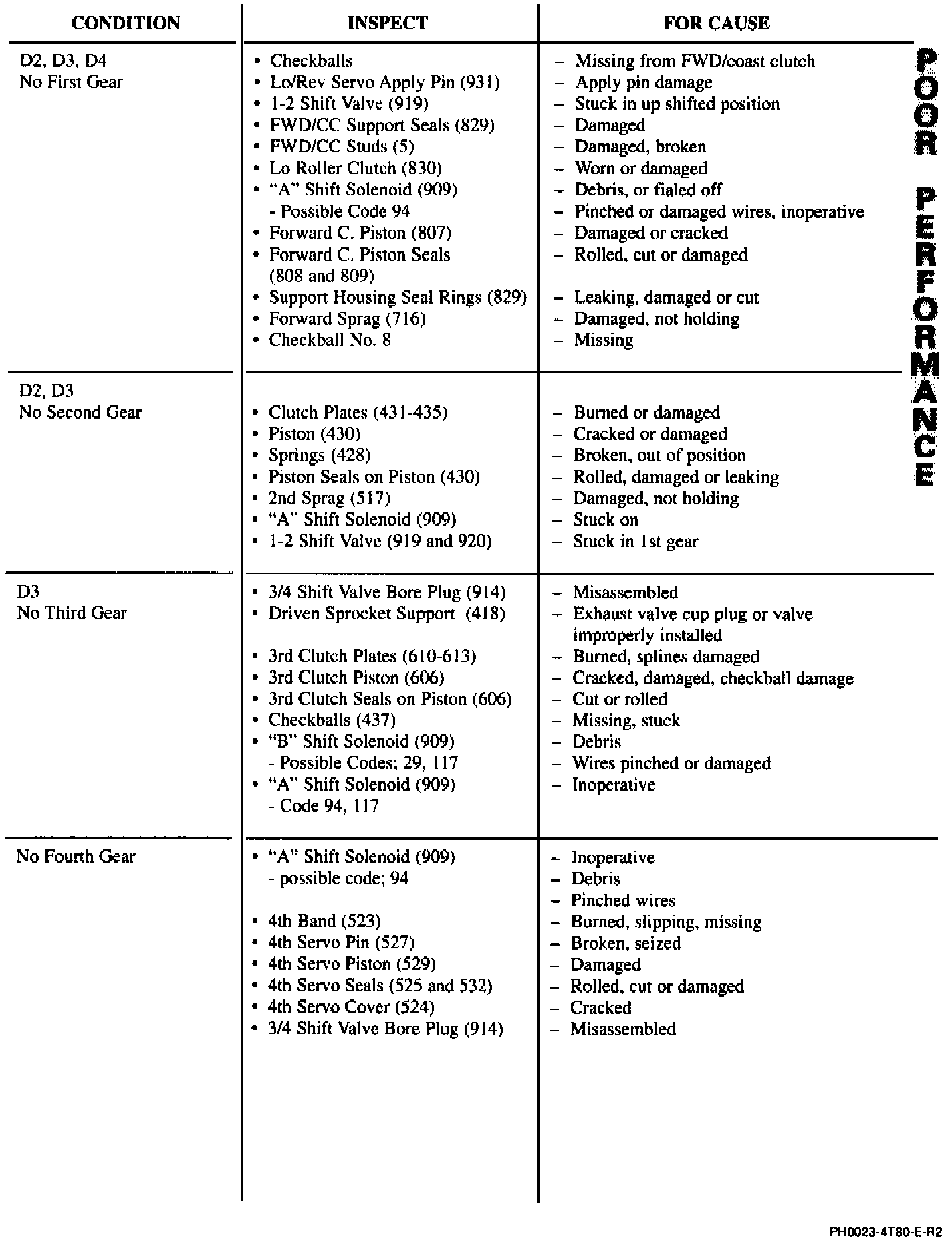

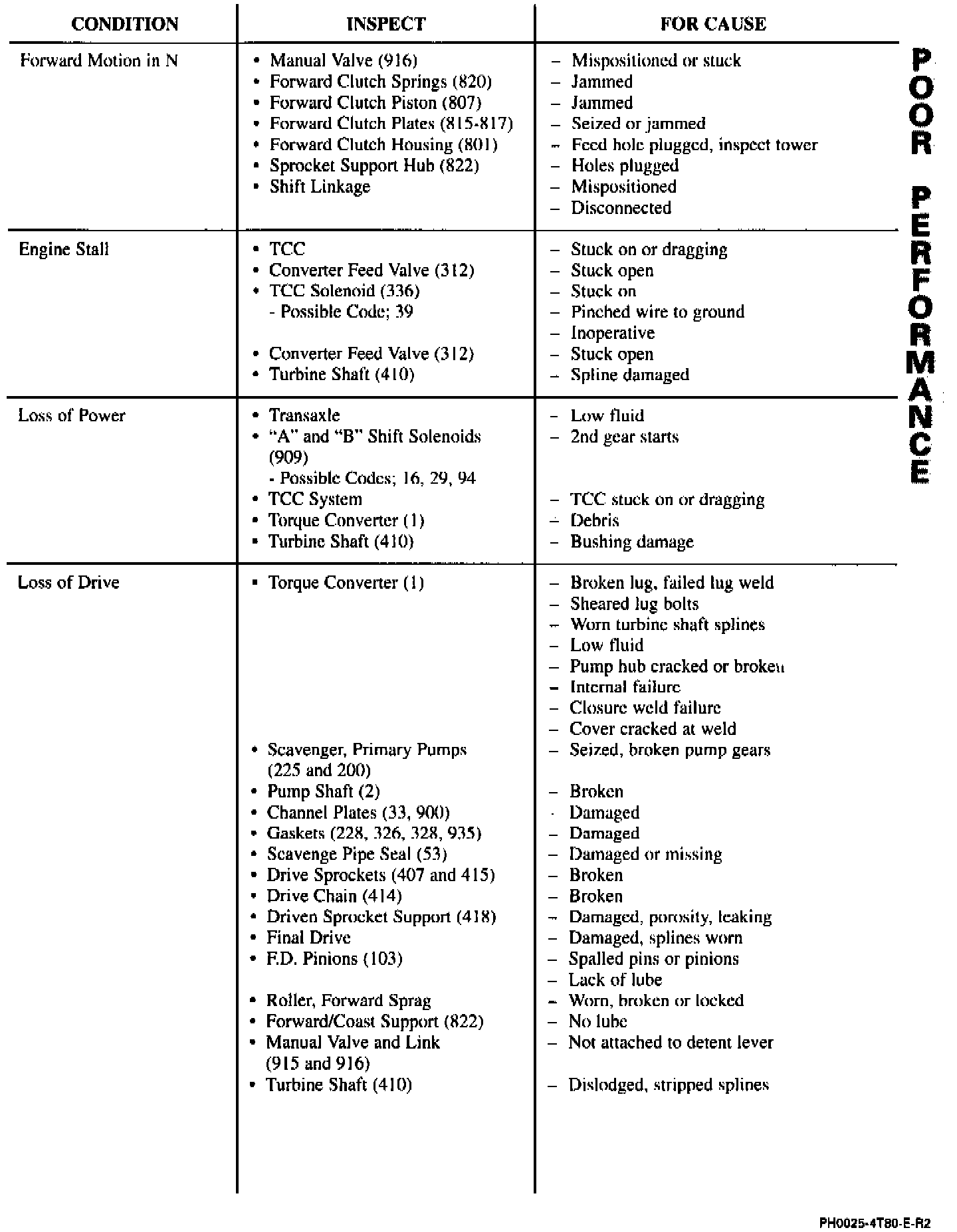

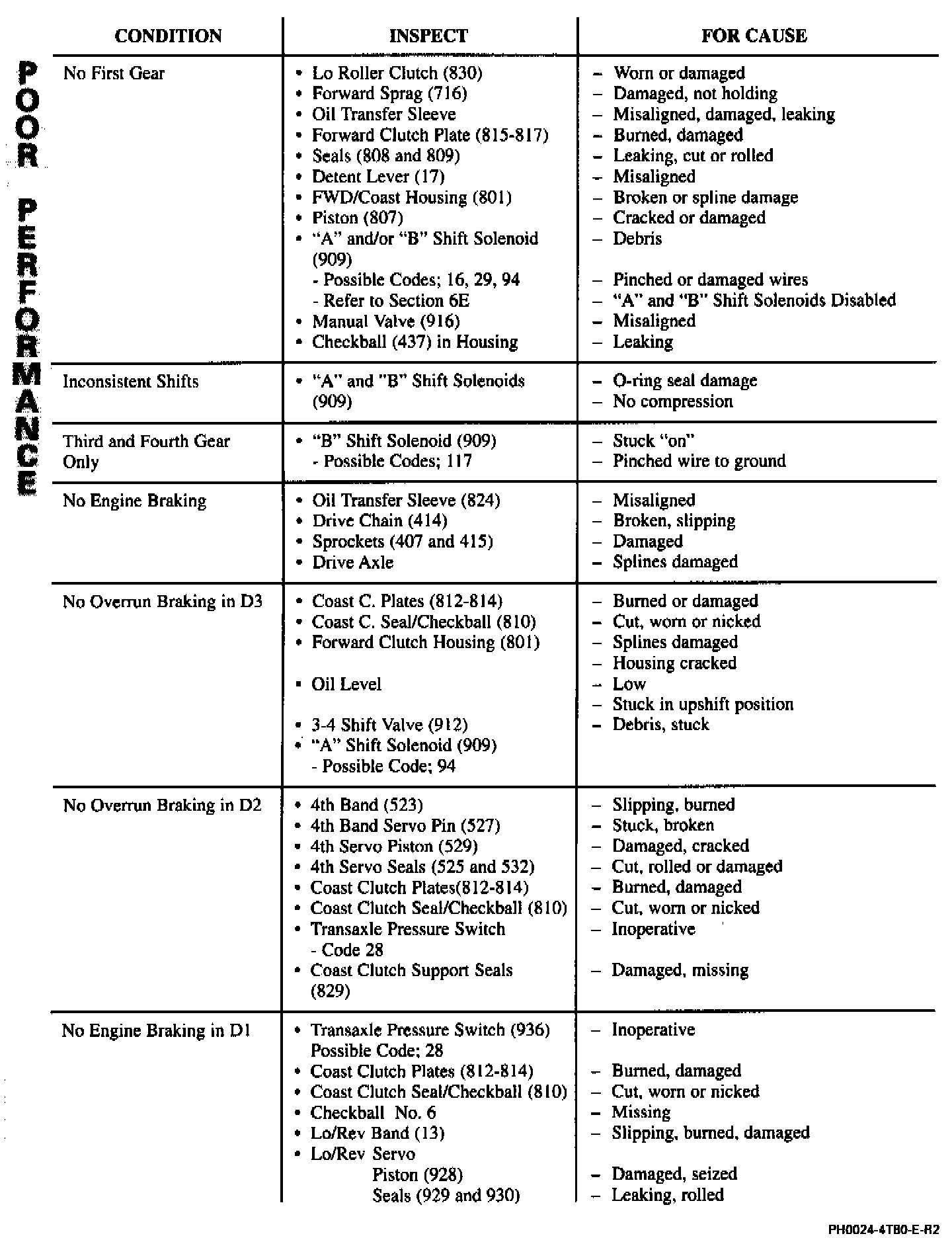

Fig.3 Troubleshooting, Poor Performance:




Fig.3 Troubleshooting, Poor Performance:




Fig.3 Troubleshooting, Poor Performance:






Refer to Fig. 3 for troubleshooting diagnosis.
