Harsh or Soft Shift

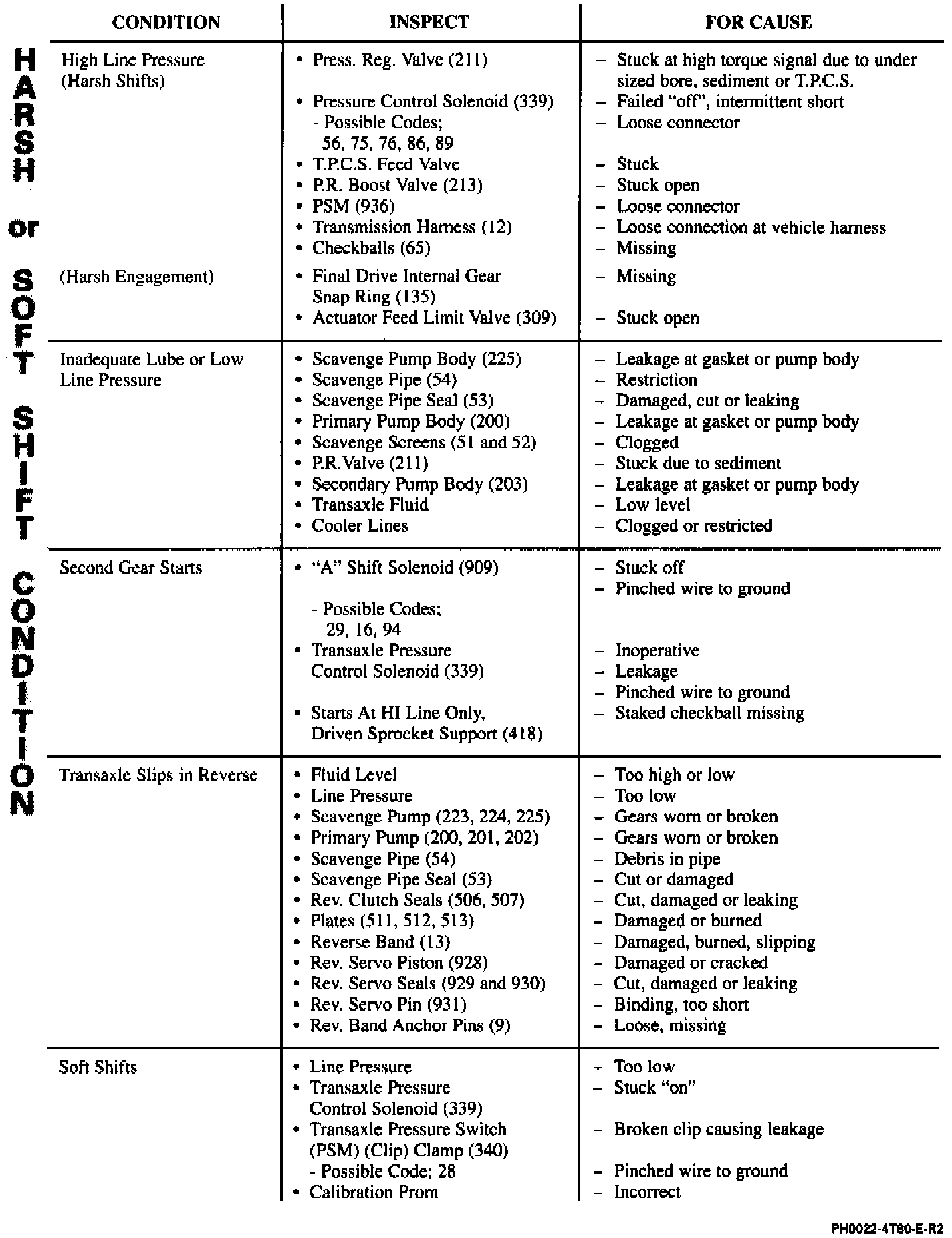

Fig.3 Troubleshooting, Harsh Or Soft Shift Condition:






Refer to Fig. 3 for troubleshooting diagnosis.
