Transaxle Mount Replace - Right Side

^ Tool Required:
- J 28467-A Engine Support Fixture
- J 28457-94 Engine Support Fixture Adapter
- J 28467-330 Engine Support Fixture Adapter
- J 28467-350 Engine Support Fixture Adapter

REMOVE OR DISCONNECT
1. Raise vehicle and support.
2. Install jack stand to support the powertrain.
3. Left front tire and wheel.
4. Nuts attaching mount bracket to mount.
5. Bolts attaching mount bracket to transaxle.
6. Bolts attaching left side mount to frame and remove mount.

INSTALL OR CONNECT
1. Mount to frame and install bolts.
2. Bracket to transaxle and install bolts.
3. Nuts securing brace to Mount.

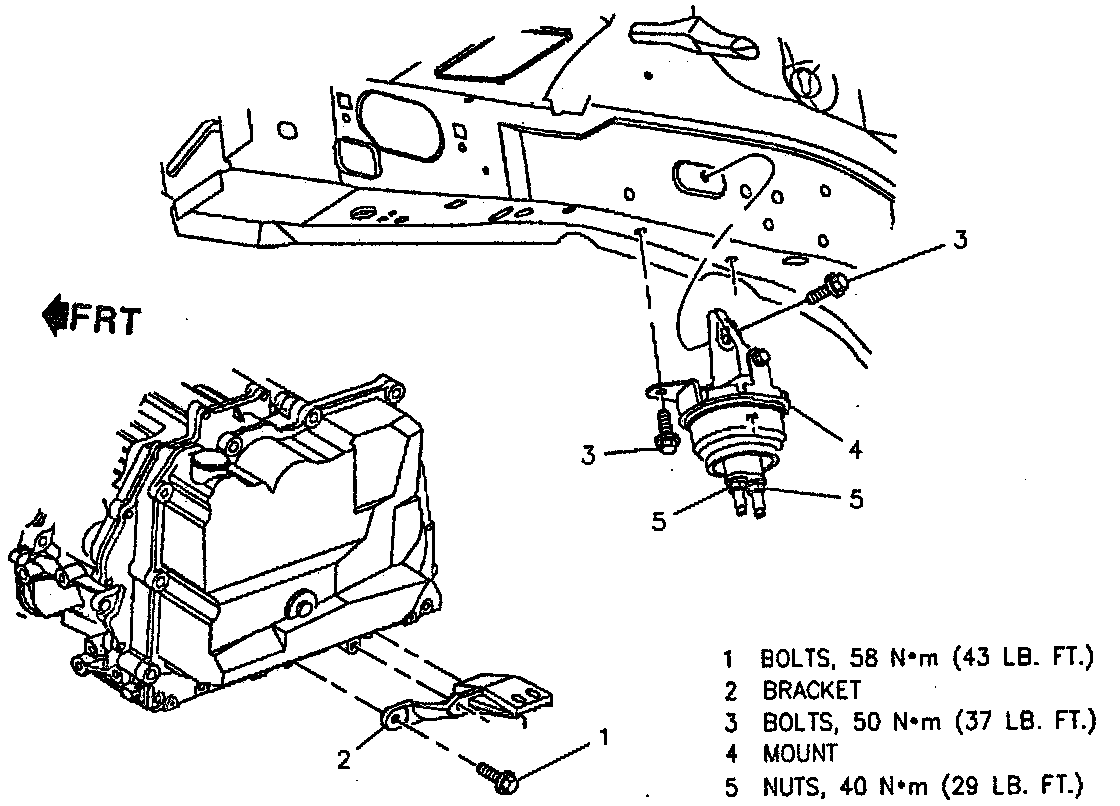

Tighten
- Bolts (1) to 58 N.m (43 lb. ft.).
- Bolts (3) to 50 N.m (37 lb. ft.).
- Nuts (5) to 40 N.m (29 lb. ft.).

4. Left front tire and wheel.
5. Remove jack stand.
6. Lower vehicle.
