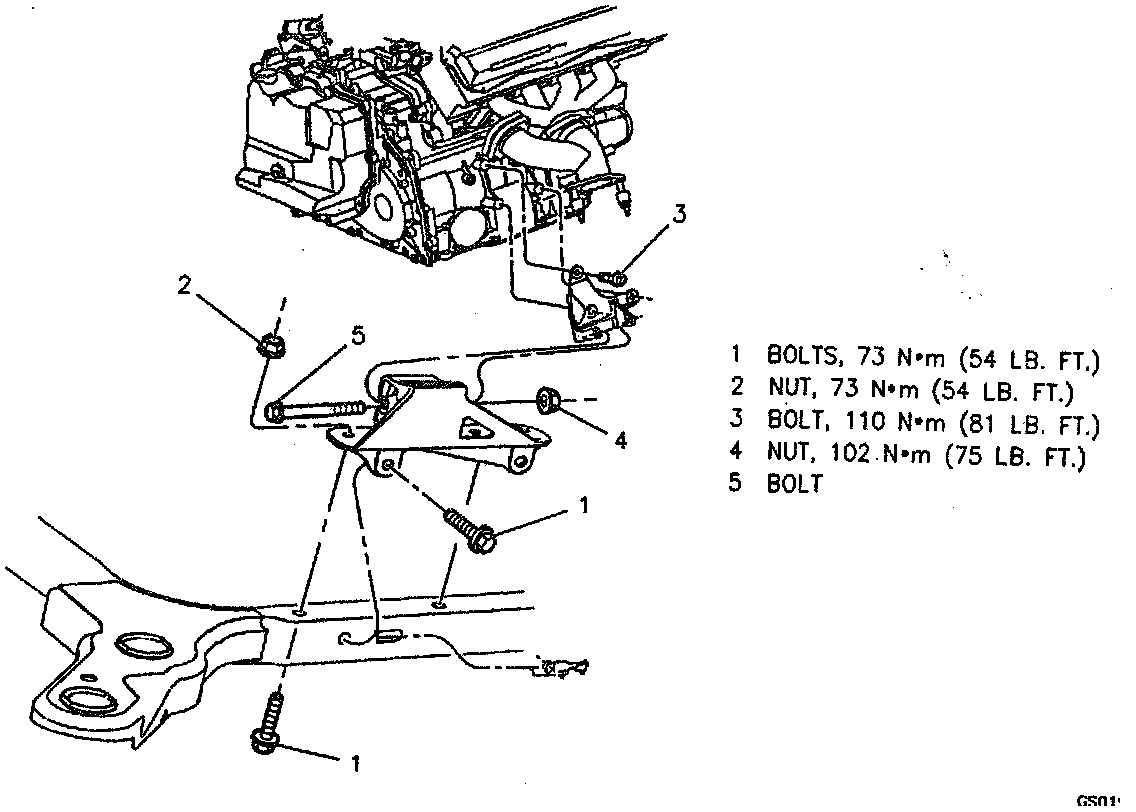

Right Transaxle Mount

REMOVE OR DISCONNECT
1. Raise vehicle and support.
2. Exhaust system.
3. Manifold to crossover pipe.
4. Steering rack retaining bolts.
5. Position steering rack away from mount as necessary.
6. Support transaxle with the transmission jack.
7. Through bolt and nut.
8. Mount to frame nuts and bolts.
9. Mount from frame.
10. Mount to transaxle bolts.
11. Mount from transaxle.

INSTALL OR CONNECT
1. Mount to transaxle.
2. Mount to frame.

Tighten
- Bolts to transaxle to 110 N.m (81 ft. lb.).
- Bolts and nuts mount to frame 73 N.m (54 lb. ft.).

3. Mount through bolt.

Tighten
- Through bolt to 102 N.m (75 lb. ft.).

4. Transmission jack
5. Steering rack.
6. Manifold crossover.
7. Exhaust system.
8. Lower vehicle.
