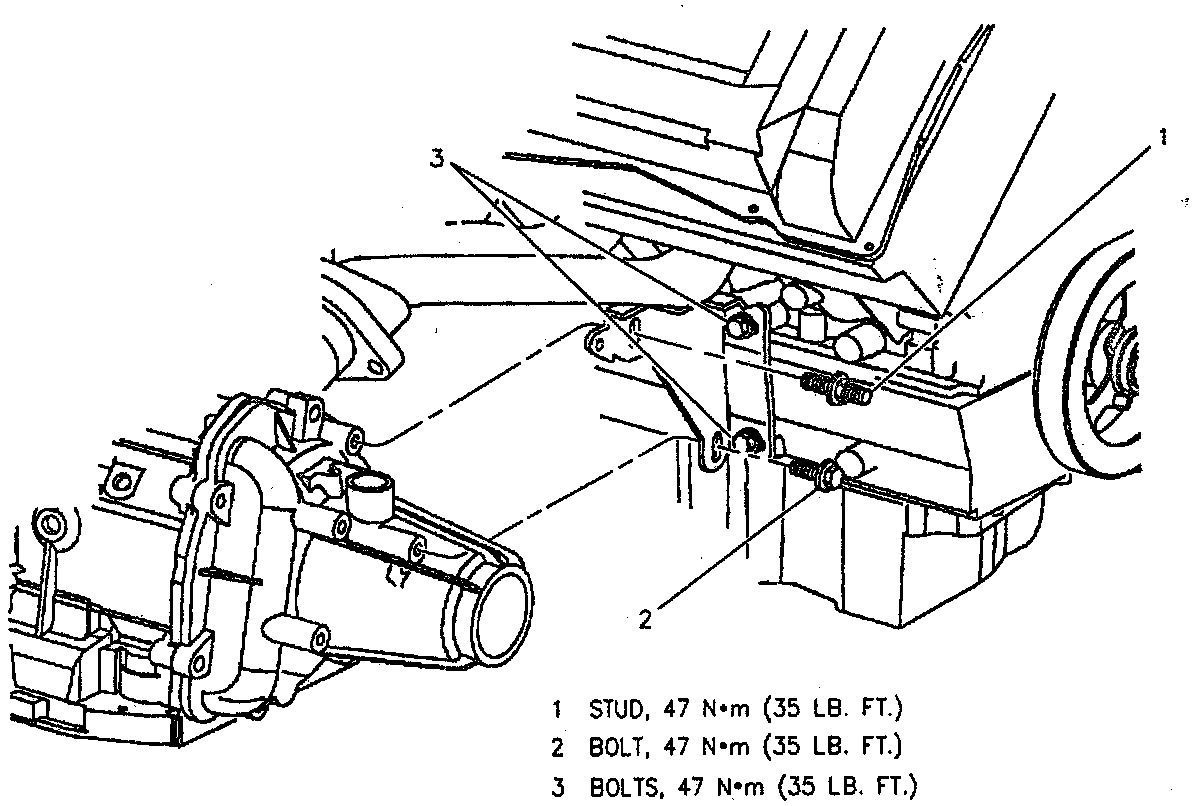

Engine-to-Transaxle Brace

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Exhaust system.
3. Manifold to crossover pipe.
4. Steering rack retaining bolts.
5. Support transaxle.
6. Right mount-to-bracket through bolt and nut.
7. Rear mount-to-cradle through bolt and nut.
8. Right mount.
9. Transaxle brace from transaxle case.

INSTALL OR CONNECT
1. Transaxle mount brace to transaxle case.
2. Right mount.
3. Rear mount-to-cradle through bolt and nut.
4. Right mount-to-bracket through bolt and nut.
5. Remove support from transaxle.
6. Reposition and tighten steering rack.
7. Manifold to crossover pipe.
8. Exhaust system.
9. Lower vehicle.
