Pump Installation

PUMP INSTALLATION 4T80-E TRANSAXLE

^ Tools Required
- J 39068 Pump Assembly Guide Pins





1. Install the J 39068 pump assembly guide pins into the case.

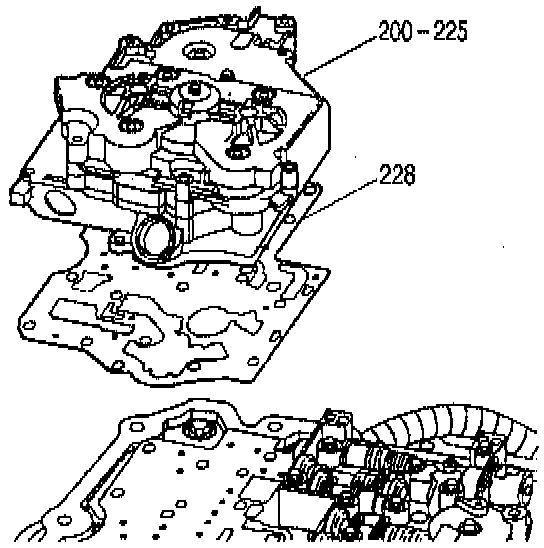

2. Install the new gasket (228).
3. Install the pump assembly (200-225).

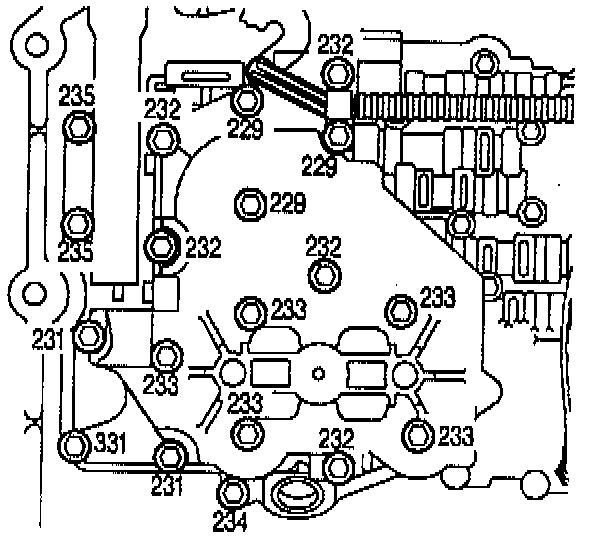

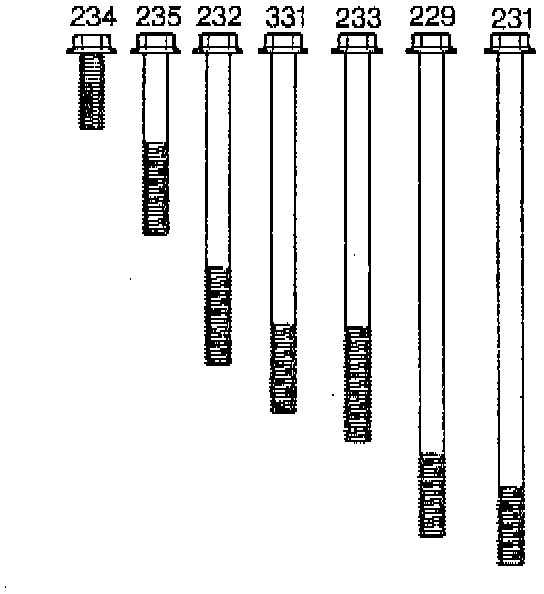

4. Hand start all of the bolts (229, 231, 232, 233, 234, 235, 331).





5. Remove the guide pins and install the remaining bolts.

Tighten
- Tighten the bolts in sequence in a clockwise pattern to 11-13 N.m (8.0-9.5 lb. ft).
