Front Suspension Strut

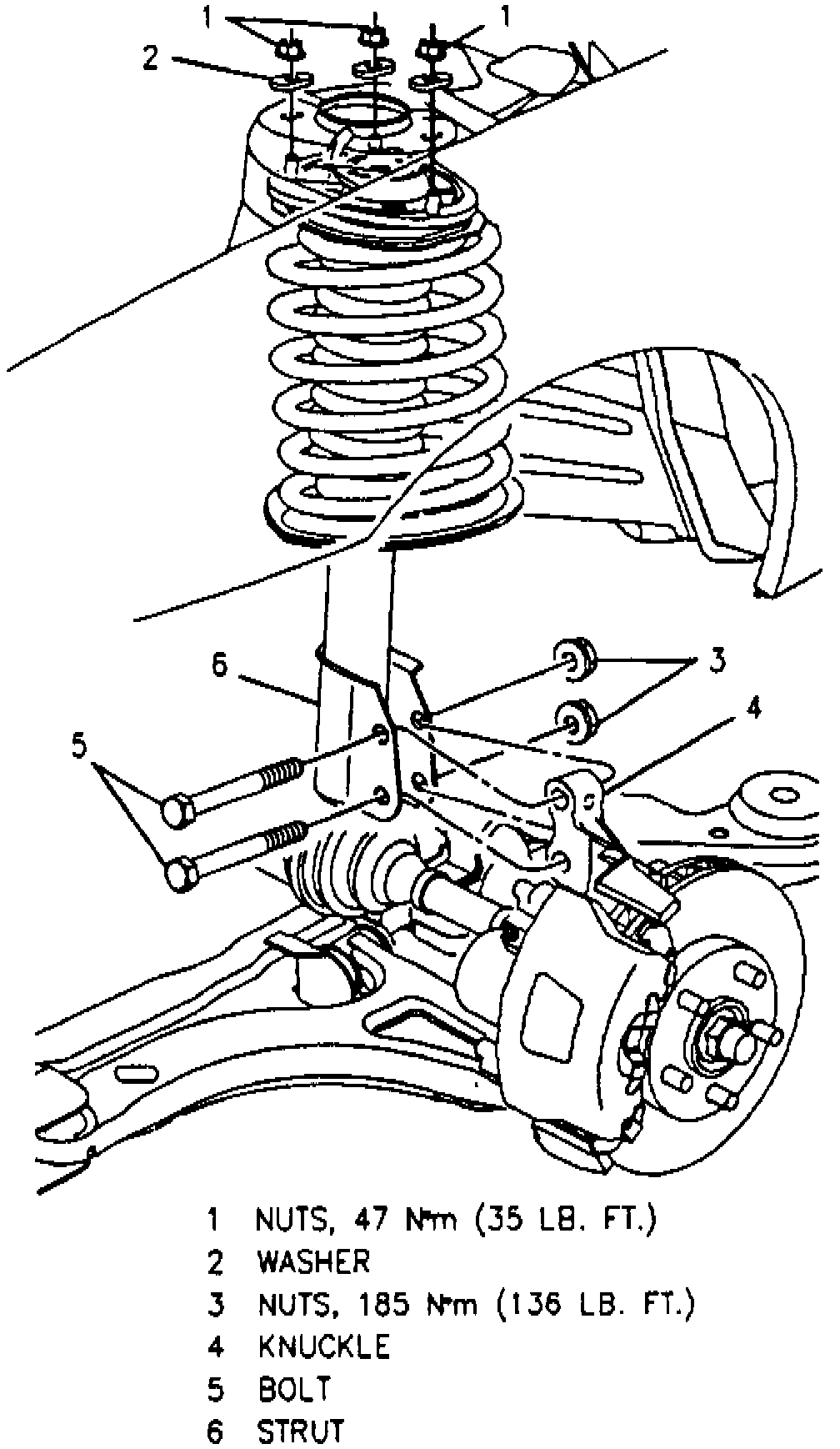

Fig. 3 Strut Replacement:

1. From engine compartment, remove three strut mount nuts and washers, Fig. 3.
2. Raise and support vehicle.
3. Remove wheel and tire assembly.
4. Disconnect ABS front wheel speed sensor connector.
5. Remove speed sensor bracket from strut.
6. Remove strut to knuckle bolts.
7. Remove strut from vehicle.
8. Reverse procedure to install.
