Test 2: Exhaust Solenoid Test

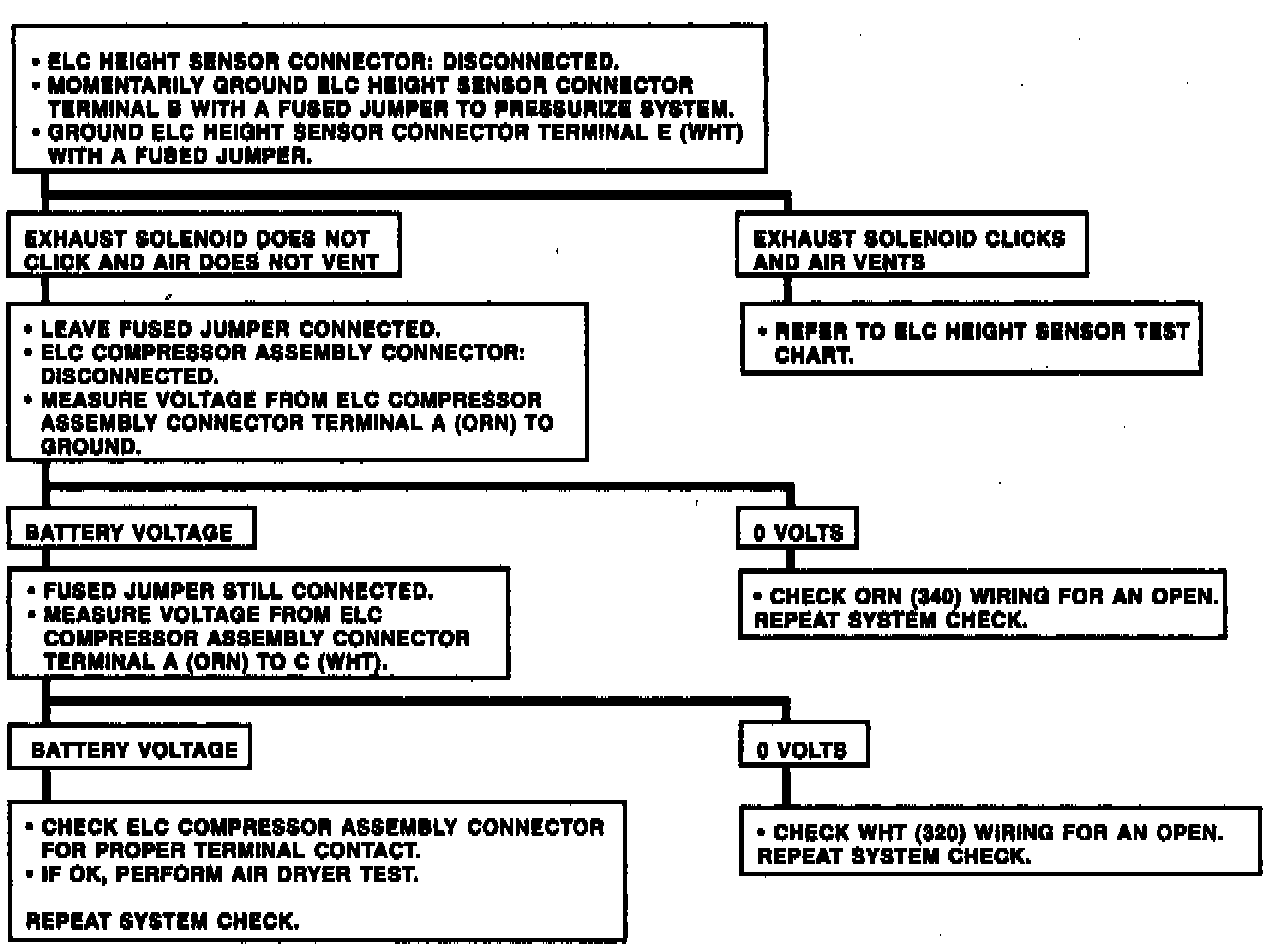

Fig.19 Test 2: Exhaust Solenoid Test.:

If ELC system is inoperative, check fuse in the fuse block. Refer to ELC diagnostic charts, Fig. 19 when performing electrical diagnosis on the ELC system.
