Rear Suspension

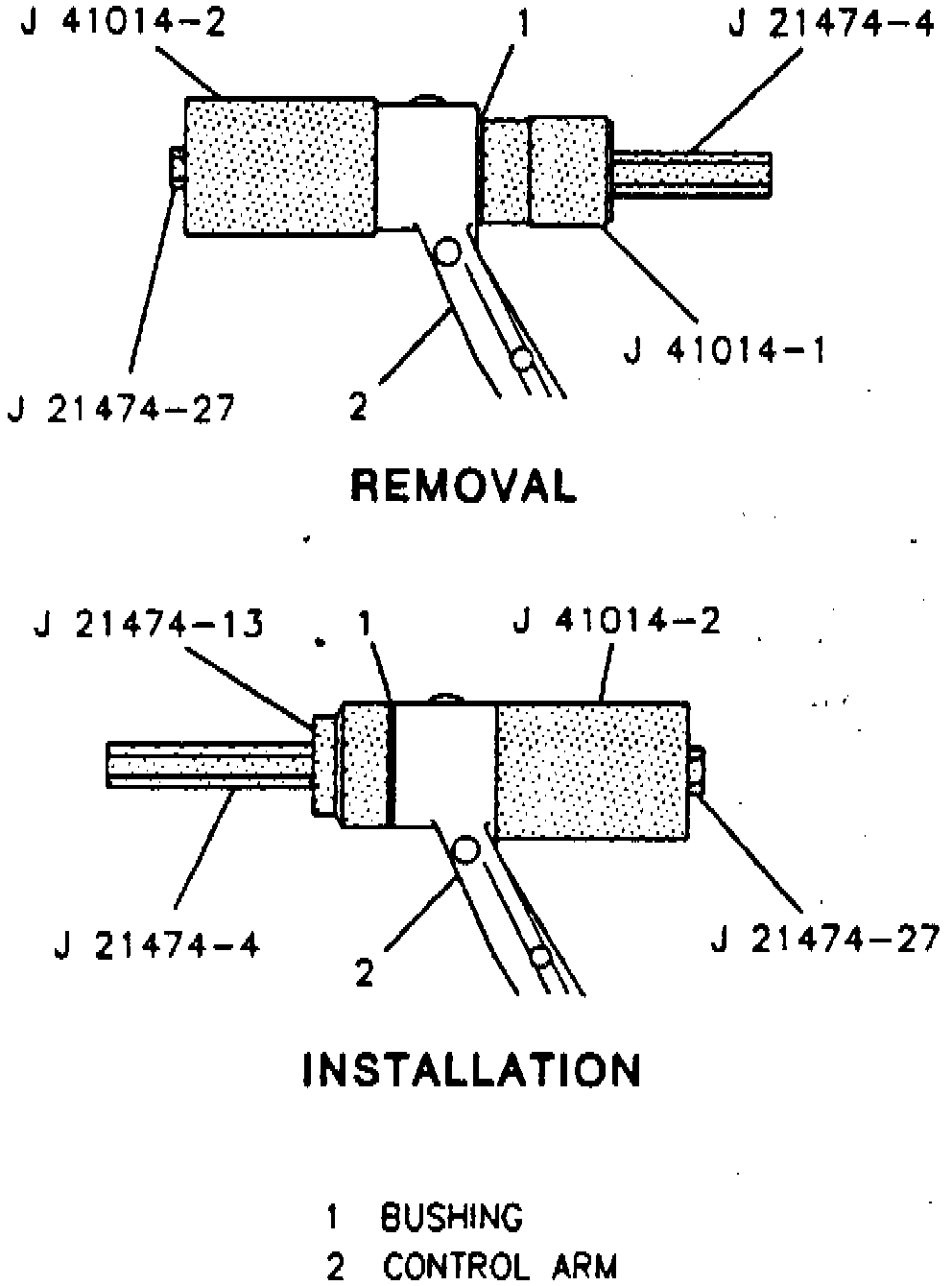

Fig. 6 Control Arm Bushing Replacement Tool Installation:

REMOVAL
1. Remove control arm then assemble bushing replacement tools as shown in Fig. 6.
2. Tighten nut until bushing is driven from control arm, then remove bushing replacement tools.

INSTALLATION
1. Start new bushing into control arm with flat on bushing positioned vertically and rearward.
2. Assemble bushing tools as shown in Fig. 6, then tighten bolt until bushing is seated fully in control arm.
3. Remove bushing tools, then install control arm.
