Magnasteer Msva Module

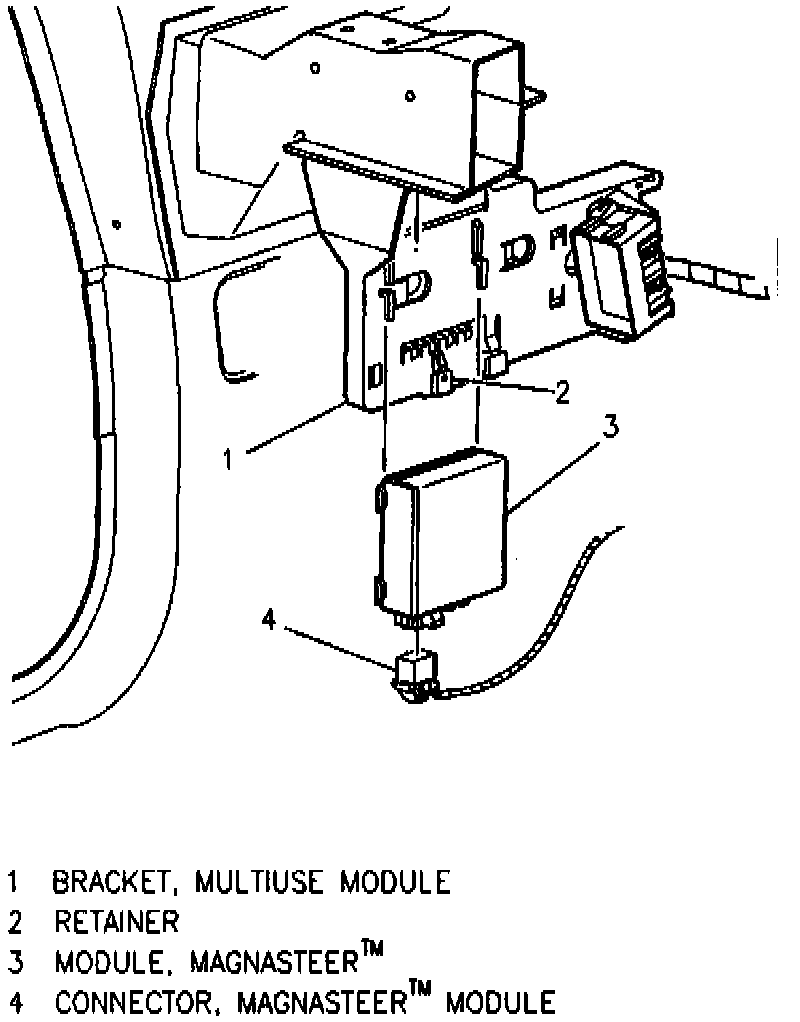

Fig. 23 MSVA Module Replacement:

1. Disconnect battery ground cable.
2. Remove left instrument panel sound insulator.
3. Disconnect module electrical connector, Fig. 23.
4. Remove Magnasteer module by pressing in on retainer and sliding down and out of bracket.
5. Reverse procedure to install.
