P Series L/Reservoir Pump

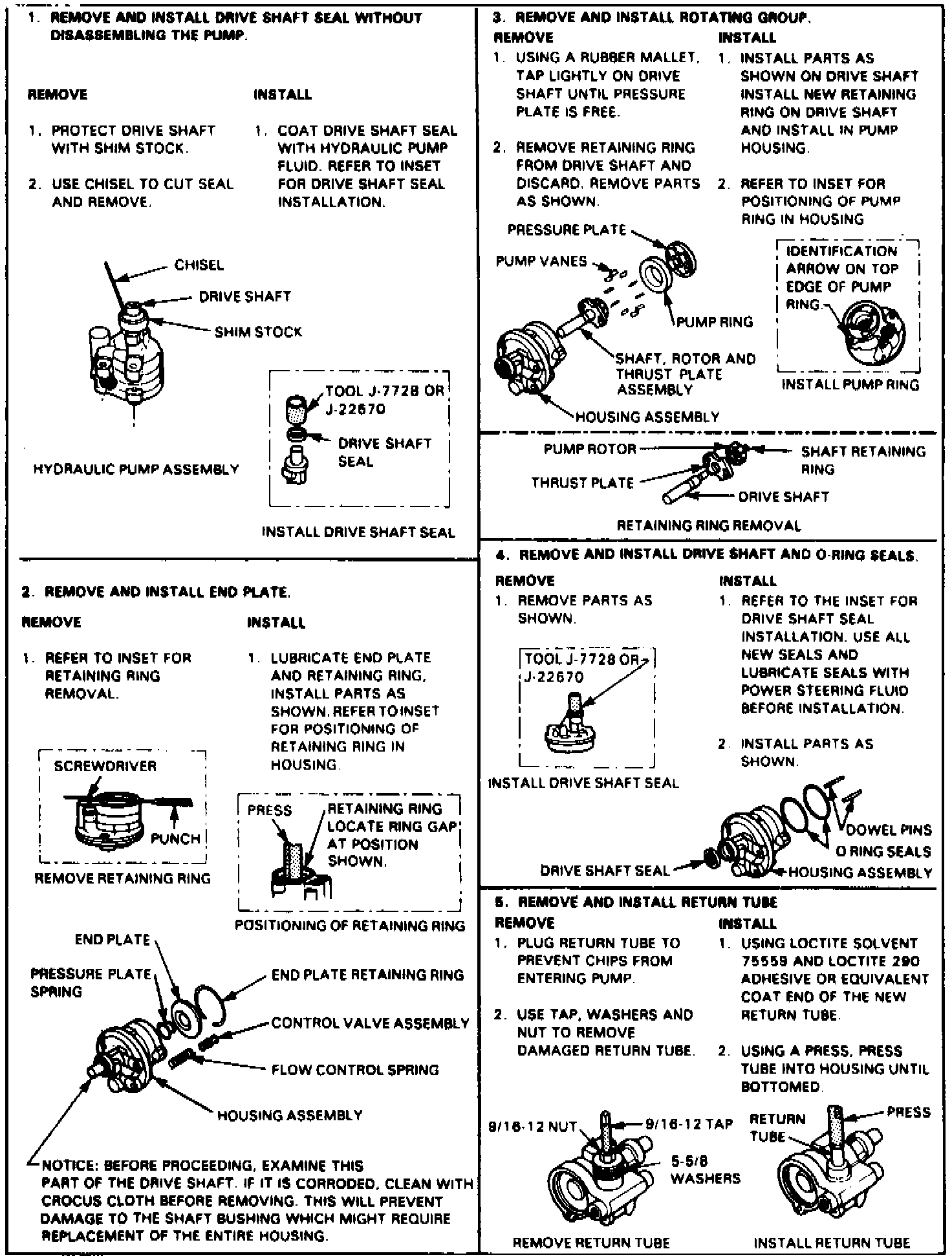

Fig. 9 Power Steering Pump Assembly Overhaul (Part 1 Of 2):

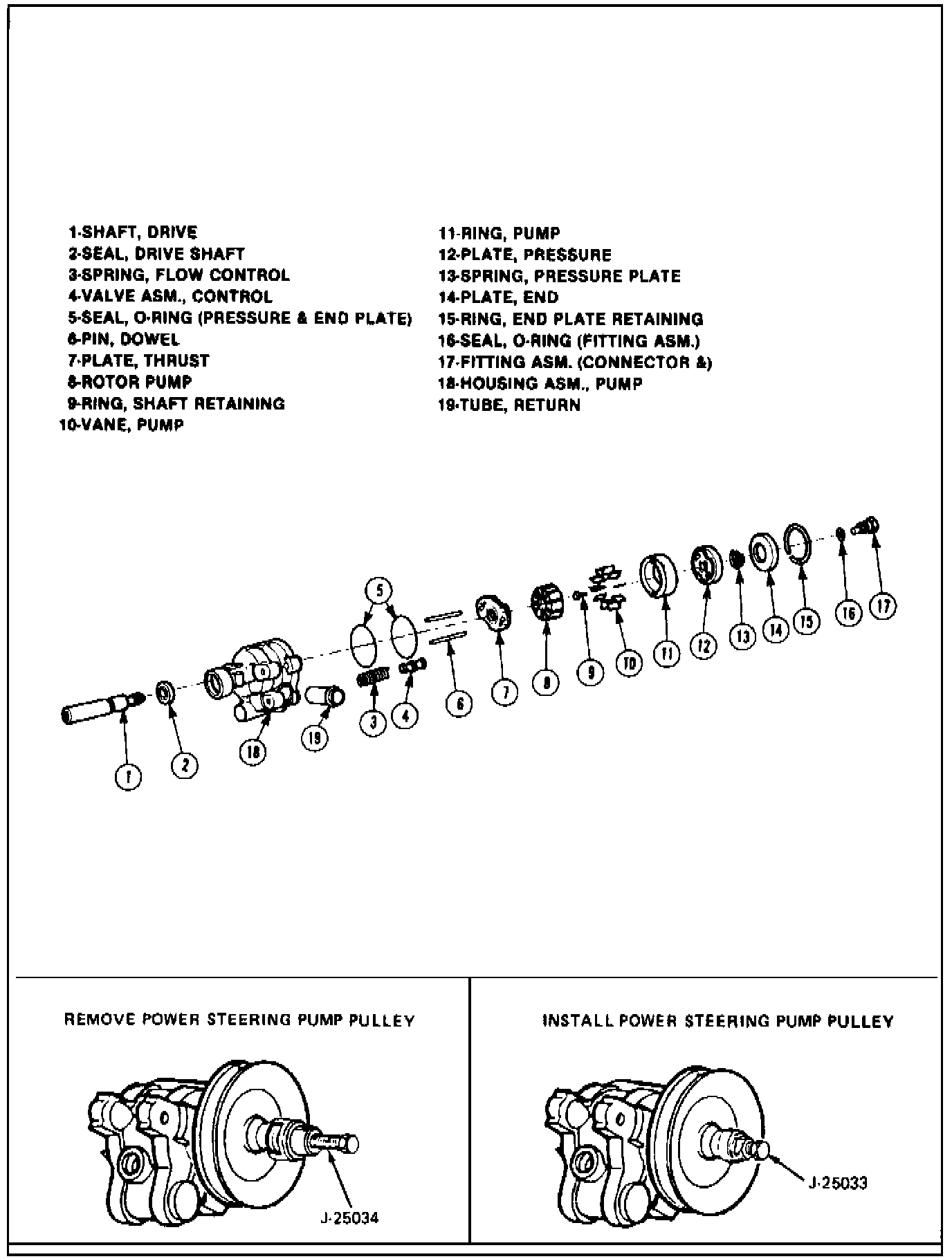

Fig. 9 Power Steering Pump Assembly Overhaul (Part 2 Of 2):
