Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID >> Engine Compartment Power Distribution Center

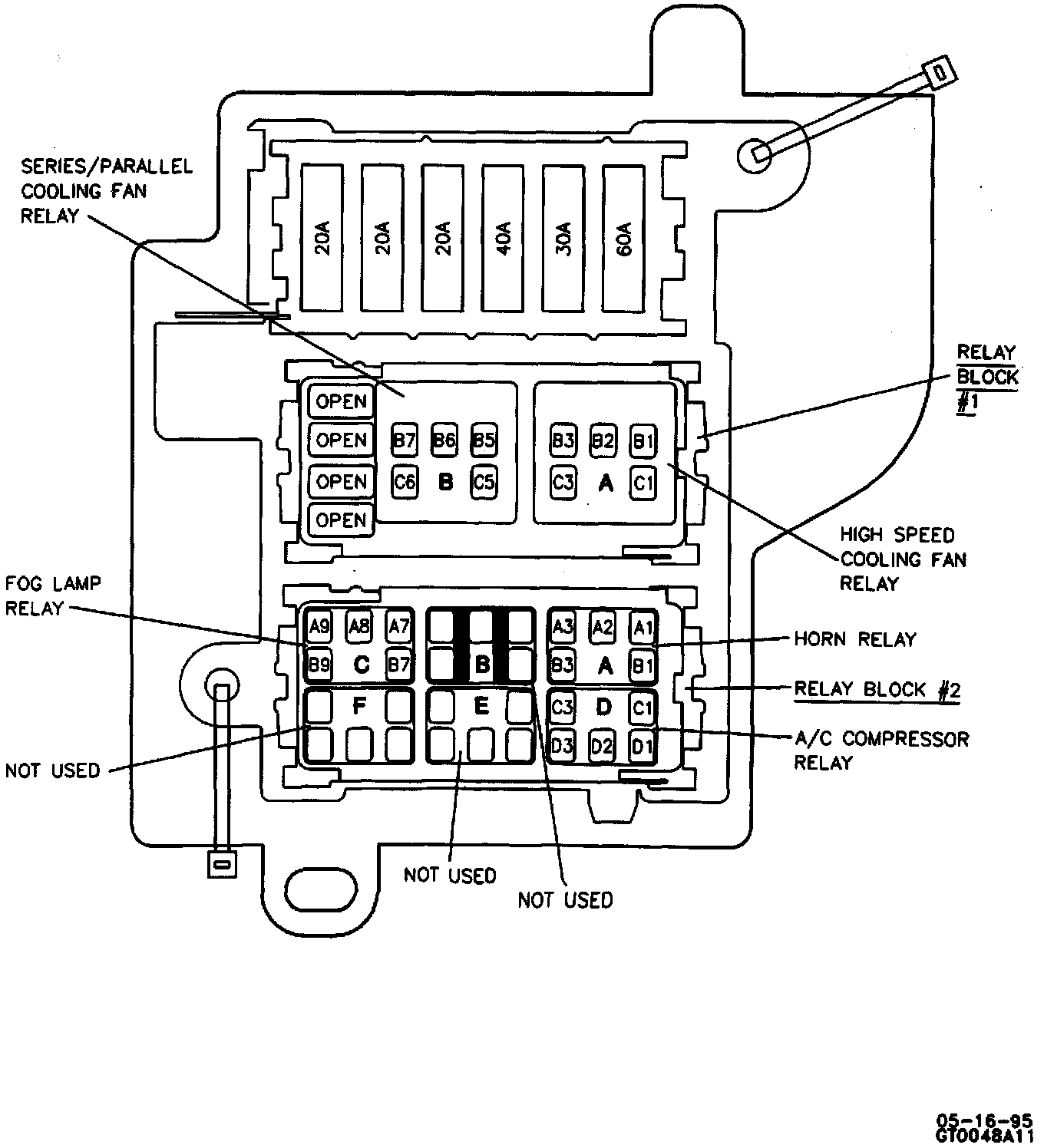

Engine Compartment Power Distribution Center

Engine Compartment Power Distribution Center:
