RH Rear Power Distribution Center Maxi Fuse Block 1 & 2
RH Rear Power Distribution Center Maxi Fuse Block 1 & 2

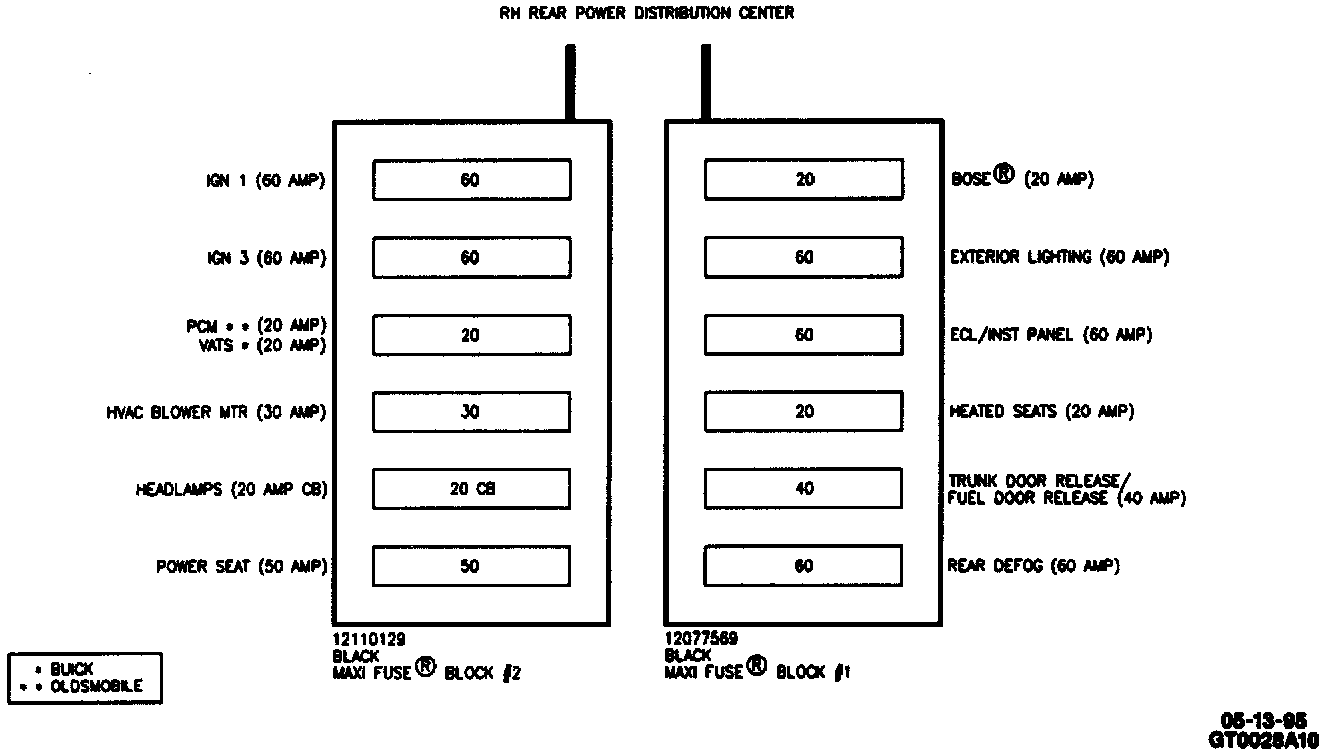

Power Distribution - RH Rear Power Distribution Center Maxi(R) Fuse Block #1 & #2:
