Fuel Pump Fuse, Hazd/Stop LPS Fuse and Int LP Fuse
Fuel Pump Fuse, Hazd/Stop LPS Fuse and Int LP Fuse

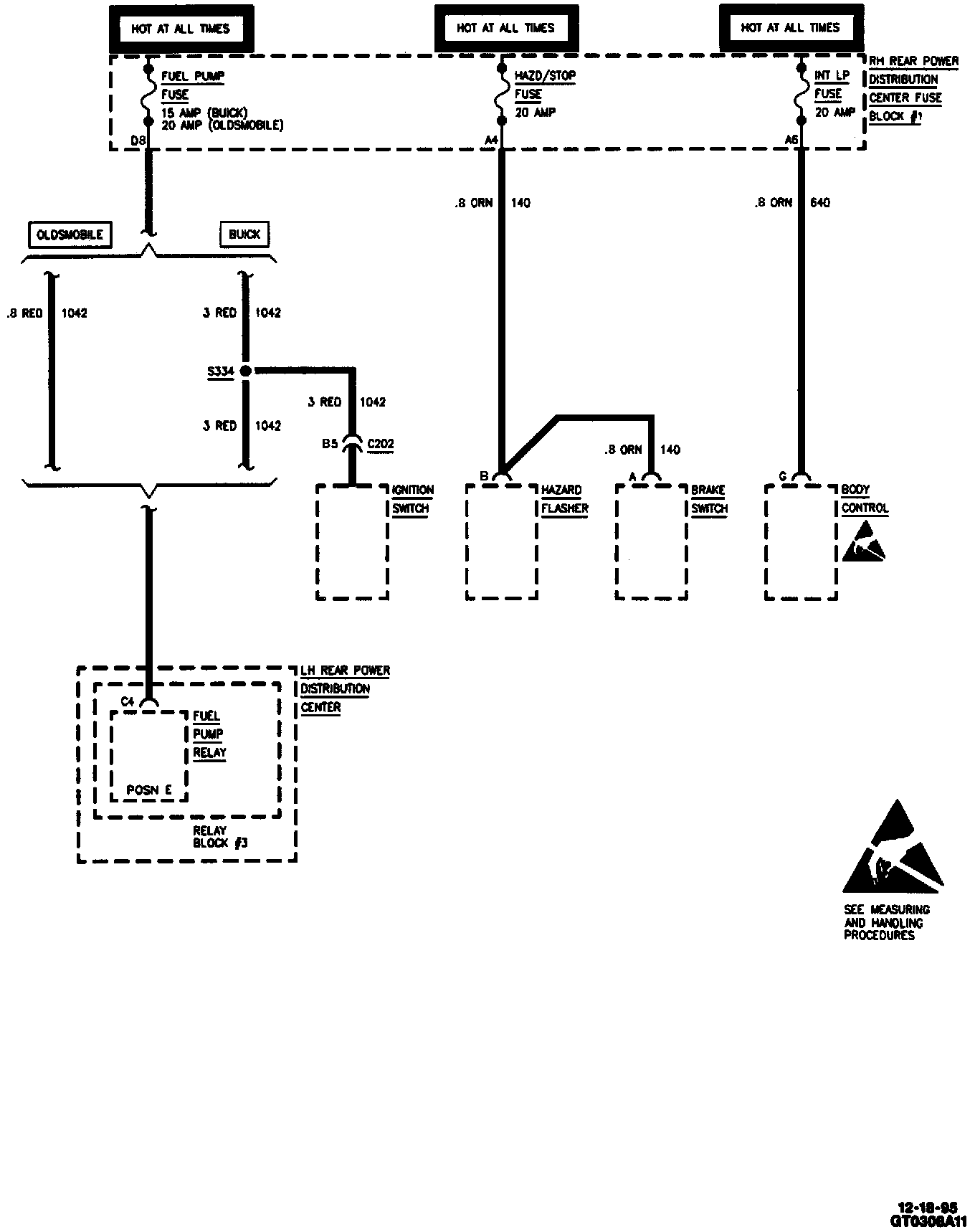

Fuel Pump Fuse (15/20 Amp), HAZD/Stop Fuse (20 Amp) And INT LP Fuse (20 Amp):
