PWR WDO/Sun RF Circuit Breaker and PWR ST Circuit Breaker
PWR WDO/Sun RF Circuit Breaker and PWR ST Circuit Breaker

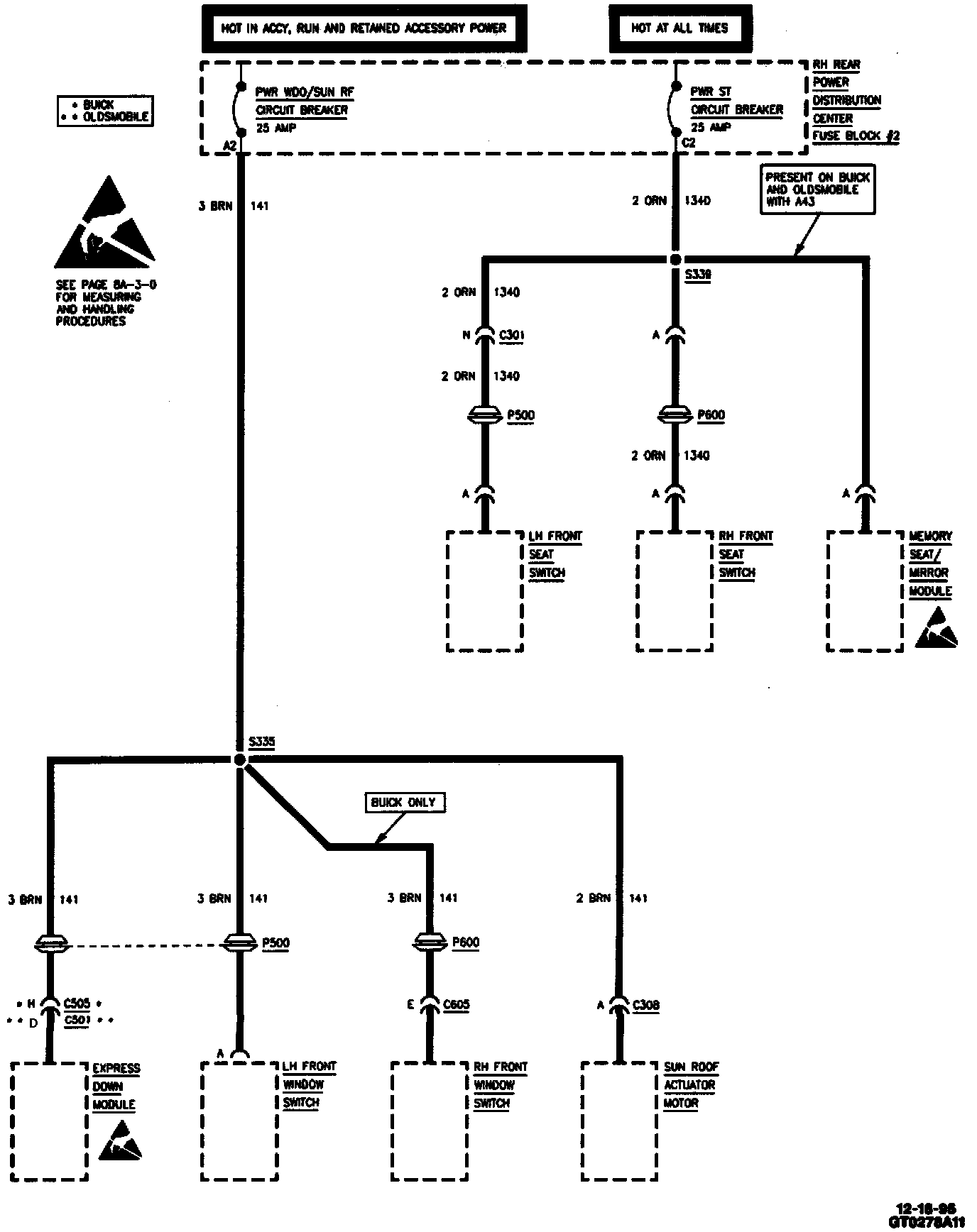

PWR WDO/SUN RF Circuit Breaker (25 Amp) And PWR ST Circuit Breaker (25 Amp):
