Chart 3 Passenger's Seat Belts Does Not Retract
Chart 3 Passenger's Seat Belts Does Not Retract

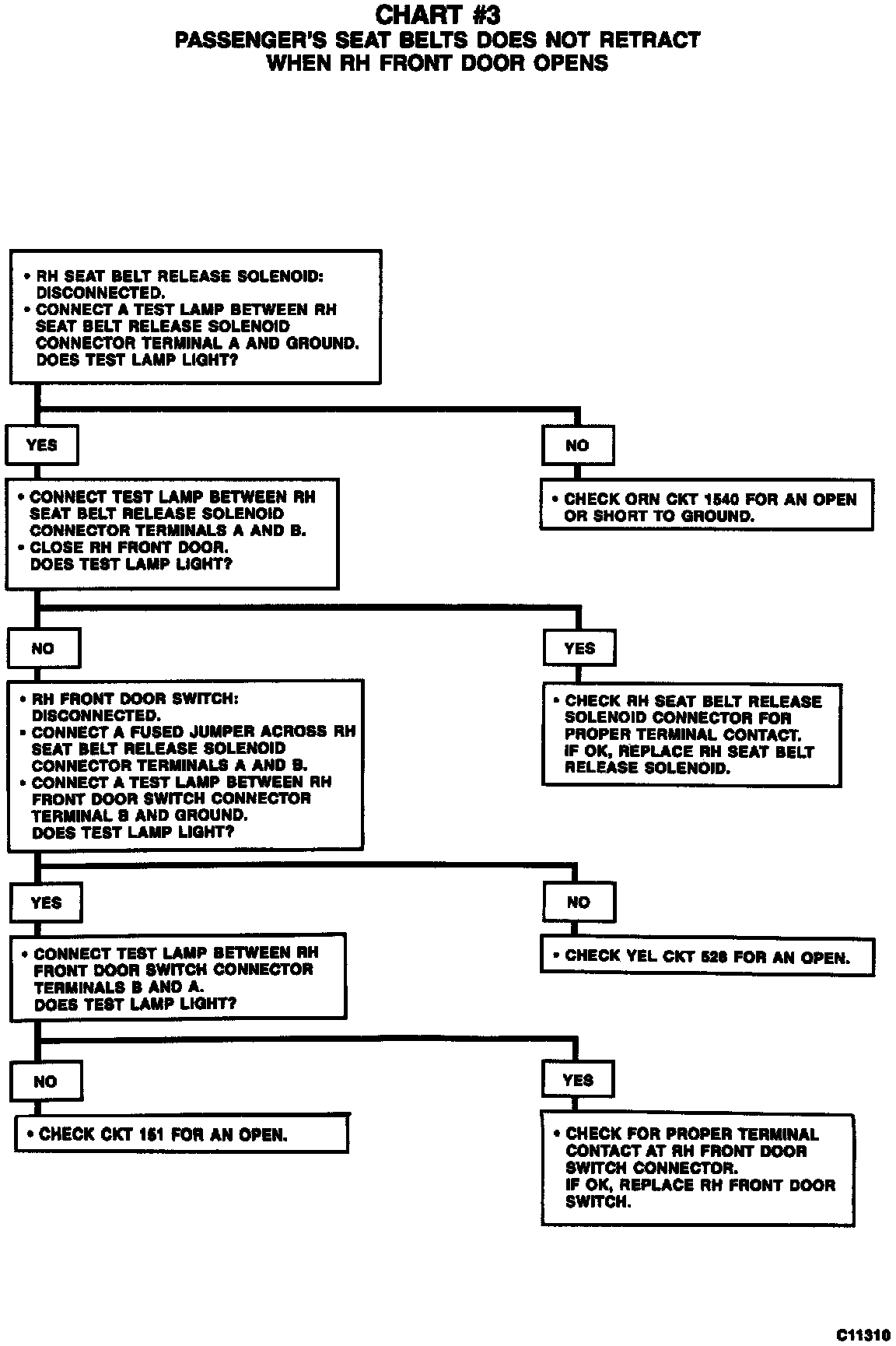

Chart #3 Passenger's Seat Belts Does Not Retract When RH Front Door Opens:
