Knock Sensor Module: Service and Repair

PCM:

Knock Sensor Control Module:

Removal Procedure
1. Remove the PCM.

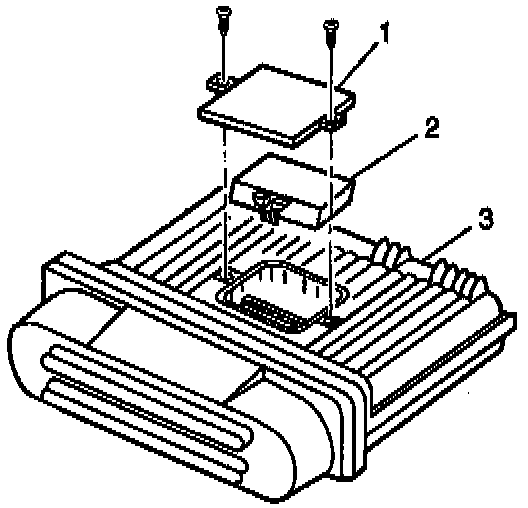

2. Remove the Knock Sensor (KS) Module cover.

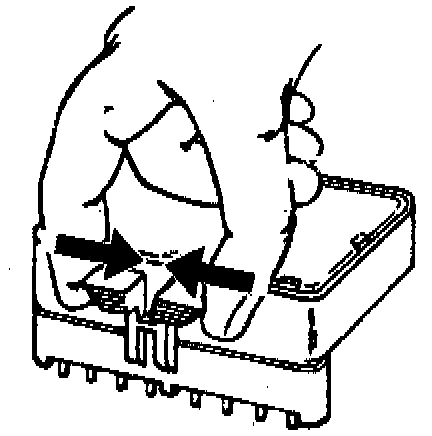

3. Gently squeeze the latches on the KS Module and carefully lift the KS Module out of the PCM.

Installation Procedure
1. Carefully insert the KS module into the socket in the PCM. Carefully press down on the KS Module until the latches engage.
2. Install the KS Module cover to the PCM.
3. Install the PCM.
