Alarm/Lock/Lighting Module - Replacement Procedures

File In Section: 8 - Chassis/Body Electrical

Bulletin No: 53-83-19

Date: October, 1995

SERVICE MANUAL UPDATE

Subject:
Section 8C - Replacement Procedures for Multi-Function Alarm, Lock and Lighting Module (MALL), Starter Enable Relay and Lamp Control Module

Models:
1996 Buick Riviera
1996 Oldsmobile Aurora

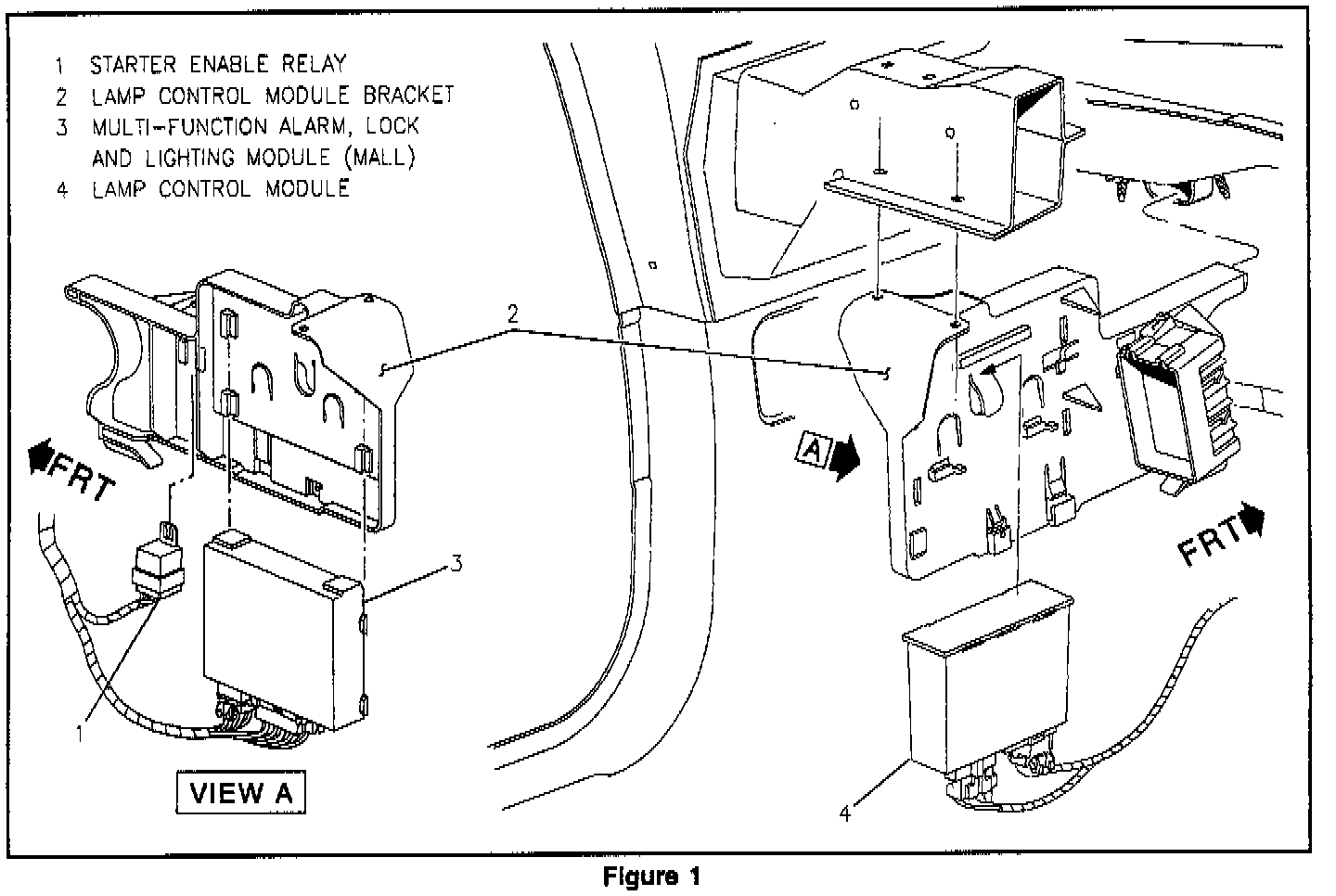

Please insert the following replacement procedures and illustration in Section 80 of the Service Manual.





Multifunction Alarm, Lock and Lighting Module
(MALL)

Remove or Disconnect

1. Left lower I/P insulator, (2) screws, (1) light bulb.
2. Electrical connector(s).
3. MALL module from multi-use bracket. Press down on center tab of mounting bracket and slide MALL module downward until mounting rails disengage.

Install or Connect

1. MALL module to multi-use bracket.

^ Align mounting rails on module with mounting bracket rails.
^ Slide module forward into place until locking tab engages.

2. Electrical connector(s).
3. Left lower I/P insulator.

Starter Enable Relay
Remove or Disconnect

1. Left lower I/P insulator, (2) screws, (1) light bulb.
2. Electrical connector(s).

Slide starter enable relay from bracket.

Install or Connect

1. Slide starter enable relay onto bracket.
2. Electrical connector(s).
3. Left lower I/P insulator.

Lamp Control Module

Remove or Disconnect

1. Left lower I/P insulator, (2) screws, (1) light bulb.
2. Electrical connector(s).
3. Lamp control module from multi-use bracket. Press down on center tab of mounting bracket and slide module downward until mounting rails disengage.

Install or Connect

1. Lamp control module to multi-use bracket.

^ Align mounting rails on module with mounting bracket rails.
^ Slide module forward into place until locking tab engages.

2. Electrical connector(s).
3. Left lower I/P insulator.
