Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Fuel Trim 1 Data

Fuel Trim 1 Data

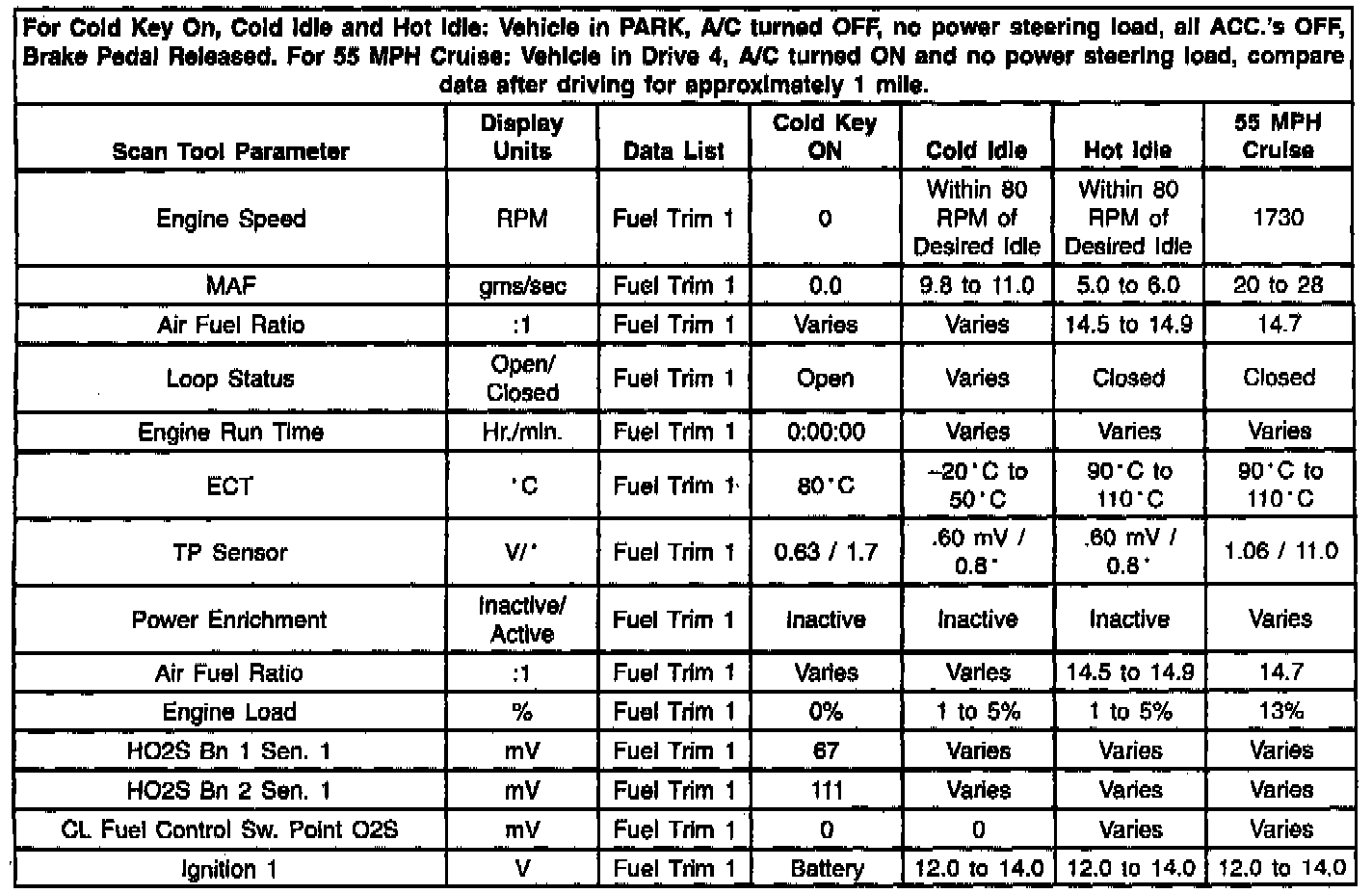

Part 1 Of 3:

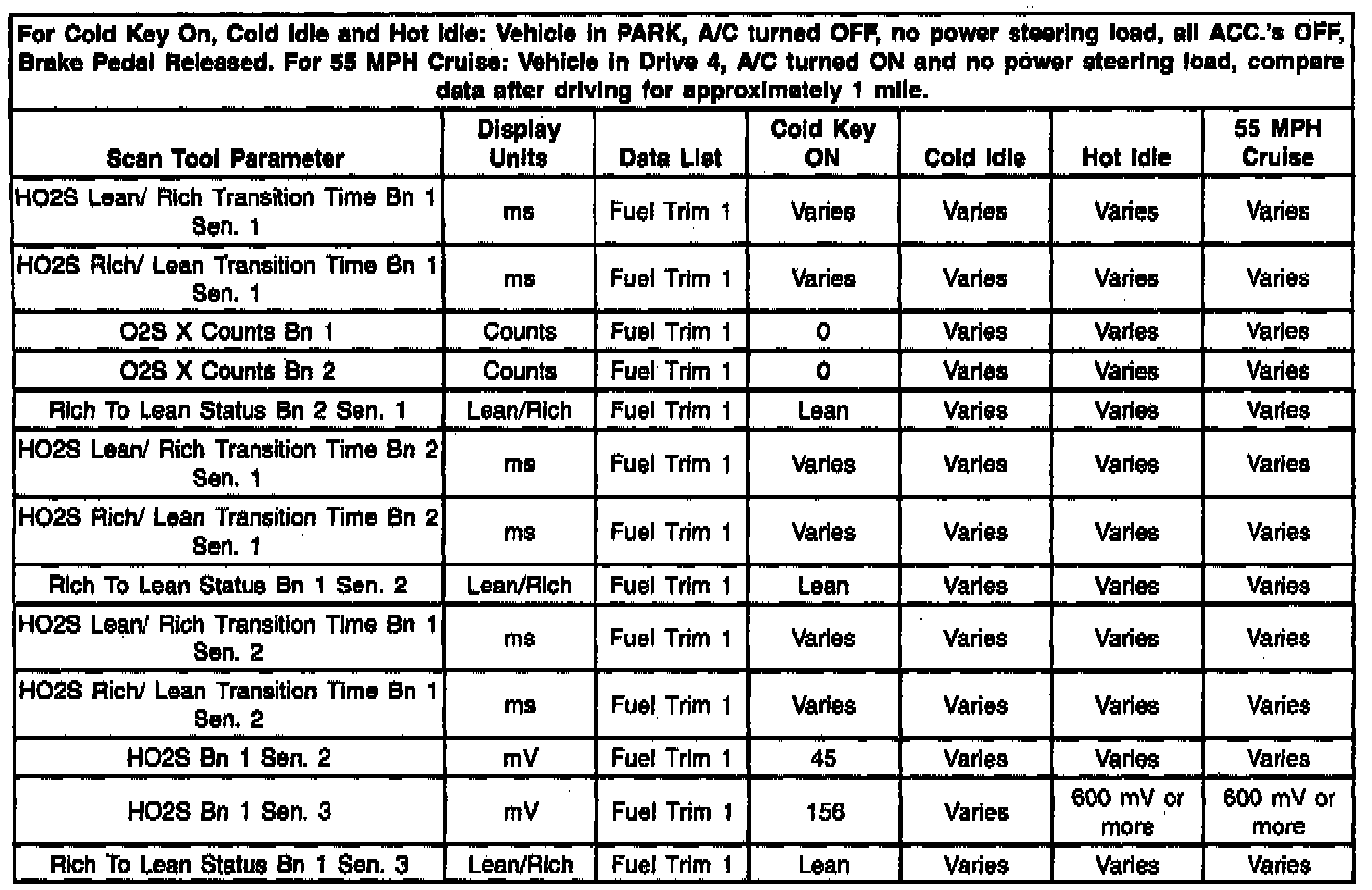

Part 2 Of 3:

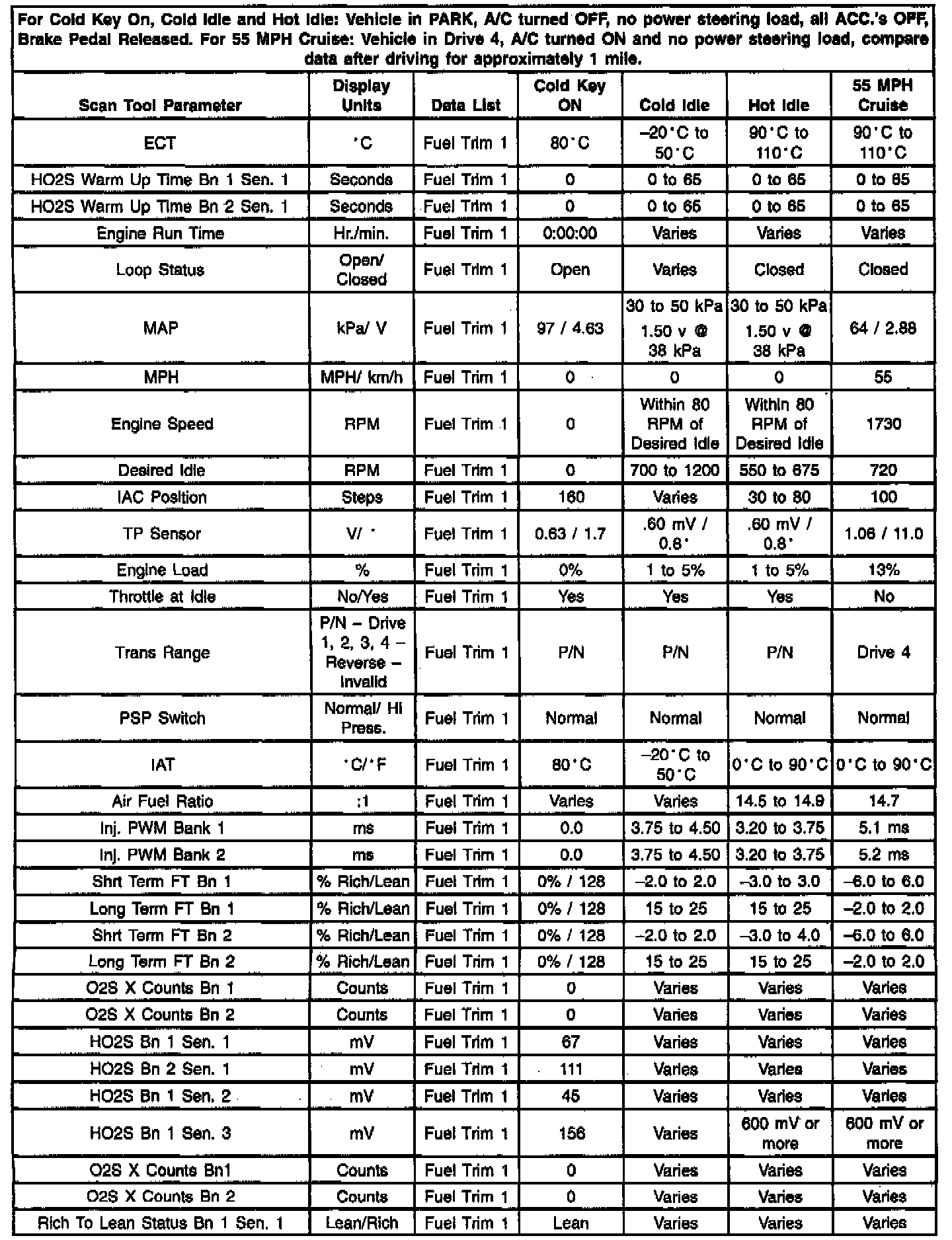

Part 3 Of 3:
