Idle Speed Control Check

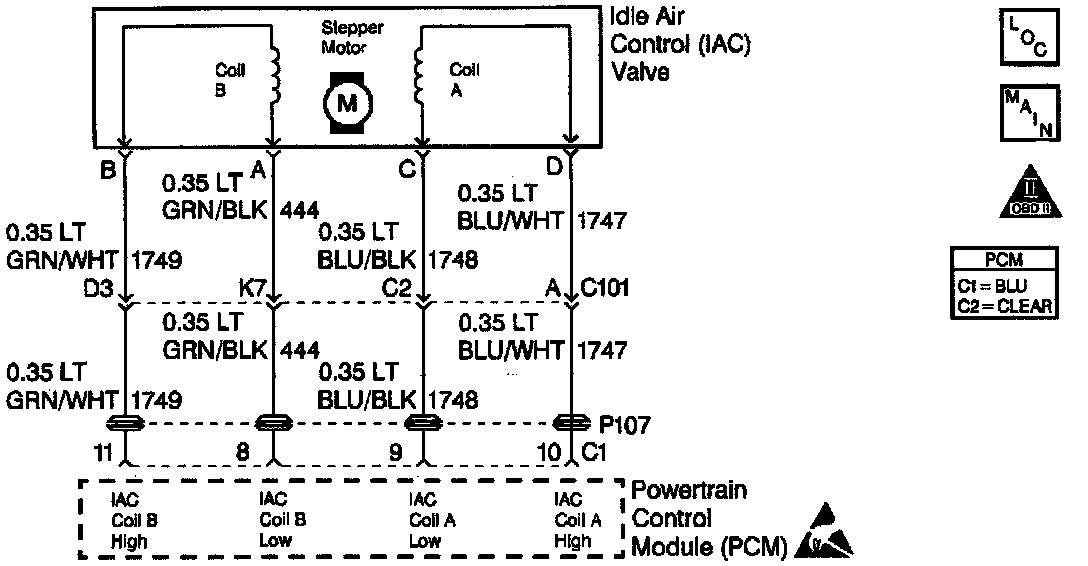

Circuit Description
The Idle Speed Control Check verifies proper IAC valve operation.

Test Description

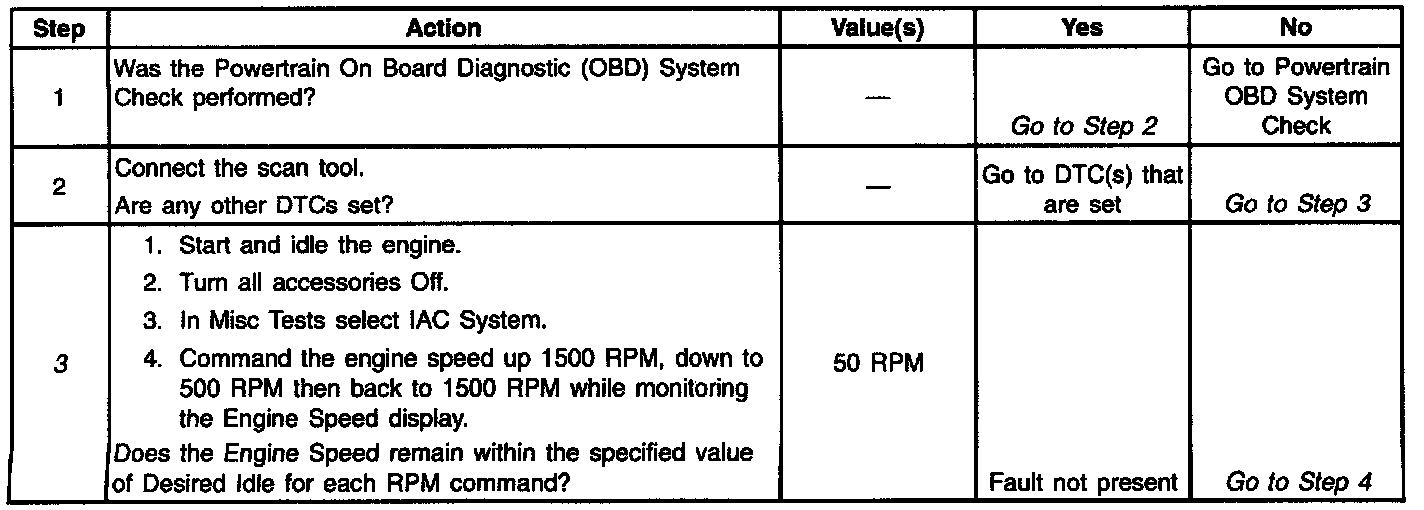

Number(s) below refer to the step number(s) on the Diagnostic Table.

3. This check test the IAC valve to make sure that it is moving in and out without binding.

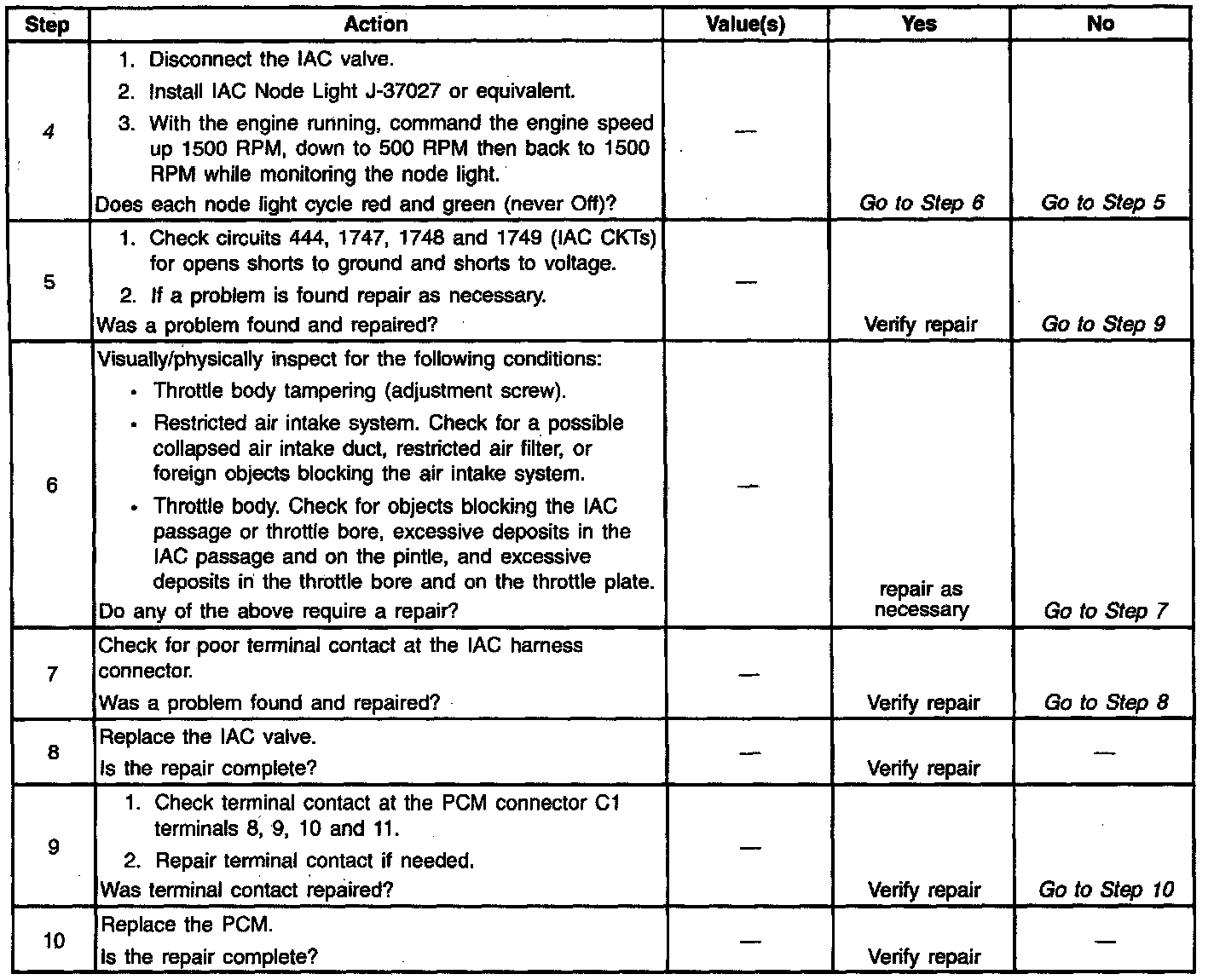

4. This procedure checks the circuits to determine if one or more is open or shorted.
