Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Battery Temperature Sensor >> Locations >> Connector Locations

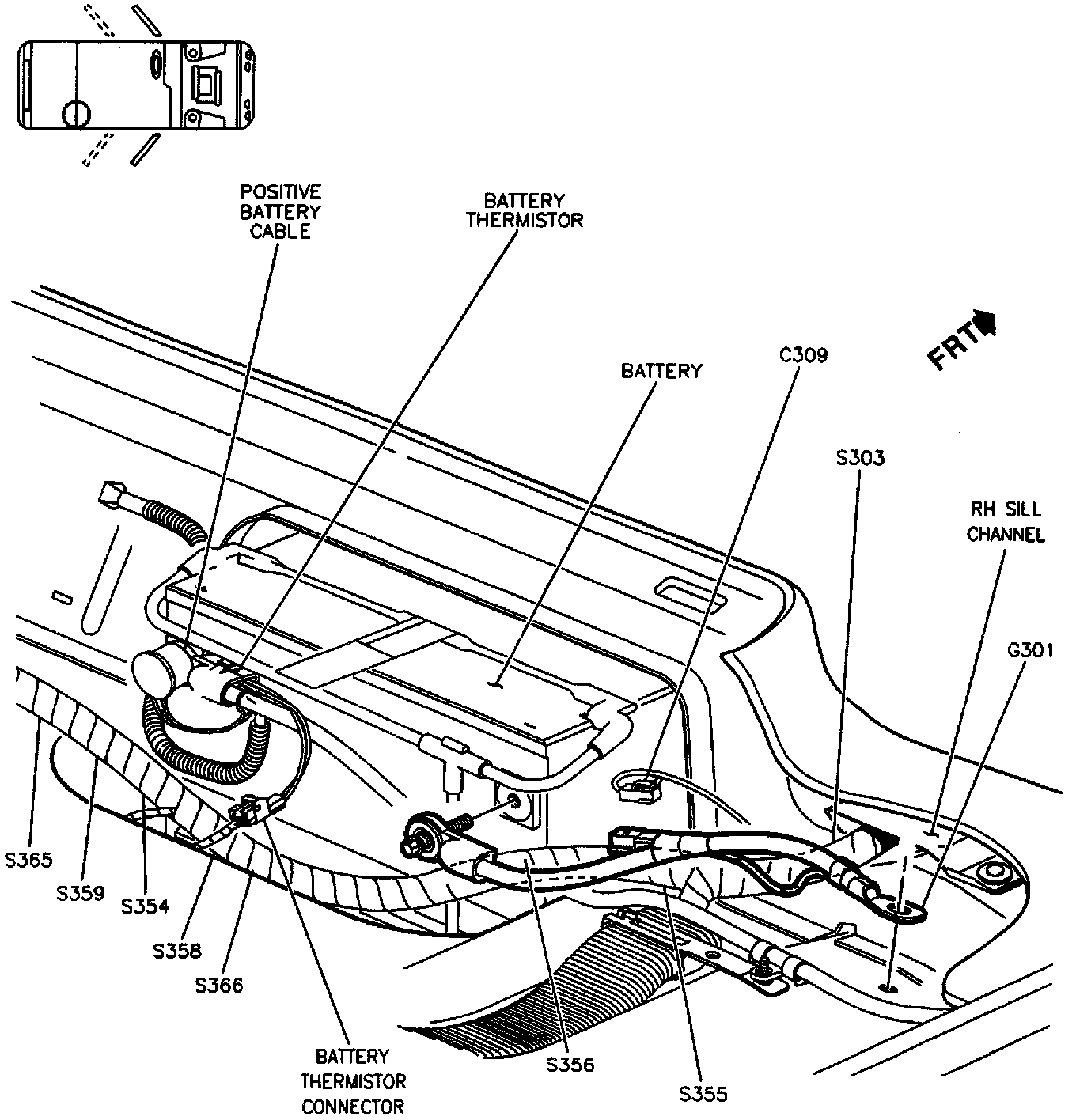

Connector Locations

Rear Of Passenger Compartment, Under Rear Seat Cushion:
