Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Engine Compartment Power Distribution Center Maxi Fuse Block

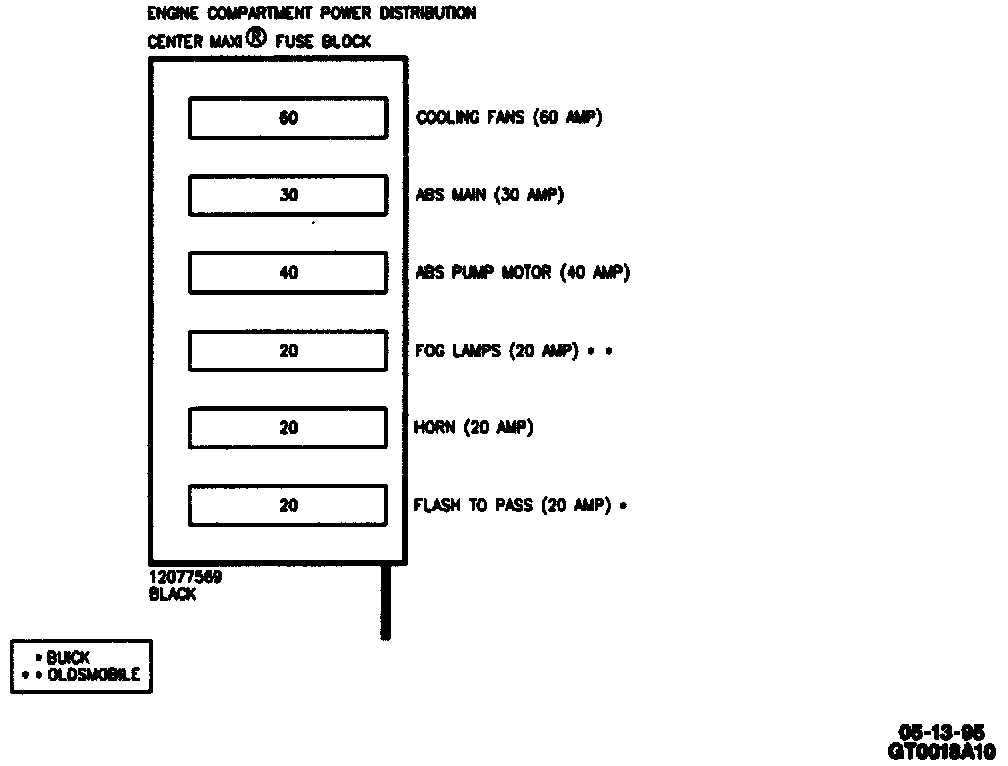

Engine Compartment Power Distribution Center Maxi Fuse Block

Power Distribution - Engine Compartment Power Distribution Center Maxi(R) Fuse Block:
