I/P 2 Fuse, Park LP Fuse and ELC Fuse
I/P 2 Fuse, Park LP Fuse and ELC Fuse

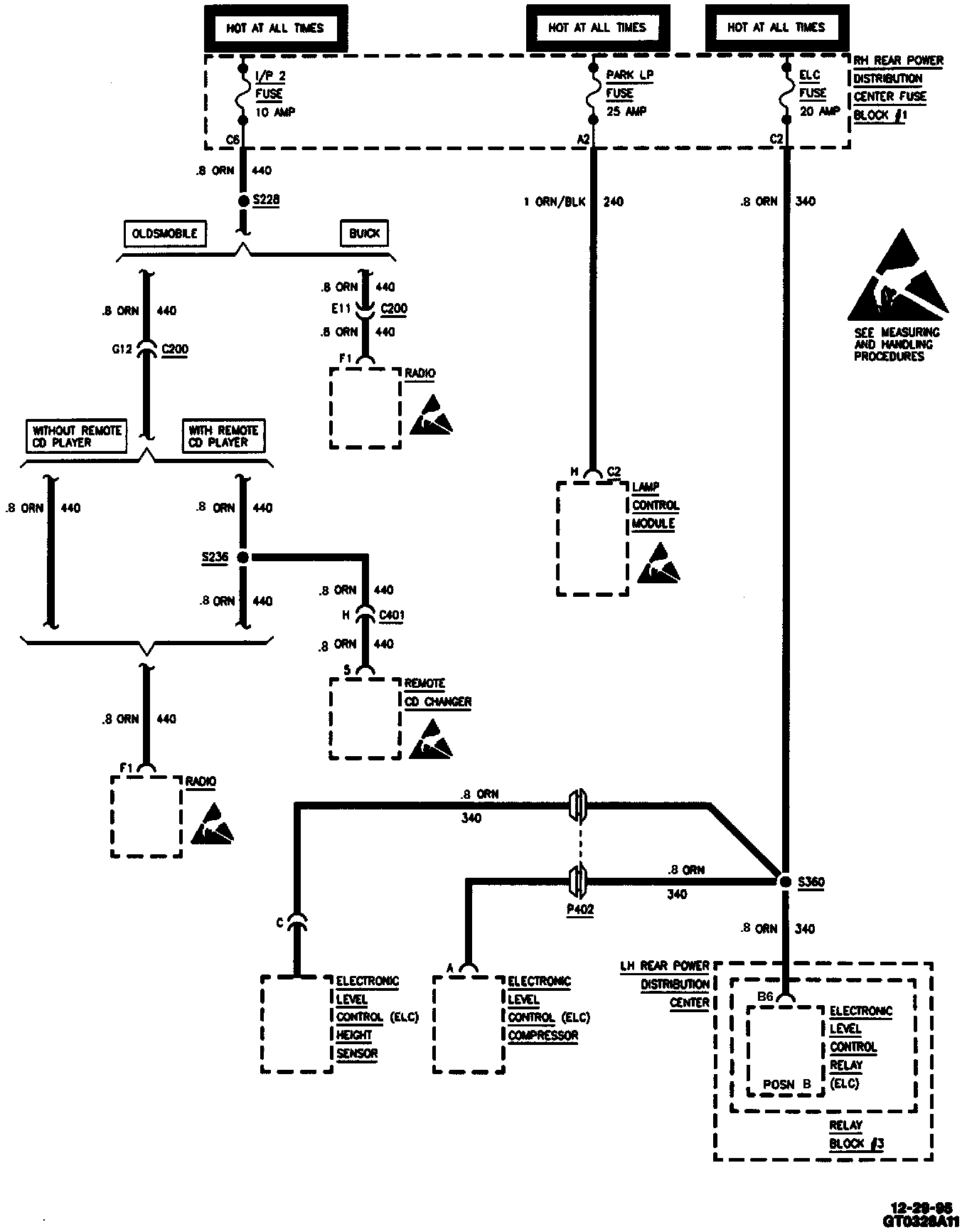

I/P 2 Fuse (10 Amp), Park LP Fuse (25 Amp) And ELC Fuse (20 Amp):
