RH Marker/License/Tail/Park Lamps

Exterior Lamps:

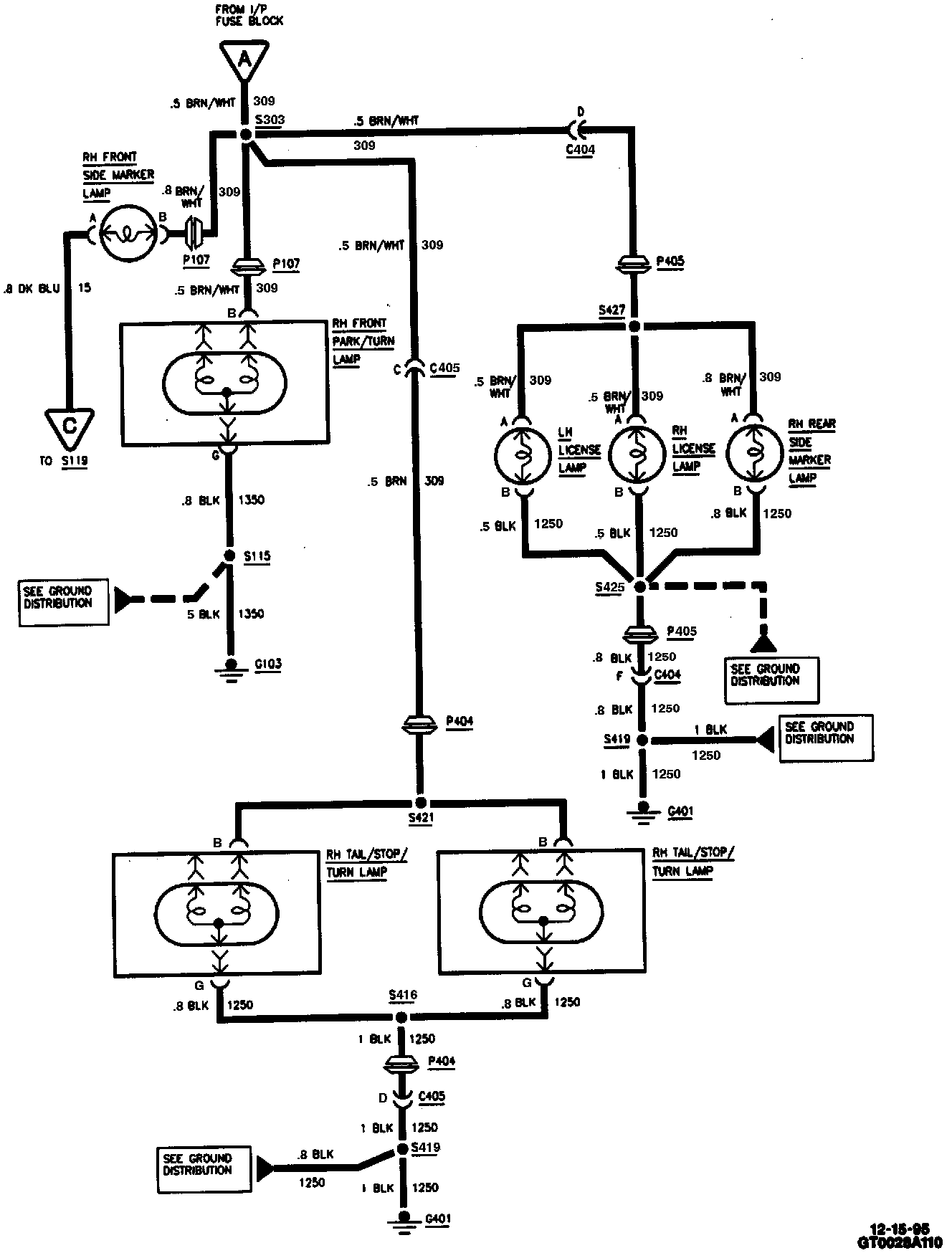

Exterior Lamps - RH Marker/License/Tail/Park Lamps:
