Chart 2 Instrument Cluster Does Not Appear to Function
Chart 2 Instrument Cluster Does Not Appear to Function

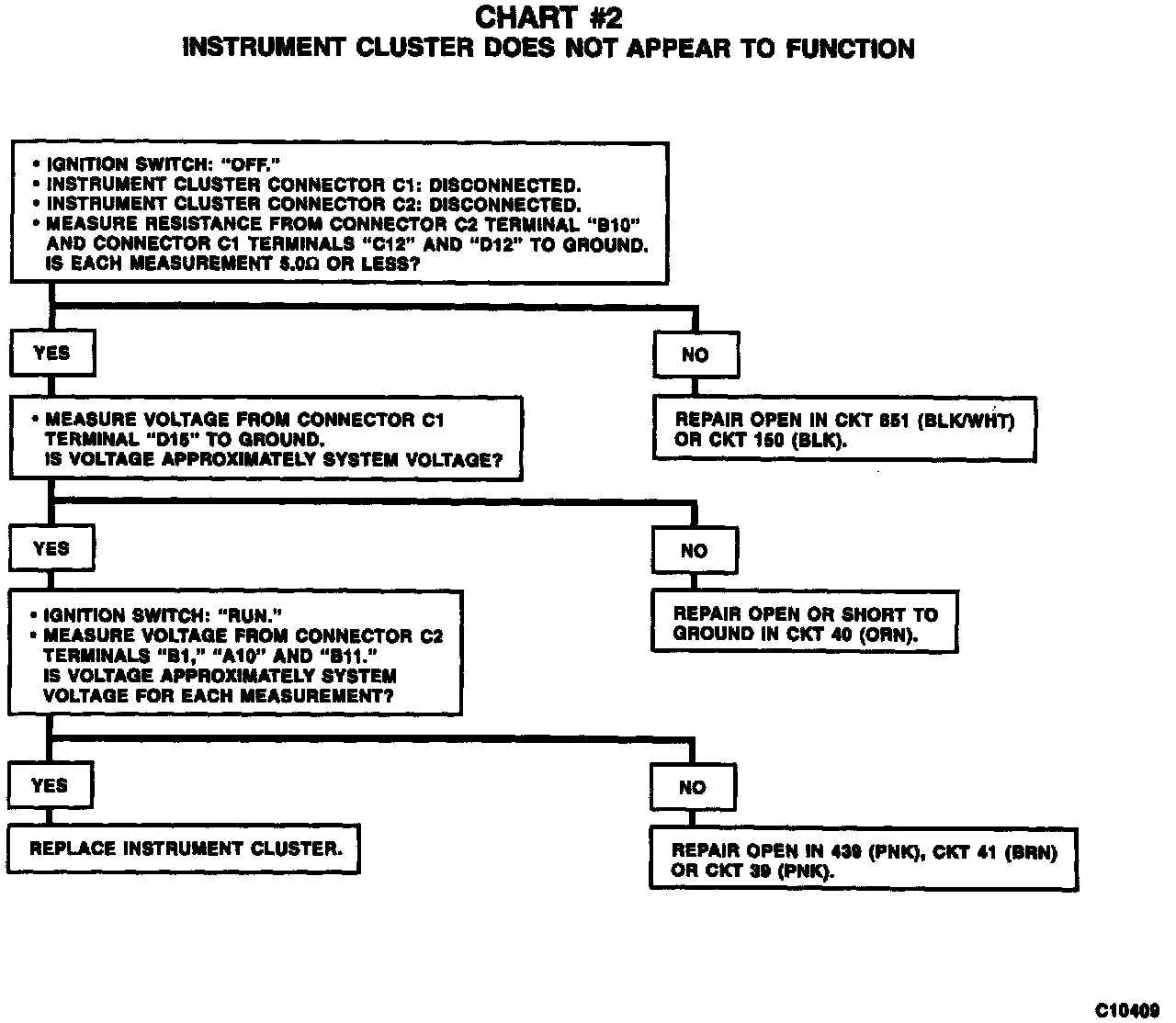

Chart #2 Instrument Cluster Does Not Appear To Function:
