UART B Sdl Problem

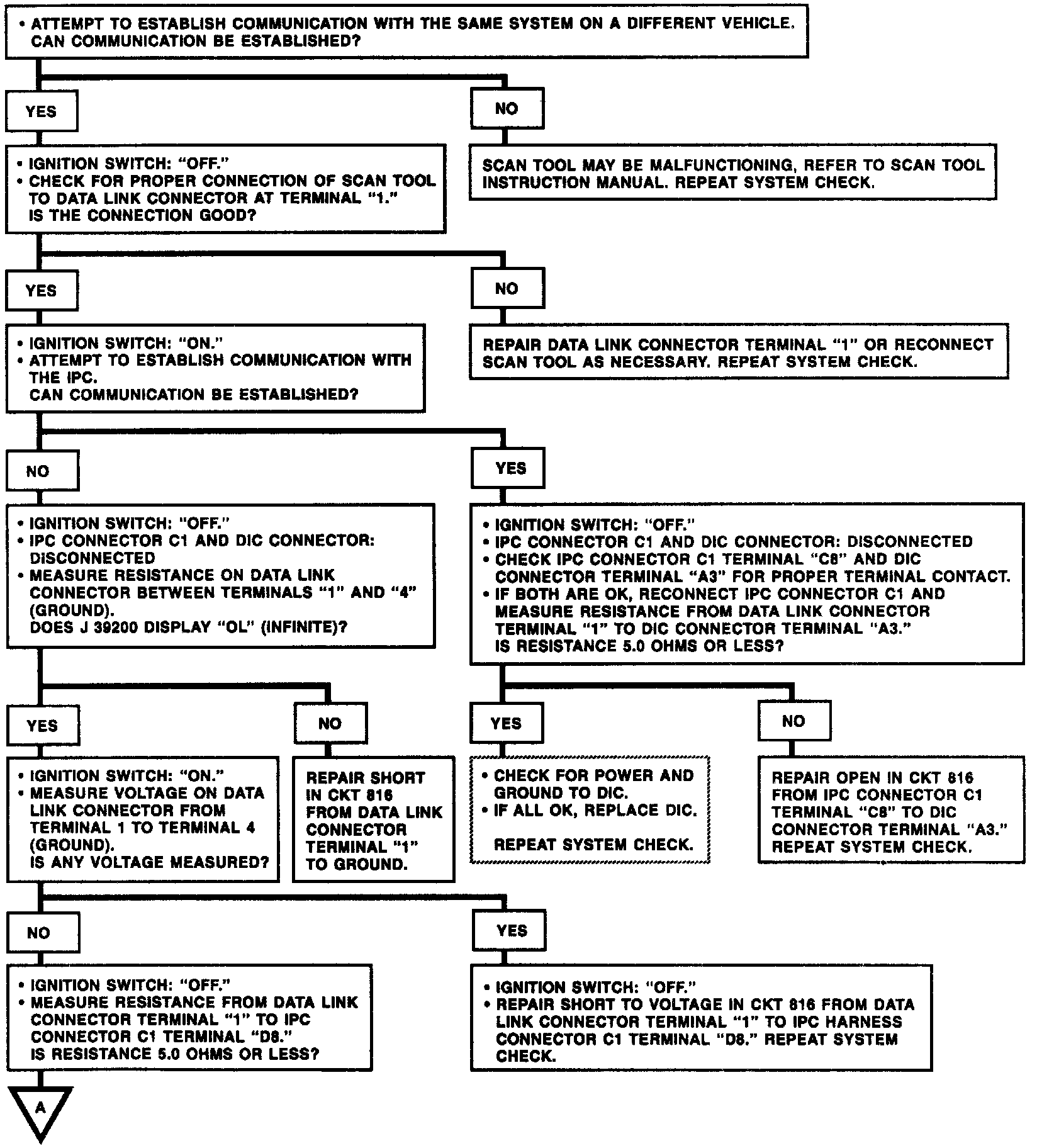

Fig. 27 Chart 11: UART B SDL Problem (Part 1 Of 2):

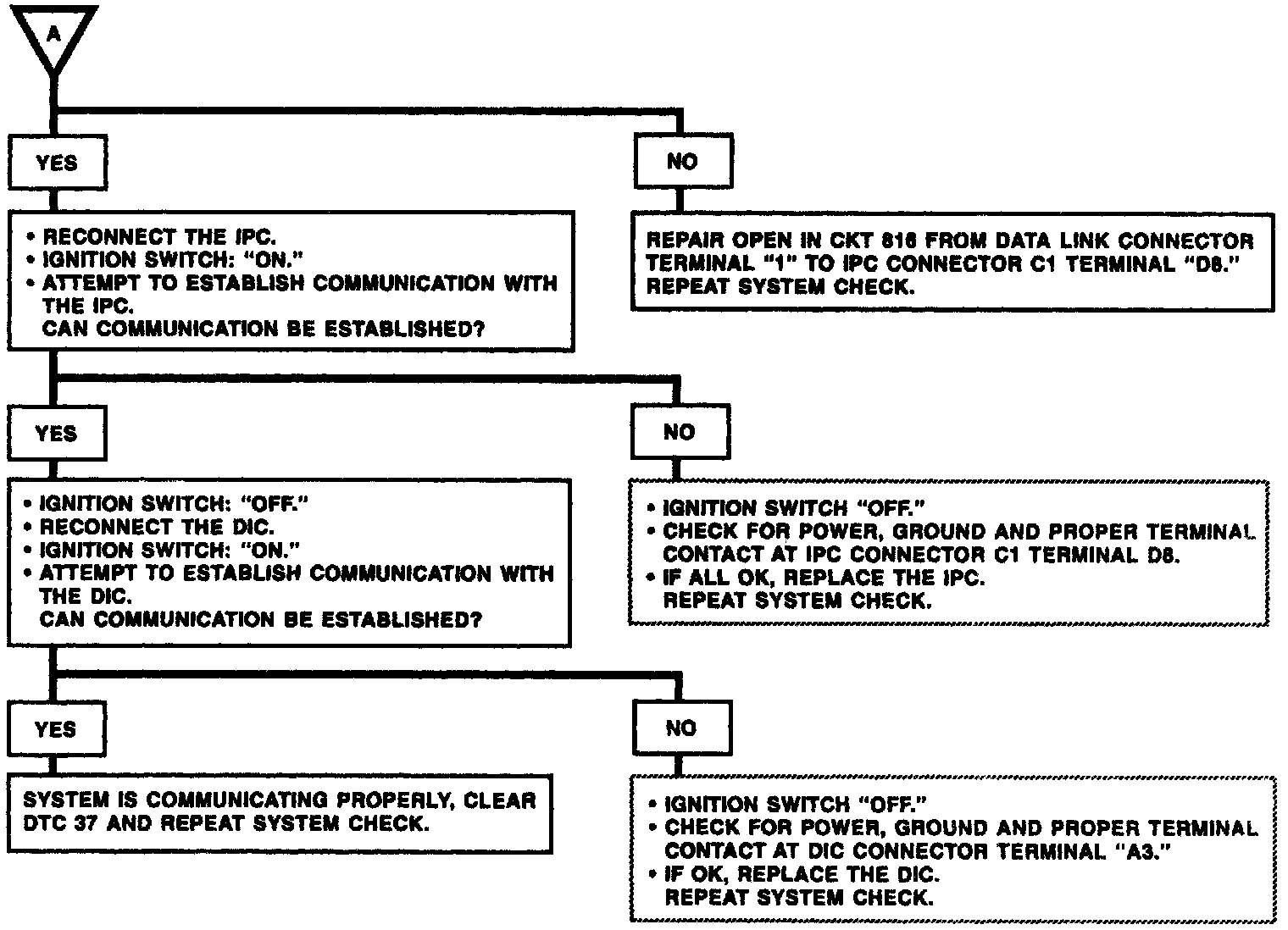

Fig. 27 Chart 11: UART B SDL Problem (Part 2 Of 2):
