Instrument Cluster Does Not Appear to Function

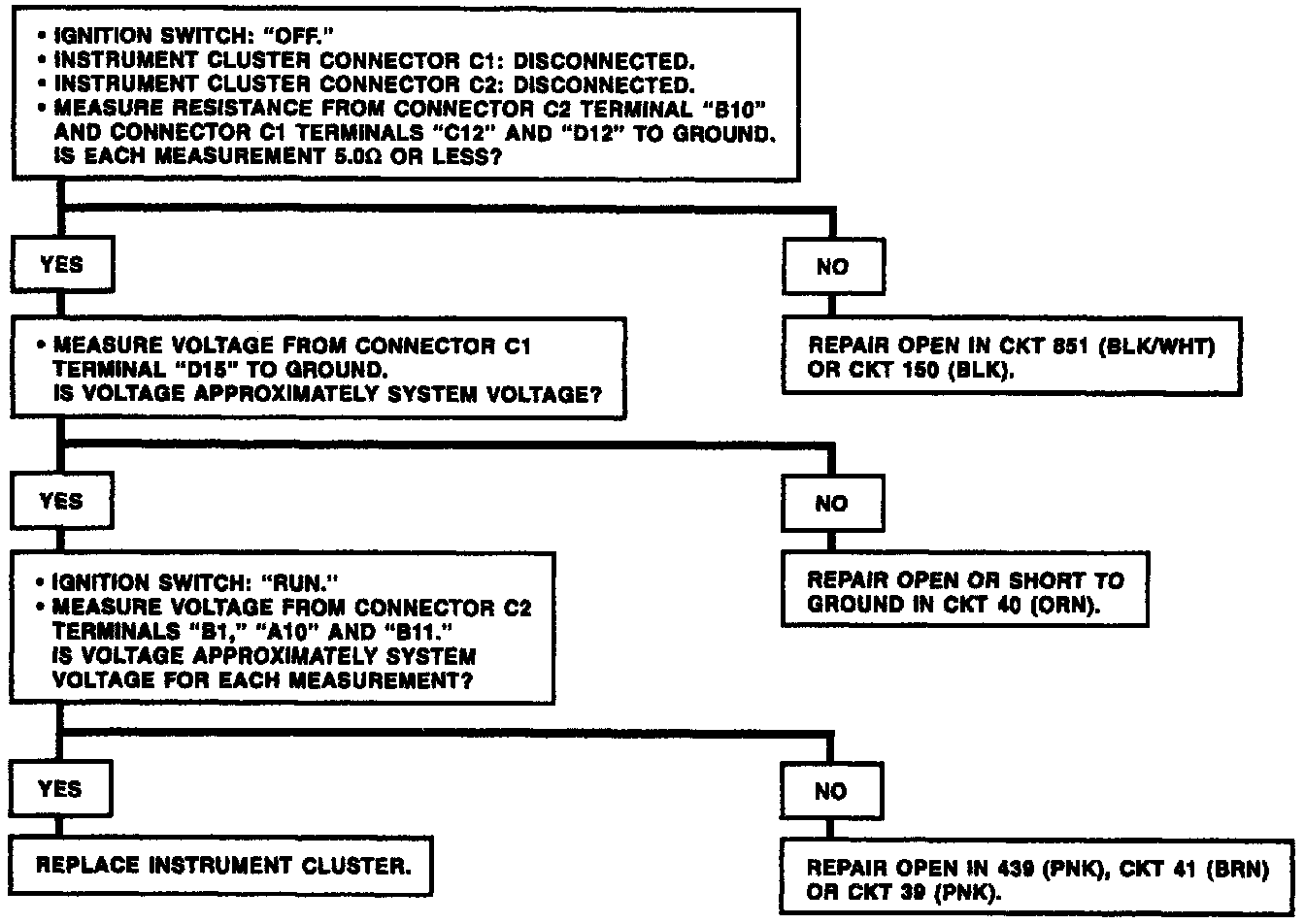

Fig. 17 Chart 1: Instrument Cluster Does Not Appear To Function:

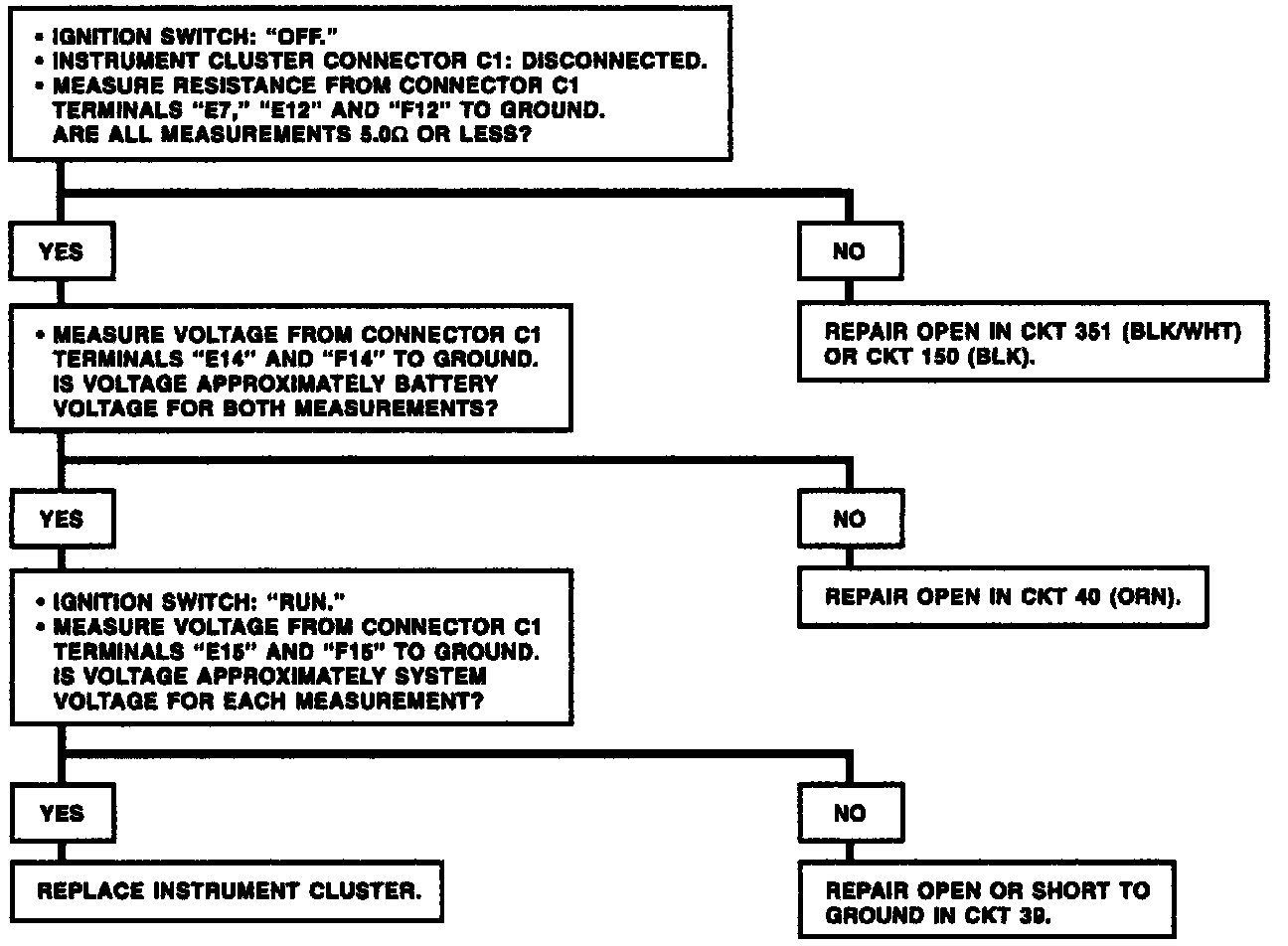

Fig. 18 Chart 2: Instrument Cluster Does Not Appear To Function:

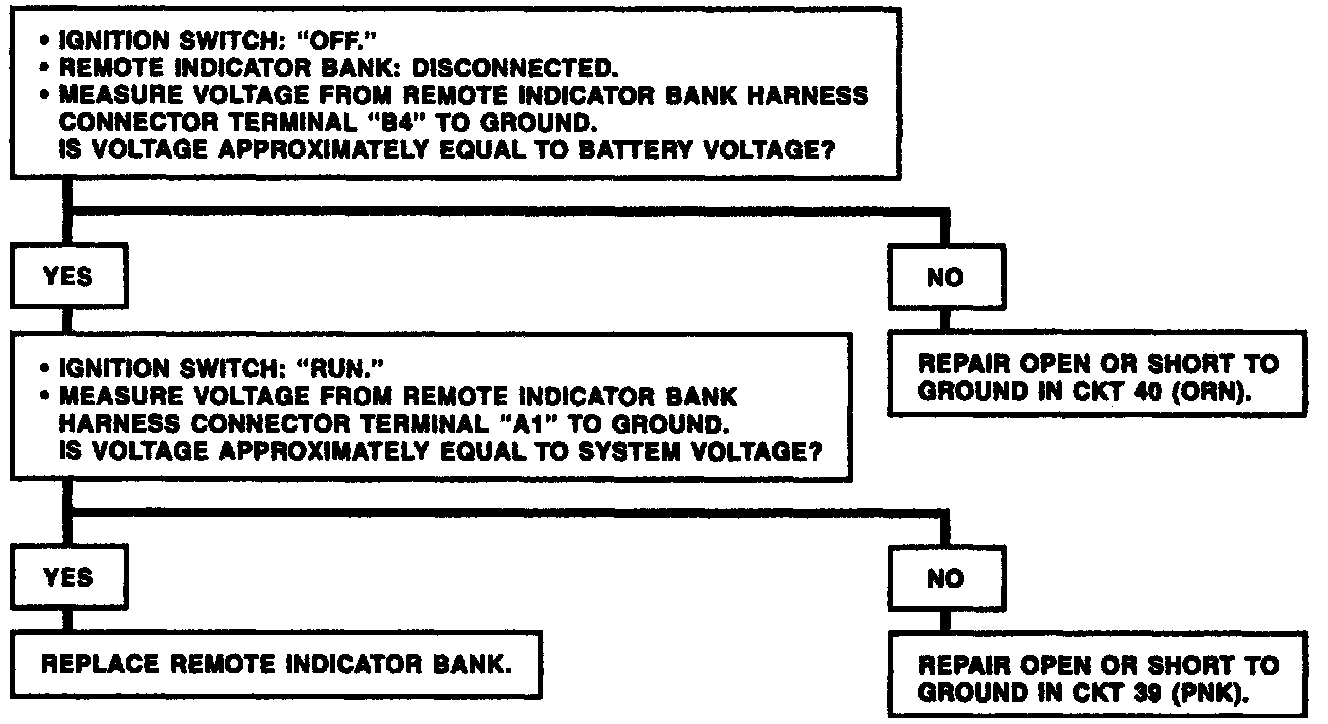

Fig. 19 Chart 3: Remote Indicator Bank Does Not Appear To Function:
