Component Diagnostic Charts - Gauge Cluster
Component Diagnostic Charts - Gauge Cluster

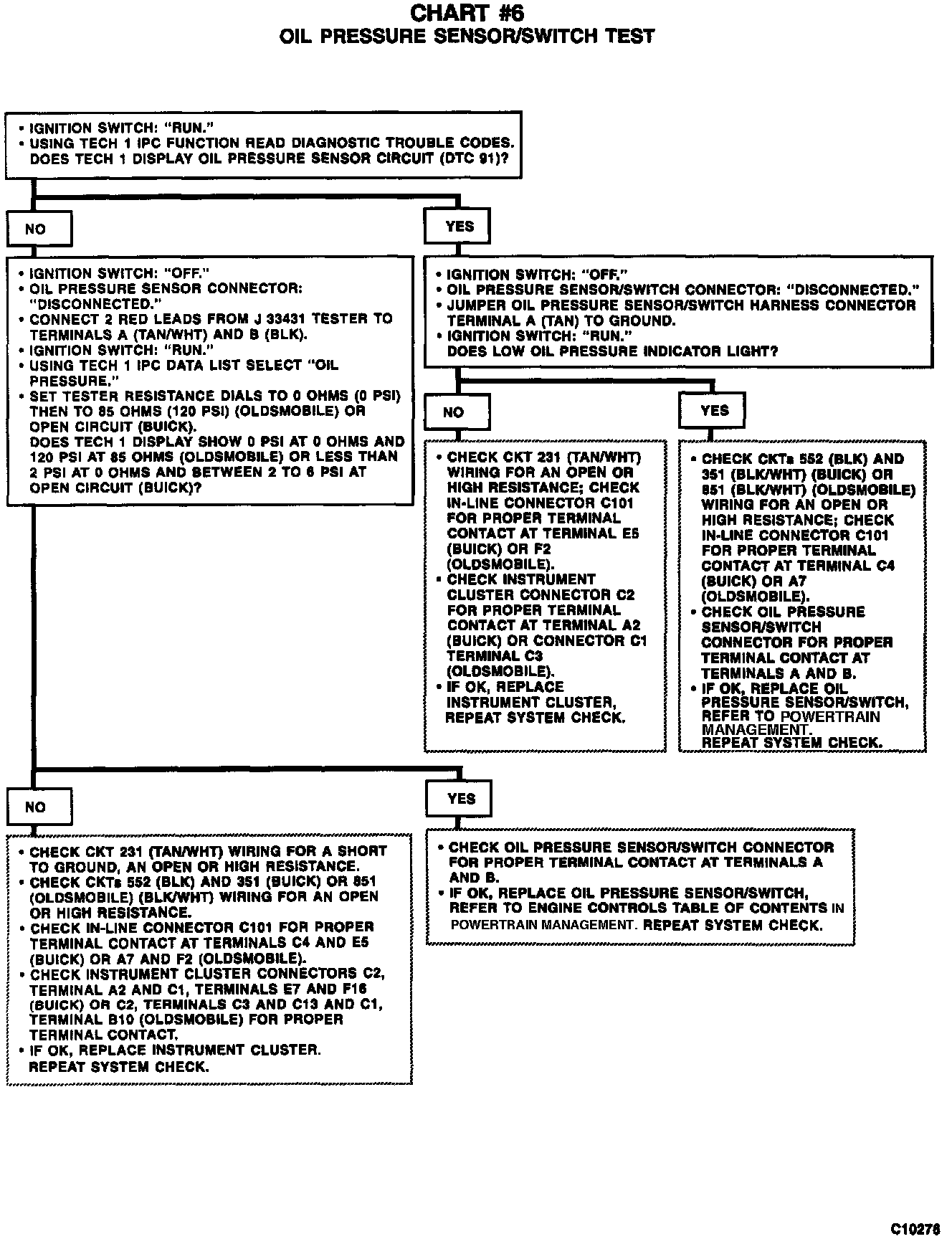

Chart #6 Oil Pressure Sensor/Switch Test:
