Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Fuel Gauge >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Fuel Gage Does Not Operate Properly

Fuel Gage Does Not Operate Properly

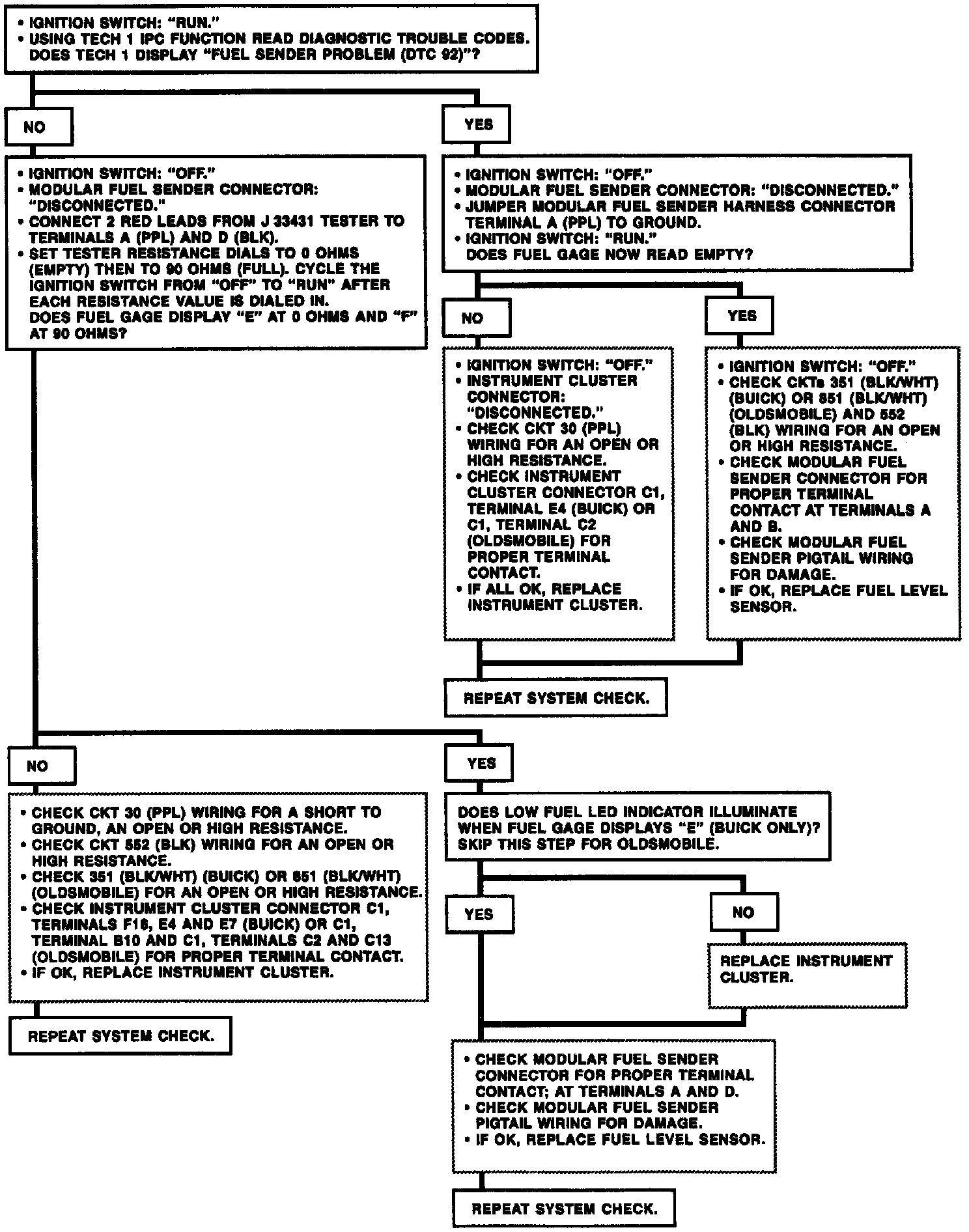

Fig. 21 Chart 5: Fuel Gauge Does Not Operate Properly:
