Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom Charts >> Chart 4 Key Input Test (Key Out)

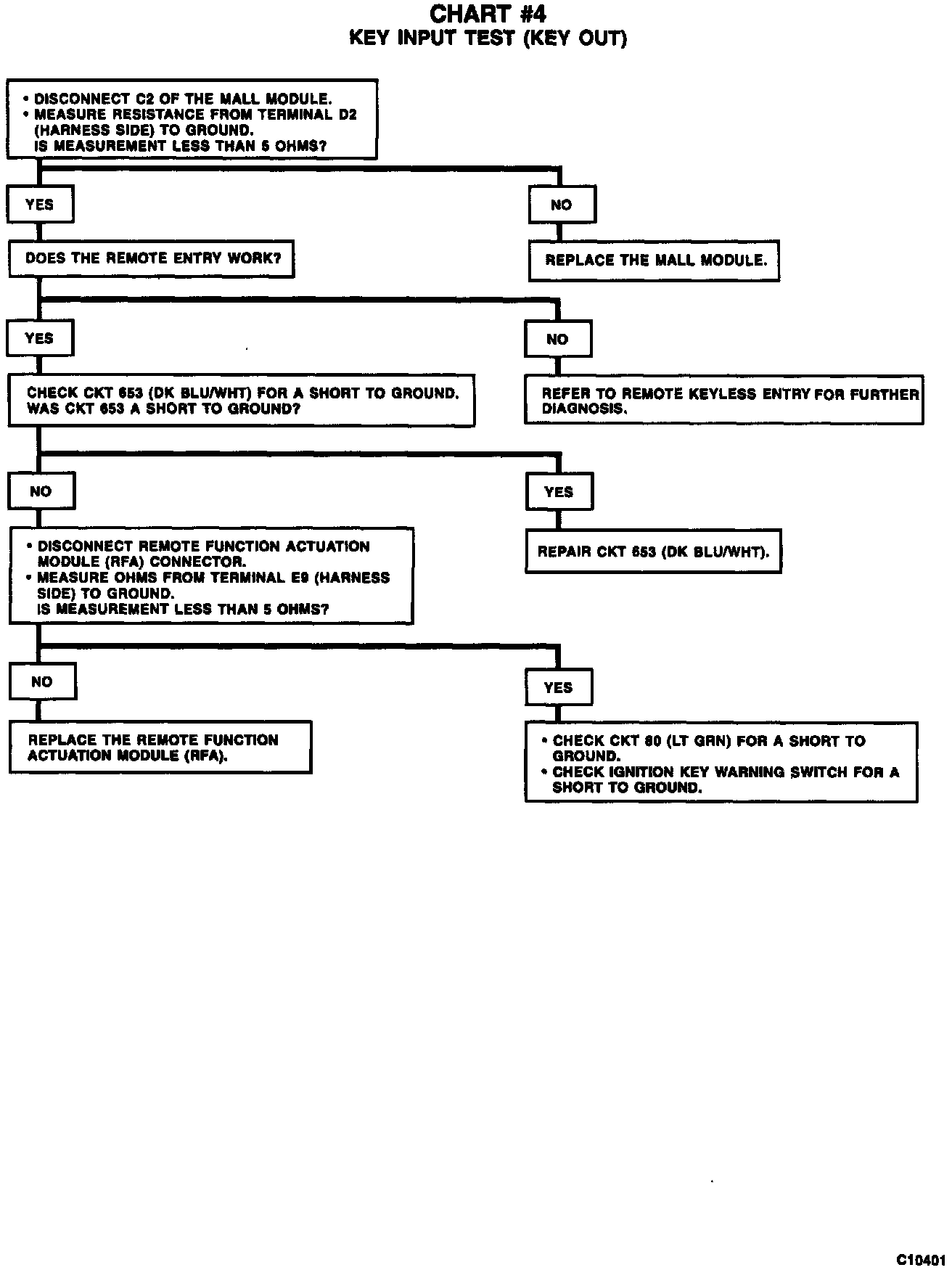

Chart 4 Key Input Test (Key Out)

Chart #4 Key Input Test (Key Out):
