Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
With Clutch Cycling Orifice Tube (CCOT)
>>

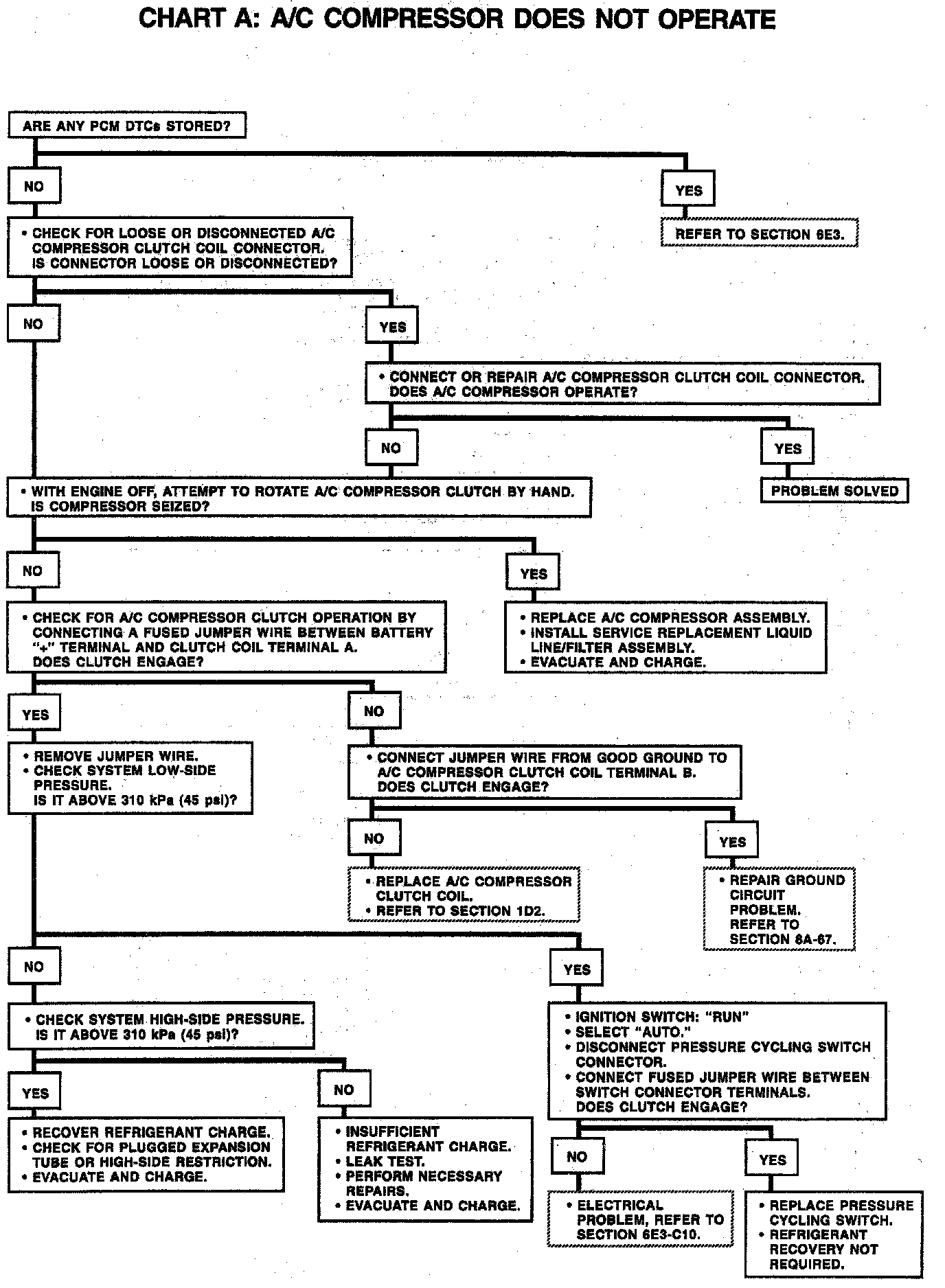

Chart A A/C Compressor Does Not Operate
Chart A A/C Compressor Does Not Operate
