Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Symptom Isolation Tree - Dual Zone Air Conditioning

Symptom Isolation Tree - Dual Zone Air Conditioning

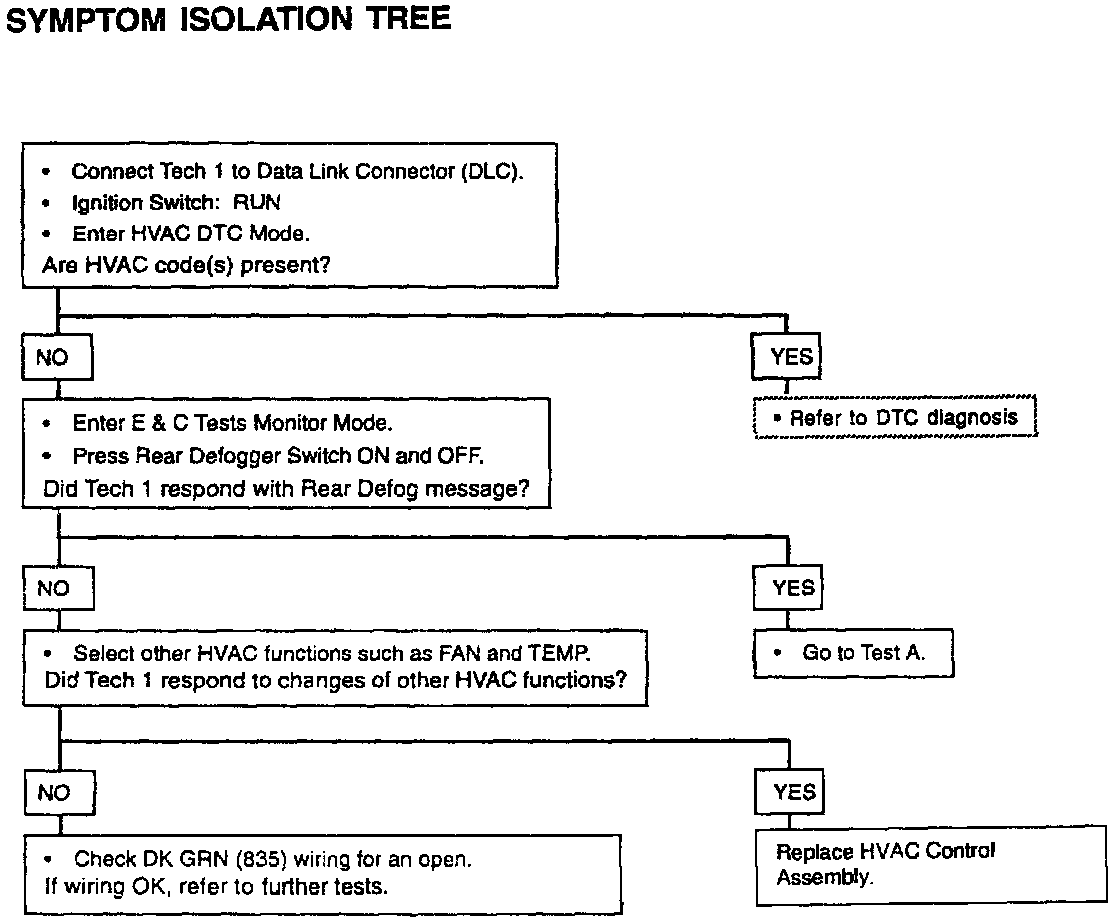

Diagnostic Chart:
